Developing large applications is a complex process and the assistance of
adequate programming tools is always welcome. Not surprisingly, there are
numerous commercially available tools for this purpose. Visual debuggers,
profilers, data analysis, and visualization packages are integral parts of the
workstation environments of scientists and engineers. The situation is
different for high-performance, parallel, or distributed architectures.
Performance tuning, debugging, and data analysis are more difficult, and yet
tools that are simultaneously sustainable, highly functional, robust, and easy
to use for these purposes are not widely available to the HPCC arena. This is
partially due to the difficulty of developing sophisticated, customized systems
for what is a relatively small part of the worldwide computing enterprise. If
we consider the entire computing market, the user base of different types of
computing can be illustrated as a pyramid with a narrow top and much wider
base. HPCC technologies have been developed at the top of the computing
pyramid, mostly by federally funded organizations where moving down into a
broader user base was encouraged [Fox96]. However, the results have never been
completely satisfactory due to the lack of common open interfaces among
personal computers with Windows-based user interfaces and Unix workstations.
Even if we had HPCC programming tools, we would still have problems with
some types of applications, specifically metacomputing
applications (meta-applications). There are many definitions of “metacomputing”
whose origin is believed to have been the CASA project. Larry Smarr, the NCSA
director, defined it as “the use of powerful computing resources transparently
available to the user via a networked environment,” and he is generally
credited with popularizing the term. We define metacomputing as “a means of integrating legacy codes into distributed
environments and providing the user with seamless access to remote resources.”
We consider the metacomputing environment to be a “computational grid”
[HPccGridBook] that gives dependable, consistent, and seamless access to
computational or remote resources. A computational grid is a dynamic
environment that any type of computational resource can join or leave.
“Meta-application” is usually an interdisciplinary application that works on a
computational grid and needs heterogeneous machines, scientific instruments,
archival storage, visualization, and multiple users working together.
Real-world systems bring many computational complexities to software
developers to model them. A metacomputing
application needs not only a substantial number of cycles, but also the use of
heterogeneous models and various hardware and software resources with which to
implement the various parts of the solution. However, there is little software
support available for incorporating such heterogeneous resources into a virtual
program. The resulting model is one in which an application consists of

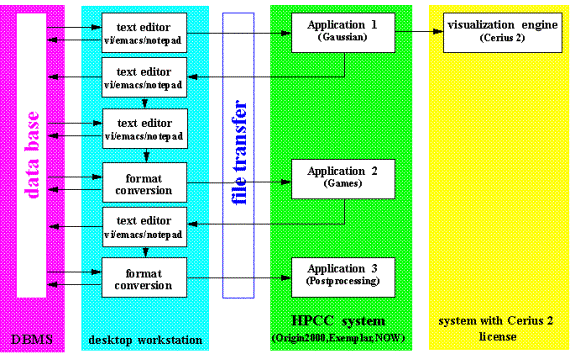

distributed data and individual programs (scientific algorithms or database and
visualization servers), where files are used to transfer data from one
component to another. There is also a configuration problem where the user has
to manually start components separately on various machines and create
connections (data and control) between components. There is little software in
the HPCC community for configuring such a collection of components into a
single virtual application (meta-application). The HPCC and metacomputing
research communities have produced remarkable software for various types of
parallel machines as well as software infrastructures for building
meta-applications [FK96globus, LG96legion].
Unfortunately, there is no high-level visual development environment in which
we can use both different parallel machines and commodity machines (WIN/NT PCc)
and clusters (PC or workstation clusters) as one virtual machine to solve
meta-applications.

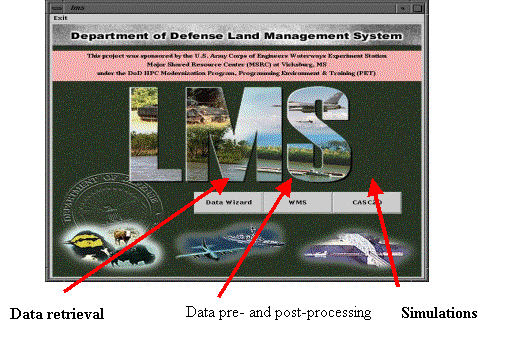

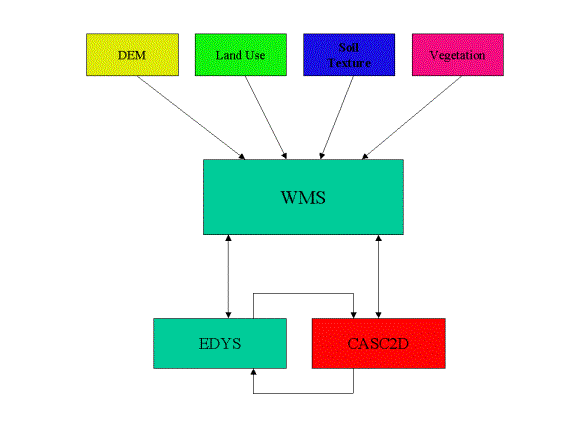

For example, various DoD and DoE-funded projects have produced multiple

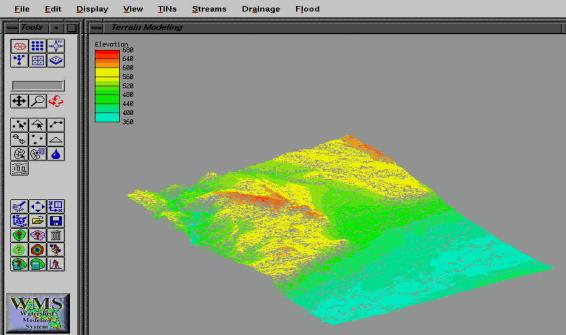

ecosystem management/modeling tools such as Terrain Modeling and Soil Erosion
Simulation, Ecological Modeling for Military Land-Use Decision Support,
Watershed Modeling System, etc., which are really legacy codes written in
different languages and possibly working on different machines. Managing land
and water resources is a challenging task that needs an integrated modeling/decision
support environment capable of simulating atmospheric-surface/water-groundwater
connectivity, cleaning and rehabilitating contaminated sites, managing coastal
zone, watershed, and riverine resources, etc. Even though these modeling tools
help land and water resource managers, they currently are disconnected codes
that must be united into an integrated framework to achieve their highest
productivity. We emphasize that this integrated framework is the computational

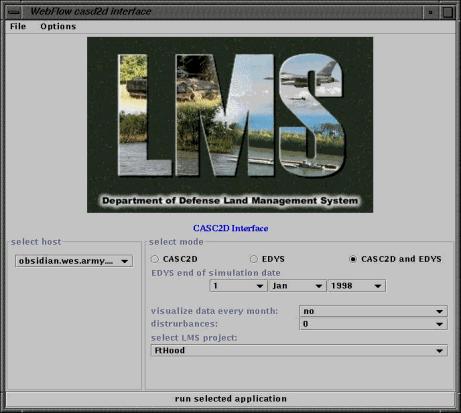

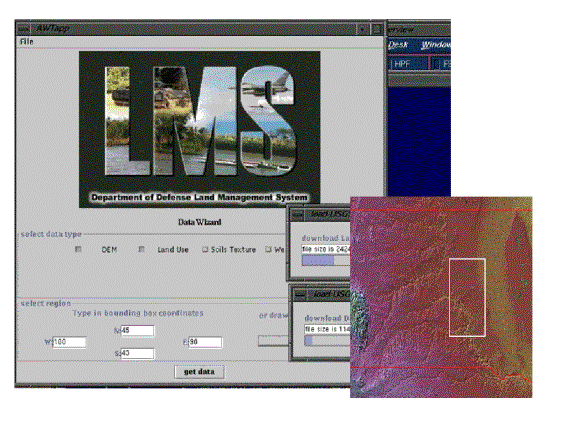

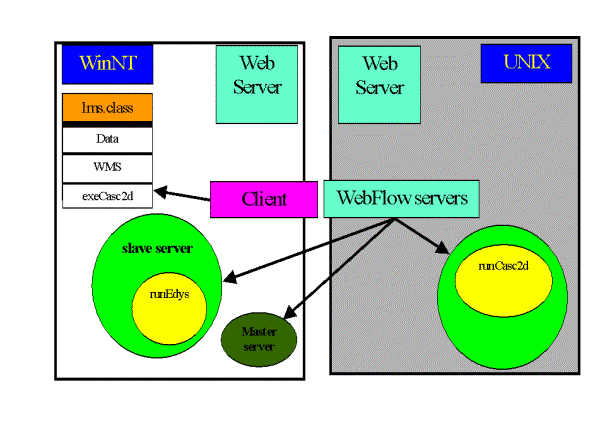

grid we must establish. Therefore, a new initiative, the Land Management System
(LMS), has begun to design, develop, support, and apply an integrated
capability for the modeling and decision support technologies needed for
applications relevant to the management of DoD land, water, and airspace. The
most important decision to be made here is whether or not we are going to
provide an environment that brings relevant science and technology to DoD land
managers in a complete and responsive manner. We have to use existing diverse
investments in science and technology (commodity software) to design an
evolutionary and scalable computational grid environment that gives a uniform
point of access to both scientists and managers so that we can maximize
synergism between them. Our grid
environment allows us to develop protocols for model-to-model and model-to-data
connectivity so that new technology investments in modeling and simulation,
basic science, and information technology will seamlessly integrate with new
data collection, assimilation, and management activities.
This dissertation proposes and develops Gateway, an integrated
environment for High Performance
Commodity Metacomputing (HPCM). We consider the contributions of this work to
be the following:
·
Gateway provides
an integrating layer such that user-defined front ends and high-performance
computing or commodity back-end elements (database, visualization servers and
instrumentation server, and directory server, etc.) can be plugged dynamically
into Gateway.
·
Gateway makes

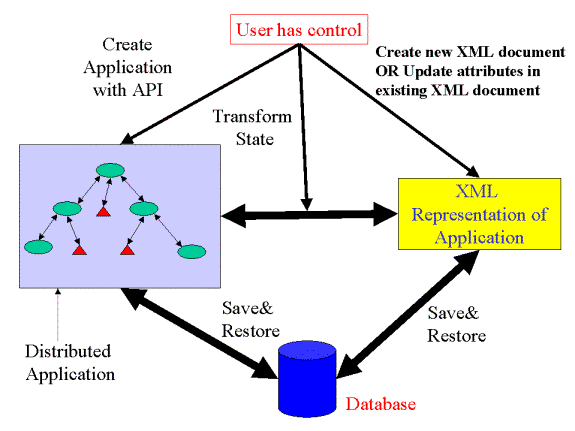

it possible to configure and create the hierarchical meta-application across
heterogeneous machines through the use of Gateway API or by preparing and
introducing one’s own abstract job specification in XML to the Gateway. After
starting the meta-application, it gives the user full control in running the
application and saves and restores its distributed state with industry-standard
XML.
·
Gateway allows

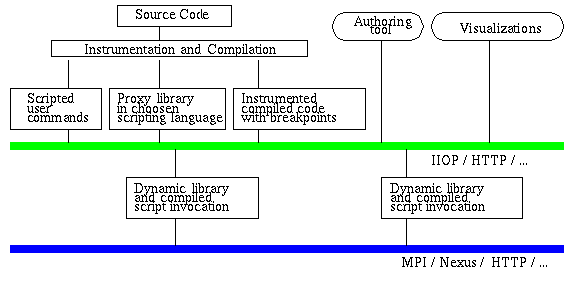

source-level debugging and monitoring of each component of the application if a
malfunctioning component is found. There are currently a few tools that aid in
debugging the distributed application.
·
Gateway permits legal program
statements to be interpreted in the same language as the component and thus
facilitates the dynamic prototyping of complex software systems.
·
The user can easily dynamically attach his
metacomputing, visualization, and database or batch job submitter services to
Gateway system, and individual components in the system can use it immediately.
·
One unique feature of the Gateway system combines
high-performance services with commodity computing tools without sacrificing
high performance.
·
Security and transaction protocol can be easily added
into the Gateway system simply by
putting these policies into proxy objects for each individual remote
component. We already have the facility for generating necessary JDBC calls for
component attributes and automatically storing and restoring the component
state from/to the database.
·
The Gateway system provides a server-side,
object-collaboration framework and also permits TANGO [Tango97SIAM], a
client-side interactive collaboration system, to be plugged into Gateway.
We followed our new strategy of High-Performance Commodity Computing
(HPcc) [HPCCEuroPar98Gf] to
construct the Gateway framework.
HPcc builds HPCC programming tools on top of the remarkable new software
infrastructure being built for the commercial web and distributed object areas.
This leverage of a huge industry investment delivers tools naturally with the
desired properties, with the one (albeit critical) exception that high

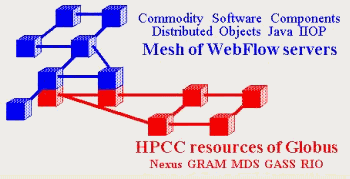

performance is not guaranteed. The user can build his metacomputing environment

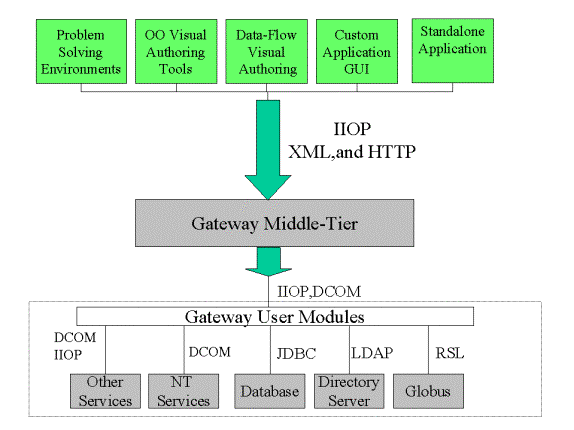

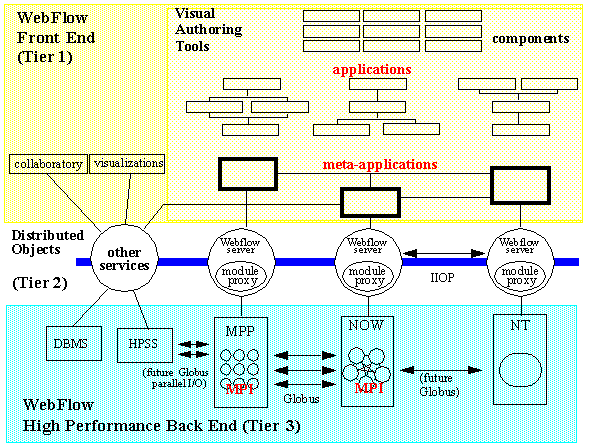

as a multi-tier architecture that has a Web-based visual front-end and a
middle-tier consisting of multiple Gateway servers and back-end modules. We add
high performance to commodity systems with a Globus metacomputing toolkit as
the backend. This three-tiered system architecture is very similar to
Enterprise JavaBeans (EJB) architecture.
We performed two experiments to
create Gateway. First, we built the DARP (Data Analysis and Rapid Prototyping
system) system, an integrated program-development environment. DARP helps the
user build a fine-grained meta-application and gives full control on remote
applications. Second, we
participated in developing and extending WebFlow,
the primitive version of Gateway with other NPAC project
members. Finally, we constructed Gateway based on these experiments.
We performed three applications of Gateway: Quantum Simulation (QS) and
Land Management System (LMS) described above, which are coarse-grained

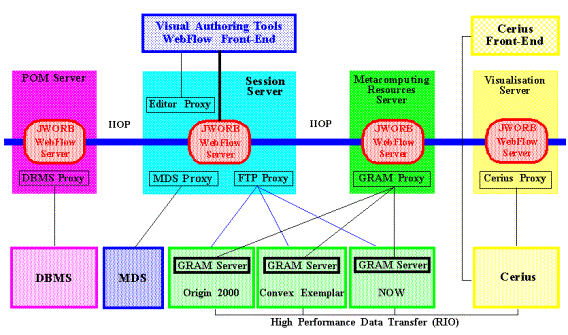

meta-applications. The last one is “seamless access” infrastructure to HPCC
resources, which has a three-tiered architecture whose middle tier is Gateway.
The middle-tier was based on the commercial distributed-objects
technology, CORBA, and works on the CORBA product of any ORB vendor. We
especially benefited from JavaBeans, Enterprise JavaBeans (EJB), the CORBA
component and multiple interfaces specifications, and adapter and delegation
design pattern.
UNICORE provides seamless and secure access to distributed computing resources
using the World Wide Web. It has a three-tier architecture similar to that of
Gateway. In tier one of the applet, Job Preparation Agent (APA), the user
prepares an Abstract Job Object (AJO) from some group of Java abstract classes
and sends it to the middle tier, the UNICORE site, (which operates a gateway
running the https server). The middle tier includes a security servlet where
the user’s certificate is authenticated and mapped to the local Unix userid.
The Network Job Supervisor (NJS) interprets AJO, possibly using Java reflection
mechanisms, and creates a job for the third tier, the local Resource Management
System (RMS) or forwards sub-jobs to other UNICORE sites. We provide the facility
both to prepare more flexible XML documents to construct abstract jobs and to
interactively construct user jobs through the Gateway API.
WebSubmit [WebSubmit], a product of the National Institute
for Standards Technology (NIST), is similar to UNICORE in that it is a
mechanism for obtaining a seamless interface to computational platforms using
the web. Instead of being Java-based, it uses more traditional CGI scripts,
mainly based on Tcl. Tasks to be submitted are generated in application- and
platform-specific format at the time of creation. Job consignment and result
delivery are handled as a single (possibly long) transaction. Currently, the
implementation is specific to the LoadLeveler batch subsystem.
Legion [LegionACM97] is an object-based project for developing
software in support of a “world wide virtual computer.” The project envisions
a system in which a user sits at a Legion workstation and has the illusion of a
single, very powerful computer. When the user invokes an application on a data
set, it is Legion's responsibility to schedule application components
transparently to processors, manage data transfer and coercion, and provide the
necessary communication and synchronization. System boundaries, data location,
and faults are to be made invisible. Since the user should not be aware of specific physical resources comprising the virtual
metacomputer, this requires Legion itself to locate, schedule, and synchronize
the necessary resources at run time. Legion proposes to establish its own model
for security, allowing each user to establish security restrictions on an
object basis. It would appear that Legion is a very ambitious project at the
forefront of computer science.
Globus [GlobusIntlJ97] is a large U.S.-based project that is
developing the fundamental technology needed to build computational
grids-execution environments that enable an application to integrate
geographically distributed instruments, displays, and computational and
information resources. As with the Legion project, the primary focus of Globus
is to combine distributed resources into a virtual metacomputer in support of
grand challenge (possibly parallel) problems. This implies a need to
synchronize access to resources at run time and to support, in the interest of
bandwidth availability, message passing among components of the application
over a network connection under the control of Globus components.
Our main intent in this
thesis is to build a user-friendly, Web-based metacomputing environment. We
used the Globus toolkit whenever we needed high performance in the back-end
(third tier). But as front-ends for different problem domains can be plugged
into the Gateway system, our Gateway middle tier is generic enough that any
low-level (Globus), object-based (Legion), or some other type of metacomputing
toolkit can be interchanged with each other. Because we follow a
commodity-computing model (HPcc), we strongly believe in using whatever
software is available for solving any problem.
One of the distributed systems most similar to Gateway is
Sun Microsystems’ JINI [JINIWeb] where main goal is to create a new distributed
computing architecture. It is an object-oriented framework that embodies a
model of how devices and software inter-operate as well as how distributed systems
function. The infrastructure consists of two main components: “Discovery and
Join” and “Lookup’. Discovery and Join is a two-phased mechanism whereby a
device or application identifies itself to the network. First, the entity
broadcasts a discovery package that contains sufficient information to enable
the network to start a dialogue with the entity that has just joined. Second,
once acknowledged, the entity can join by sending a message containing details
about its own characteristics. Lookup is a component that stores information
about Jini-registered devices and applications. Clients using Jini use Lookup
to find the services that they wish to access. The distributed programming
model used by Jini promotes three technologies: leasing, distributed transactions,
and distributed events. Leasing is when an object negotiates the usage of a
service for a period of time. Communication within Jini is based on Remote
Method Invocation (RMI). The Jini-distributed programming model is based on
the JavaSpaces model, which is itself based on Linda.
Jini supports the distributed model
based on the flow of objects among processes, as opposed to method calls.
Gateway adopts the publish-subscriber model for services, but Jini uses the
template-matching model to find an entry, E, in JavaSpace through a lookup
operation with an appropriate template, T. The template T can match an entry E
in the space only if the field values of T are matched exactly by the value in
the same field of E. Gateway identifies services with just a simple name that
the user can choose. Whenever a service is attached to or detached from the
Gateway system, all of the registered objects in the Gateway system are
notified.
The
event model of Jini is similar to Gateway’s event model. Whenever a Jini client
writes an entry matching a particular template written into JavaSpace,
registered listeners are automatically notified. Jini’s event model supports
the interposing of a third-party object between the event producer and the
consumer. This intermediary object can behave as mailbox, store-and-forward, or
notification-filter agent. Our Gateway supports these types of agents in
exactly the same way. All events fired by any object in the Gateway system are
captured by the parent context of this object and forwarded (“push” event type)
or kept (“pull” event type) until the event consumer explicitly picks it
up.

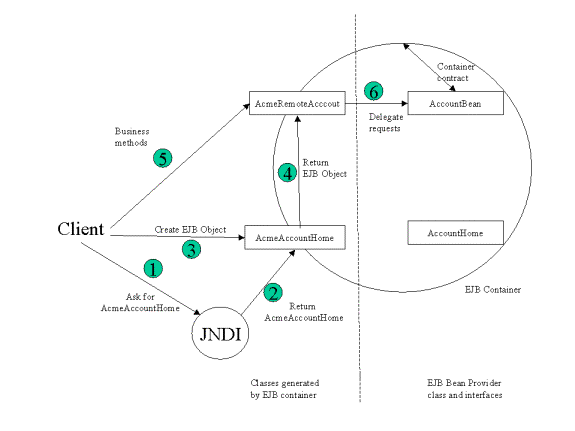

Another emerging technology is the server component
model, Enterprise JavaBeans EJB
[EJBWeb]. The Gateway system has some similarities to EJB. Gateway is a generic

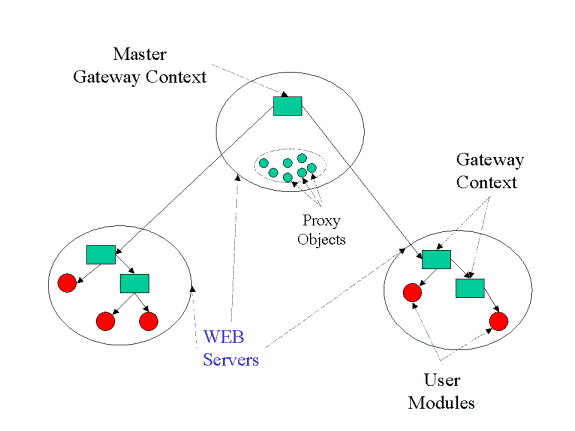

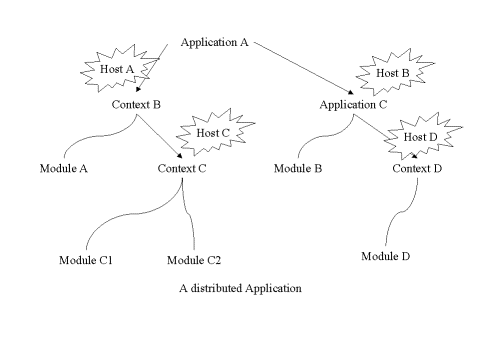

middle tier consisting of a tree of two types of components: user modules and
context (a container that keeps other containers and user modules). Gateway, like EJB, supports many sessions or
users simultaneously, and both Gateway and EJB (last version 1.1) chose XML for
a persistency model. As the user puts his own EJB objects into the EJB
container, Gateway users put user modules into Gateway contexts. Both EJB and
Gateway generate an automatic code to perform serialization in XML. The EJB
object and general proxy intercept client requests of EJB and Gateway,
respectively. Currently, unlike EJB, we do not have a transaction model. The
EJB container and the Gateway contexts for EJB and Gateway systems,
respectively, handle security. Gateway has a distributed event model, while in
the current EJB 1.1 specification EJB does not.
DISCWorld [DiscWHPCN97] develops a middleware
infrastructure for distributed high-performance computing applications. The
Distributed Information Systems Control World (DISCWorld) is a smart middleware
system designed to integrate processing and storage resources across wide-area
heterogeneous networks, exploiting broadband communications where available.
NetSolve [Netsolve97IJSP] is a client-server application that enables
users to solve complex scientific problems remotely. This system allows users
to access both hardware and software computational resources distributed across
a network. NetSolve searches for computational resources on a network, chooses
the best one available and, using “retry” for fault-tolerance, solves a problem
and returns the answers to the user. Although Netsolve tries to solve simple
problems, Gateway solves both simple and complex problems that may need
applications consisting of many user modules or other sub-applications.
We have another related
project, PAWS [PAWSWeb] (Parallel Application WorkSpace), that provides a
framework for coupling parallel applications. The coupled applications can be
running on different machines, and the data structures in each coupled
component can have different parallel distributions. PAWS can help us to
connect different Gateway applications. As stated earlier, Gateway can support
the simultaneous running of many applications.
We have other NPAC research that has culminated
into the Virtual Programming Laboratory (VPL) [VPL97ConcJ], that is a Web-based
virtual programming environment based on a client-server architecture. It can
be accessed from any platform (Unix, PC, or Mac) using a standard Java-enabled
browser. Software delivery over the Web imposes a novel set of constraints on
design. It outlines the tradeoffs in a design space, motivates the choices
necessary to deliver an application, and details the lessons learned in the
process. VPL facilitates the development and execution of parallel programs.
The initial prototype supports high-level parallel programming based on Fortran
90 and High-Performance Fortran (HPF), as well as explicit low-level
programming with the MPI message-passing interface. Supplementary Java-based
platform-independent tools for data and performance visualization are integral
parts of VPL. Pablo SDDF trace files generated by the Pablo performance
instrumentation system are used for postmortem performance visualization.
VPL is excellent work that
was based on emerging Web technologies a couple of years ago, and it is still a
very good Web-based system that anybody can assume as a starting point. We
derived much stimulating motivation from VPL.
The SUN client-side Java component model, JavaBeans [JavaBeansWeb], also influenced our Gateway project. We
adopted the JavaBeans model at the beginning, but later removed its
introspection mechanism, detecting attributes from its related get/set methods
and events from its corresponding add/removeXListener methods for event X. We
designed an introspection model on an XML document that is generated
automatically for user modules with the help of IR (Interface Repository). We

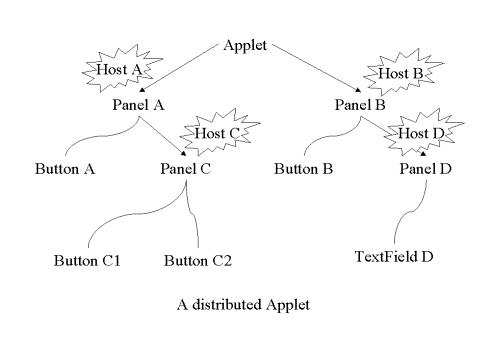

were also guided by the JavaBeans containment model (JavaBeans Glasgow
specification), but in Gateway, we have Gateway context, distributed across
machines, as opposed to JavaBeans context.
Another related work is SCIRun [SciRun97Press],
a scientific programming environment that permits interactive construction,
debugging, and steering of large-scale scientific computations. SCIRun supports
only data-flow models and allows scientists to modify the simulation parameters
interactively, but our Gateway supports both event-driven and data-flow models.
The computational steering aspect of SCIRun includes only user-defined
parameters, but the DARP functionality of Gateway gives more detailed steering
for user-defined variables and all of the program variables defined in any
program segment. SCIRun uses only local computing resources, while Gateway can
also use distributed objects.
In Chapter 2 we explain what we mean by HPcc (High Performance Commodity
Computing) and HPCM (High Performance Commodity MetaComputing). Chapter 3

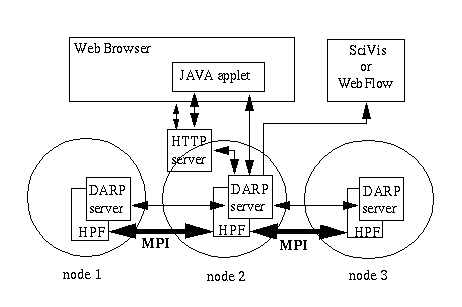

discusses the TCP/IP client-server-based DARP (Data Analysis and Rapid
Prototyping) architecture. Chapter 4 explains the architecture of WebFlow,
early stage of the Gateway, and Chapter 5 discusses a new
distributed-object-based Gateway middle tier that fully orchestrates a
distributed meta-application consisting of various components. Chapter 6
explains two applications of Gateway such as Quantum simulations (QS) and LMS
with which we evaluate our Gateway system. Chapter 7 provides conclusions
derived from our experiments and an outline of our plans for future work.
We believe that industry and the loosely organized worldwide collection
of commercial, academic, and freeware programmers are developing a remarkable
new software environment of unprecedented quality and functionality. We believe
this environment can benefit HPCC in several ways by allowing the development
of both more powerful parallel programming environments (DARP) and new
distributed metacomputing systems (WebFlow and Gateway) [HpccGridBook, HPCCEuroPar98Gf]. We abstract these to a three-tier model with largely independent
clients connected to a distributed network of servers that host various
services, including object and relational databases and, of course, parallel
and sequential computing. High performance can be obtained by combining
concurrency at the middle server tier with optimized parallel back-end
services. The resultant system, HPcc-High-Performance Commodity Computing,
combines the needed performance of large-scale HPCC applications with the rich
functionality of commodity systems. In the second section we define “commodity
technologies” and explain the ways they can be used in HPCC. In the third
section, we define an emerging HPcc

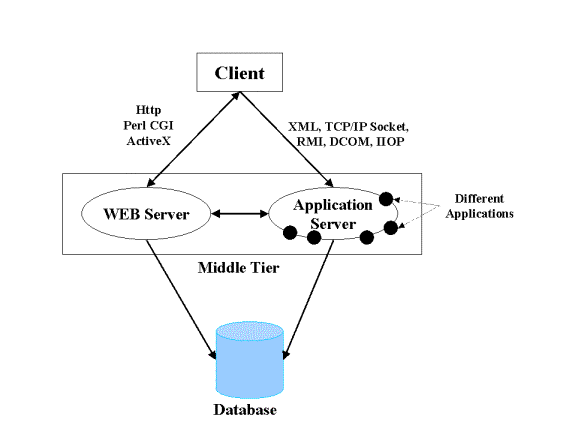

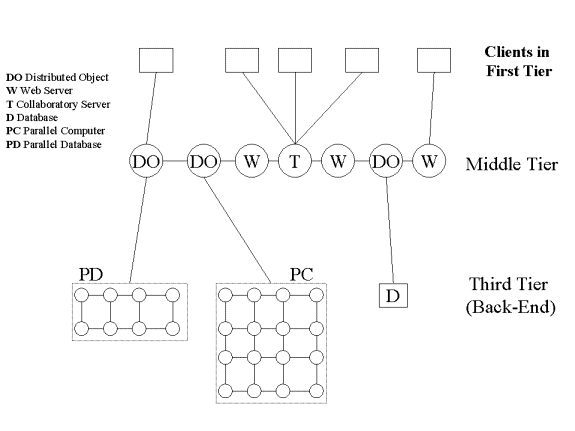

architecture in terms of a conventional three-tier commercial computing model.
The Web is not just a
document-access system supported by the somewhat limited HTTP protocol. Rather,
it is a distributed-object technology that can build general multi-tiered
enterprise intranet and internet applications.
There are many driving
forces and many aspects to HPcc
architecture, but we suggest that the three critical technology areas are the
Web, distributed objects, and databases. These are being linked, and we see
them subsumed in the next generation of "object-web" technologies,
illustrated by the recent Netscape and Microsoft browsers. Databases are older
technologies, but their linkage to the web and distributed objects is
transforming their use and making them more widely applicable.
In each commodity technology
area we have impressive and rapidly improving software artifacts. As examples,
we have at the lower level a collection of standards and tools such as HTML,
HTTP, MIME, IIOP, CGI, Java, JavaScript, Javabeans, CORBA, COM, ActiveX, VRML,
dynamic Java servers, and clients that include applets and servlets. The new
W3C base technologies include XML, DOM, and RDF. At a higher level of
collaboration, security, electronic commerce, multimedia, and other
applications/services are rapidly developing using standard interfaces or
frameworks and facilities. This emphasizes that we have a set of open
interfaces enabling distributed modular software development. These interfaces are
at both low and high levels, and the ones at high levels generate a very
powerful software environment in which large preexisting components can be
quickly integrated into new applications. In our work, we designed and built an
integrated environment called Gateway
that facilitates the construction of large applications from built-in user
modules.
We believe that there are
significant incentives for building HPCC environments in a way that naturally
inherits all the commodity capabilities so that HPCC applications can benefit
from the impressive productivity of commodity systems. NPAC's HPcc activity is
designed to demonstrate that this is possible and useful so that one can
simultaneously achieve both high performance and the functionality of commodity
systems. We demonstrated this with a couple of applications: seamless access to
HPCC resources, Landscape Modeling Simulation (LMS) and Quantum Simulation (QS)
which will be explained in Chapter 7.
Note that
commodity technologies can be used in several ways. XML and Web servers will
help customization and installations of distributed objects and servers across
the Internet. Enterprise JavaBeans, RMI, COM, and CORBA will accelerate the
usage of distributed-object technology.
However,
our main target is not such pointed solutions but rather adapting the
architecture of commodity systems for high-performance parallel and distributed
computing. Even though we have seen over the last 30 years many other major
broad-based hardware and software developments, they have not had a profound
impact on HPCC software. Based on our many experiments, we strongly believe
that HPcc architecture gives us a
world-wide/enterprise-wide distributing computing environment. Previous
software revolutions could help individual components of an HPCC software
system, but HPcc architecture is the
backbone of a complete HPCC software system. To achieve our goal, we added high
performance to this architecture and in this way inherited a
multi-billion-dollar investment and what is, in many respects, the most
powerful and productive software environment ever built.
We start
with a common modern-industry view of commodity computing with the three tiers
shown in Figure 2.1. Here we have customizable client and middle tier systems
accessing "traditional" back-end services such as a relational
database. A set of standard interfaces allows a rich set of custom applications
to be built with appropriate client and middleware software. As indicated in
Figure 2.1, the client sitting in the first tier can access to the middle tier
via URL, COM/CORBA request, low-level socket, XML-based protocol, or a CGI
program. The middle tier can be a simple server waiting on a port, COM/CORBA
server(s) or a group of CGI programs written usually in PERL and other
scripting languages. Accessing to a database at the back end is achieved
through a JDBC interface. The database keeps the attribute values of
application server objects as well as other related information.
Figure.
2.1. Industry Three-Tiered View of Enterprise Computing
The
rapidly evolving commercial architecture is exploring several co-existing
approaches in today's distributed information system. The most powerful
solutions involve distributed objects. There are three important commercial
object systems: CORBA, COM/DCOM, and Enterprise Javabeans. We envision the
possibility of coming up with an enterprise commodity architecture that allows
the use of many different technologies at the same time. Actually, we realized
this with our sophisticated and extendible Gateway component model that will be
explained in Chapter 5.
Enterprise
JavaBeans is a "pure Java" solution-cross platform, but, unlike
CORBA, not cross-language! Legion is an example of a major HPCC-focused
distributed object approach; currently, it is not built on top of one of the
three major commercial standards. The HLA/RTI standard for distributed
simulations in the forces-modeling community is another important
domain-specific, distributed-object system. It appears to be moving toward
integration with CORBA standards.
Although a
distributed-object approach is attractive, most network services today are
provided in a more ad hoc fashion. Originally, these services were
client-server with proprietary network access protocols like TCP/IP. Later,
web-linked databases and enterprise intranets naturally produced a three-tier
distributed service model, with an HTTP server using a CGI program to access
the database at the backend. There is a trend toward using Web servers with the
servlet mechanism for the services, but today we can build databases as
distributed objects with a middle-tier Enterprise Javabean or CORBA using JDBC
to access the backend database. We can summarize this evolution as follows:
client access method middle tier object or executable
Java sockets --> Java program (low-level network
standard)
HTTP --> Java servlet
or CGI script
IIOP, RMI, or COM --> Distributed objects (high-level
network standard)
As shown
in Figure 2.2, we see today a "Pragmatic Object Web" mixture of
distributed service and distributed object architectures. CORBA, COM, Javabean,
HTTP Server + CGI, Java Server and servlets, databases with specialized network
accesses, and other services co-exist in the heterogeneous environment with
common themes but disparate implementations. Our NPAC's HPcc strategy involves
building this architecture (Figure 2.2) and adding high performance in the
third tier to this system.
Figure 2.2. Today's Heterogeneous
Interoperating Hybrid Server Architecture
We also
believe that the resultant architecture will be integrated with the web so that
the latter will exhibit distributed-object architecture. More generally, the
emergence of IIOP (Internet Inter-ORB Protocol) and the realization that CORBA
is naturally synergistic with Java is starting a new wave of "Object
Web" developments that could have profound importance. The resultant
architecture shows a small object broker (a so-called ORBlet) in each browser
as in Netscape. Most of our remarks are valid for all these approaches to a
distributed set of services.
We used
this service/object-evolving three-tier commodity architecture as the basis of
our HPcc environment. We need to naturally incorporate (essentially) all
services of the commodity web and use its protocols and standards wherever
possible. We insist on adopting the architecture of commodity distribution
systems, because complex HPCC problems require the rich range of services
offered by the broader community systems. Porting commodity services to a
custom HPCC system requires continued upkeep with each new upgrade of the
commodity service. By adopting the architecture of commodity systems we make it
easier to track their rapid evolution and we expect it will give high
functionality to HPCC systems, which will naturally track the evolving
Web/distributed object worlds. This requires us to enhance certain services to
obtain higher performance and to incorporate new capabilities such as high-end
visualization (e.g., CAVEs) or massively parallel systems where needed. This is
the essential research challenge for HPcc, for we must not only enhance
performance where needed but do it in a way that is preserved as we evolve the
basic commodity systems. We certainly have demonstrated clearly with our
applications of QS, LMS, and Seamless Access that this is possible through deploying our
distributed object-based Gateway
middle tier. In order to achieve this, we exploit the three-tier structure and
keep HPCC enhancements in the third tier, which is inevitably the home of
specialized services in object-web architecture. This strategy isolates HPCC
issues from the control or interface issues in the middle layer. We have successfully
built an HPcc environment that
offers the evolving functionality of commodity systems without significant
re-engineering as advances in hardware and software lead to new and better
commodity products.
Returning
to Figure 2.2, we see that it elaborates Figure 2.1 in two natural ways. First,
the middle tier is promoted to a distributed network of servers; in the
"purest" model these are CORBA/COM/Enterprise JavaBean object-web
servers, but any protocol-compatible server is obviously possible. This middle-tier
layer includes not only networked servers with many different capabilities
(increasing functionality), but also multiple server instantiations to increase
performance on a given service. The use of high functionality but modest
performance communication protocols and interfaces at the middle tier limits
the performance levels that can be reached in this fashion. However, this first
step gives a modest performance scaling, and a parallel (implemented, if
necessary, in terms of multiple servers) HPcc system that includes all
commodity services such as databases, object services, transaction processing,
and collaborators. The next step is applied only to those services with
insufficient performance. Naively, we "just" replace an existing back
end (third-tier) implementation of a commodity service by its natural HPCC
high-performance version: specifically, we used globus, MPI, and HPF.
2.4 Comparison of three-tiered and two-tiered (client-server)
architecture models
Even
though the programming effort for a client-server is much easier, it has many
disadvantages compared with three-tier systems. For applications that thousands
of clients connect to, a two-tier system doesn’t scale well and may not take
the benefits of multithreading. A three-tier system solves the scalability and
multithreading problems by pushing them down into the middle tier. In two-tier
systems, client code is mixed with user interface code and some of the actual
server codes and therefore has fatty code. Three-tier systems have thin client
code and put all of the business methods of the server into the third tier. The
coordination codes for these methods and the codes for allocation of resources
are put into the middle tier. The security and transaction policies are
inserted into the middle tier in three-tier systems, as opposed to server codes
in two-tier environments. The Java-security sandbox doesn’t allow connecting to
the host, other than the applet host, in two-tier systems, but introducing a
middle tier will solve this problem in three-tier systems.
The development of large
distributed/parallel applications is a complex process. We face the problem of
software integration, as different software components often follow different
parallel programming paradigms. On the other hand, we witness a rapid progress
of Web-based technologies that are inherently distributed, heterogeneous, and
platform-independent. Of particular interest are the definition and
standardization of interfaces that enable cross-platform software
interoperability.

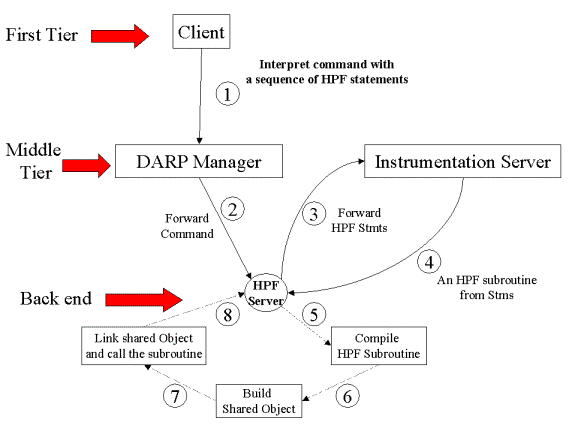

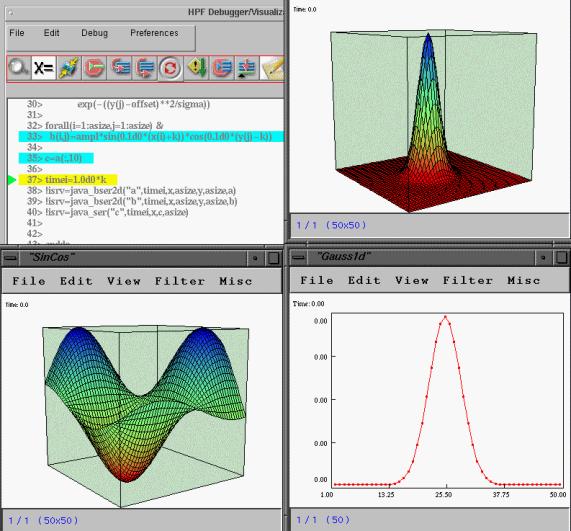

The integration of compiled
and interpreted HPF gives us an opportunity to design a powerful application
development environment targeted for high-performance parallel and distributed
systems. This DARP environment includes a source-level debugger, data
visualization and data analysis packages, and an HPF interpreter. The
capability of alternating between compiled and interpreted modes provides the
means for interaction with the code at real time while preserving an acceptable
performance. Thanks to the interpreted interfaces typical of Web technologies
we can use our system as a software integration tool.
The fundamental feature of
our system is that the user can interrupt execution of the compiled code at any
point and get an interactive access to the data. For visualizations, the
execution is resumed as soon as the data transfer is completed. For data
analysis, the interrupted code pauses and waits for the user's commands. The
set of available commands closely reproduces functionality of a typical
debugger (setting breakpoints, displaying or modifying values of variables,
etc.). However, a unique feature of our system is that it can issue HPF
commands to modify values of distributed arrays. In this sense, our system can
be thought of as an HPF interpreter. For more complex data transformations, the
user can dynamically link precompiled functions written in HPF or other
languages, which enables rapid prototyping. In particular, parallel libraries
that do not necessarily follow the HPF computational model can in this way be
integrated dynamically with the HPF code through the HPF extrinsic interface.
Implementing proxy libraries
in Java further increases the functionality of our system, allowing us to
design and develop the DARP system as a three-tiered system rather than a
traditional client-server one. Now we can treat components of the DARP system
as distributed objects to be implemented as CORBA ORB-lets or JavaBeans. We use
this mechanism for dynamical embedding of calls to a visualization system (such
as SciViz [Sciviz98ACMJava]) or for
coupling this system with the WebFlow [WebFlow97Furm].
This section is organized as follows. In Section
3.2 we discuss the overall architecture of the system in the context of the
High-Performance Commodity Computing paradigm. Sections 3.3-3.6
describe the three-tiered design of the DARP system and its components: the
tier-2 DARP server, the instrumentation server, DARP front-end and HPF
interpreter, respectively. Section 3.7 demonstrates the integration of the DARP system with the visualization
package, using a proxy library. Finally, in Section 3.8 we give our summary and
conclusions.
3.2 High-Level Architecture of DARP
The design of the DARP
system follows the idea of High-Performance commodity computing (HPcc).
Conceptually, the architecture of this three-tiered system can be described as
follows (cf. Figure 3.1): The DARP system uses an interpreted Web client
interacting dynamically with a compiled code. At this time the system uses an
HPF back end, but the architecture is independent of the back-end language. The
Java or JavaScript front end holds proxy objects produced by an HPF front end
operating on the back-end code. These proxy objects can be manipulated with
interpreted Java commands to request additional processing, visualization, and
other interactive computational steering and analysis.
Figure 3.1. DARP
implementation within HPcc framework
As shown in Figure 3.2, the heart of the DARP system is the DARP
server, which controls the execution of the application. The server accepts
commands from a client implemented as a Java applet. Control over the execution
of an application and interactive accesses to
the data are achieved by a source-level
instrumentation of the code.
Figure 3.2. The architecture of DARP
Since HPF follows a simple
global name space, “data parallel paradigm,” the DARP server can be implemented
simply as an extrinsic HPF LOCAL procedure, in which case the server is part of
the application and comes into existence only after the application is
launched. In this scenario the application code is instrumented in such a way
that the initialization of the DARP server is the first executable statement of
the application. Once initialized, the server blocks the application waiting
for the client to connect. From that point on, the execution is controlled by
the client. Optionally, the initialization of the server may include processing
a script that sets action/breakpoints and forces resuming of the execution
without waiting for the user's commands.
In a general SPMD paradigm this
simplistic implementation of the DARP server is not sufficient because the
client loses control over the application when the code on a single node dies. We therefore extended the server
architecture. Now (Figure 3.3), the manager, which is independent of the
application, accepts requests from the client and multicasts them to all nodes
participating in the computations. The DARP server is a part of the
instrumented HPF application and is replicated over the nodes participating in
the computation. The client communicates only with the DARP manager on a
selected node (Figure 3.3). The DARP manager is a separate server that receives
requests from the front-end user applet and the instrumentation server. In
order for the server to get the user’s request even when the application is
running, the server checks any request at the beginning of the server code.
Remember that the function call to the server is inserted through
instrumentation before each executable program statement. This mechanism gives
full control of the program execution to the user and allows the user to
monitor the updated sequences of any program variable during execution and
suspend, continue, or stop the execution dynamically.

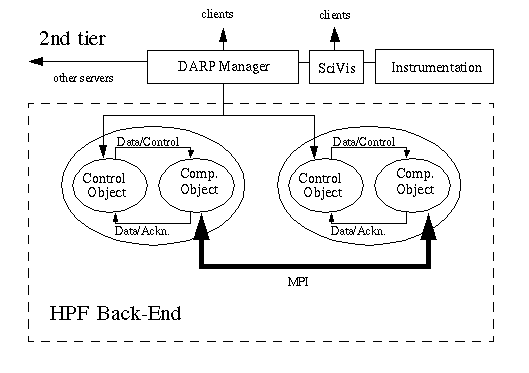

Figure
3.3. Middle-tier DARP manager controls
HPF back end and communicates with other servers
The interprocessor communication required by the
distributed application is not implemented using the Web-based protocols (such
as CORBA IIOP), as is the case for client-manager interactions. Instead, we use
the native HPF runtime support or MPI directly. For meta-computations, in our
approach controlled by a network of managers, we consider replacing low-level
MPI by Nexus[NexusJPDC97] and other services provided by Globus as the
high-performance communication layer.
The instrumentation of the
code involves three steps:
1. Adding server
functions
2. Insertion calls to the
HPF server before each HPF statement
3. Identification of the
types of all variables used in the application
The process is fully
automated and requires no user intervention. A preprocessor that transforms a
valid HPF source code into an instrumented one does the instrumentation. The
instrumented code is, itself, a valid HPF code to be compiled by a generic HPF
compiler.
We built the preprocessor
using the HPF Front End (HPFfe) [HPFfeWeb] developed at NPAC within the PCRC
consortium [PCRCWeb]. HPFfe is based on the SAGE++ system [Sage++94Gannon], which, in addition to
parsing, provides the means to access and modify the abstract parse tree (AST),
the symbol table, the type tables, and source-level program annotations. For
our purposes we developed functions that identify attributes of all variables
used in the HPF application (including the data type and runtime memory
addresses) and operates on the AST to insert variables' "registration"
calls (allowing the server to determine the size and location of the data to be
sent) and calls to the server.
Since HPF is a superset of
Fortran 90 we can apply our preprocessor to any sequential Fortran code,
particularly, to a node code of any parallel application developed in Fortran
that uses explicit calls to a message-passing library such as MPI or PVM. The
capability of processing HPF compiler directives enhances our system in that we
can preserve information on the intended data distributions and assertions on
the (lack
of) data dependencies.
The DARP front end is
implemented as a Java Applet (Figure 3.5). The user interacts with the code
through an interface that closely resembles the interface provided by a typical
debugger. The repertoire of commands includes setting break- and action-points,
stopping/resuming execution of the application (including stepping one
instruction at a time or one iteration of a loop at a time), changing values of
the application's variables, requesting data (including distributed arrays),
dynamically linking and executing shared objects (including codes generated on
the fly by the interpreter), and more. Our prototype implementation supports
three types of commands, of which the first category is data access
commands (Table 1), the second is
prototyping commands (Table 2), and the last one is control commands (Table 3).
Unless otherwise stated in the fourth column of these tables, the user in the
front end needs to submit the chosen processor ID (MIMD case) or no ID (SIMD
case), the specific command tag (in the first column), and input parameters to
the DARP manager, which delegates the request to the processor specified in the
request. In the opposite direction, after the processor has performed the
user’s request, it sends the result (with the ACKCOMMAND command tag) back to
the manager, which finally forwards the result to the applet. If we look
carefully at the return values of the user requests (in the third column of the
tables), we see that we send back all of the information that was sent by the
user. The reason for this symmetry is that our DARP system allows many users to
connect to one running program. To do that, the manager keeps the currently
connected users and whenever it receives a command result from the HPF server,
it multicasts it to the bound users.
Note that since the code is
instrumented on the source level, our "debugger" gives access only to
the source-level data. In particular, we are unable to provide a complete state
of the machine (registers, buffers, etc.) at any given time as many commercial
debuggers do, and as is recommended by the High-Performance Debugging Forum [HPDForumWeb]. Also, since at this time we
exclusively address applications in HPF, we ignore several features necessary
for supporting a more general SPMD paradigm. In particular, we assume that
interprocessor communications are facilitated by a bug-free HPF runtime system.
However, the more advanced implementation of the DARP system with the
independent DARP manager (cf. Section 3.3) makes it possible to control
applications that use explicit message passing. Anyway, the DARP system is not
designed to be a system-level debugger, but to perform such actions as
manipulating large distributed data objects in order to investigate the
convergence and stability of algorithms used in scientific simulations.
Typically, a client-server
architecture is used to implement a portable debugger for distributed systems
(cf. [DAQV96Sth, FalconWeb, Tuchman91Vis, CumulvsWeb
, Panorama93MF,
CH94p2d2]). Our approach is unique
in that we use a three-tiered architecture and can easily integrate our
source-level debugger with the HPF interpreter and a visualization tool that
together comprise a powerful application development environment. Moreover, we
envision that we will have different HPCC codes written by the HPCC community
and we need to use them together to solve highly complex and
computation-intensive applications. Our DARP manager helps to abstract a
parallel application running on multiple nodes into a single application, thus
allowing the user to manipulate an application through the manager, which can
talk to the other managers and servers.
|
Data
Access commands
|
Input
Parameters
|
Return
Value(s)
|
Description
|
|
DISPLAYVARIABLE
|
Variable Name
|
ACKCOMMAND
Received command + Current Line Number(LN) +
My Processor PID +
Error code +
DATADESC
+
DATAVALUE
|
Get the value of program variable, DATAVALUE whose
data description is DATADESC.
|
|
DISARRAYSECTION
|
Variable Name +
Array Section Stmt
|
Same as above
|
Get the array section specified by F90 array
section expression
|
|
SETVARIABLE
|
Variable Name +
DATAVALUE
|
Same as above except last two items
|
Set the value of variable to DATAVALUE
|
|
SETPARVAR
|
Variable Name +
DATAVALUE
|
Same as above except last two items
|
Set the Data parallel(SIMD) array to the value
DATAVALUE
|
Table 1. Data Access commands of HPF server
|
Prototyping
Commands
|
Input
Parameters
|
Return
Value(s)
|
Description
|
|
INTERPRETER
|
Interpreted legal HPF Statement
|
None
|
After receiving , it sends HPF stmt to Instrumentation server
|
|
INST_CODE
|
Created function from user’s interpreted stms to
achieve same affect of these stmsts
|
ACKCOMMAND
Received command + Current Line Number(LN) +
My Processor PID +
Error code +
Interpreted HPF Stmts
|
This command is received from Instrumentation
server which creates function out of user stmts.
|
|
SCIVISENV
|
The host and
port of SciVis server
|
Same as INST_CODE except last
one
|
Set Scivis Host and Port
|
|
SCIVIS_FUNLIST
|
None
|
Same as SCIVISENV plus SciVis function names
|
Send SciVis interface function names
|
|
SEND_LOCALS
|
None
|
Same as SCIVISENV plus local variable names
|
Send local variable names of current execution
point
|
|
ADD_ACTION
|
SciVis function name + LN
|
Same as SCIVISENV
|
Register Scivis function call for this line LN
|
|
DELETE_ACTION
|
Same as just above
|
Same as SCIVISENV
|
Deregister function call
|
|
ACTION_LIST
|
None
|
Same as SCIVISENV plus line numbers of action
points
|
Return line numbers of all action points .
|
|
GET_FUNCTION
|
Line number(LN) and which function
|
Same as SCIVISENV plus arguments of function at LN
|
Returns the argument names of that function
|
|
STORE_CONFIG
|
File name
|
Same as SCIVISENV
|
Stores action or break points and other parameters in specified file
|
|
GET_PROFILE
|
None
|
Same as SCIVISENV plus profile info. For each
program line
|
Returns number of executions and total time for
each line.
|
|
SEND_CONFIGS
|
None
|
Same as SCIVISENV plus config files
|
Returns stored config file names
|
|
READ_PARSE_TREE
|
None
|
Same as SCIVISENV plus parse tree info
|
Returns the parse tree info. Of all project files
|
Table 2. Prototyping commands of HPF Server
|
Control
Commands
|
Input
Parameters
|
Return
Value(s)
|
Description
|
|
PAUSE
|
None
|
ACKCOMMAND
Received command + Current Line Number(LN) +
My Processor PID +
Error code
|
Pause the execution at program line, LN
|
|
PUTBREAKON
|
LN
|
Same as above
|
Put break point at line, LN
|
|
PUTBREAKOFF
|
LN
|
Same as above
|
Remove break point at line, LN
|
|
STEPINTO
|
|
Same as above
|
Go to next line, LN
|
|
STEPOVER
|
None
|
Same as above
|
Go to next line, LN (entering into function calls
if any)
|
|
NSTEPINTO
|
N-the number of steps
|
Same as above
|
Perform N StepInto commands at once
|
|
NSTEPOVER
|
N-the number of steps
|
Same as above
|
Perform N StepOver commands at once
|
|
NITERATION
|
N-the number of loop iteration
|
Same as above
|
If execution inside a loop, make N iteration
|
|
CONTINUE
|
None
|
Same as above
|
Continue the execution until one break point is
reached or program is stopped
|
|
STACKDOWN
|
None
|
Same as above
|
Go to one lower level in stack frame
|
|
STACKUP
|
None
|
Same as above
|
Go to one upper level in stack frame
|
|
STOP
|
None
|
Same as above
|
Stop the program execution
|
Table 3. Control commands of HPF Server
The architecture of this system allows for real-time interaction
with an executing HPF code. At each synchronization point (when the DARP server
is accepting requests), the data can be extracted and processed as if an
explicit call to an HPF extrinsic procedure were made. HPF statements, in particular,
can be executed in such an interactive fashion.
Figure
3.4. HPF interpreter
In this way the system
achieves the functionality of an HPF interpreter. The interaction between the
running application and the user's commands is based on dynamical linking of
UNIX shared objects with the application. Any precompiled stand-alone or
library routine with a conforming interface can be called interactively at a
break point or at selected action points. In order to execute a new code
entered in the form of an HPF source it must first be converted to a shared
object. To do this, the user submits any legal HPF sequence of statements to
the manager, which forwards the request to the specified processor(s). The
processor(s) send statements to the instrumentation server, which creates a
legal HPF subroutine code by using the HPFfe system and submits the code to the
processor. The processor compiles it using an HPF compiler (Figure 3.4). Since
any "interpreted" code is in fact compiled, the efficiency of the
resulting code is as good as that of the application itself. Nevertheless, the
time needed to create the shared object is prohibitively long for attempting to
run complete applications, statement after statement, in the interpreted mode.
On the other hand, the capability to manipulate and visualize data at any time
during the execution of the application, without recompiling and rerunning the
whole application, proves to be very time effective.
For visualizations we used the Scientific
Visualization System, SciVis, a portable system developed at NPAC entirely in
Java. With a very rich and user-extensible set of data filters, and full
support for collaborative use, it is a very powerful tool for a rapid data
analysis. From the user’s point of view, it consists of a stand-alone server
that is typically run on the user's workstation and a client that supplies the
data. The upper left panel shows the front-end applet with a fragment of an HPF
code. The action points at which the SciVis proxy
library is called are highlighted and a triangle on the left points to the
current
line (Figure 3.5).
Figure 3.5. A screen
dump of a DARP session
The architecture of the
SciVis system makes it particularly attractive for integration with the DARP
system. The SciVis client API allows us to design a proxy library in Java with
a simple and very intuitive interface. The library, on behalf of the user,
causes the automatic creation of a SciVis client routine that corresponds to
the data type requested by the user. The client is then dynamically linked with
the running application and executed at a specified action point which results
in sending the data to the SciVis server, which in turn displays them on the
user's workstation screen.
The same mechanism can be used with dedicated proxy
libraries to integrate the DARP system with other software packages such as
computational libraries, data storage systems, or other visualization systems.
By using proxy libraries the DARP system may request or provide services from
other tier-2 servers, or become a module in data-flow type computations
[WebFlowDARP].
Bringing a different visualization engine to DARP is nothing more than
adding a new “Visualization Manager”
instance with a special configuration for this new engine (Figure 5.6). The Visualization Manager is a generic
module that can be configured for a visualization engine that may accept only
special data formats and may have specific environmental variables. The HPF
server sends a visualize command that includes the data with its descriptive
information to the DARP manager, which forwards the data in order to the
visualization manager. The last manager makes the necessary format conversion
on the received data according to the manager’s configuration by the user at
startup time and sends the data in accepted format to the visualization engine.
With this method, the HPF server does not need to deal with any visualization
engine-related operation, but may simply send the data with its definition to
its DARP manager.

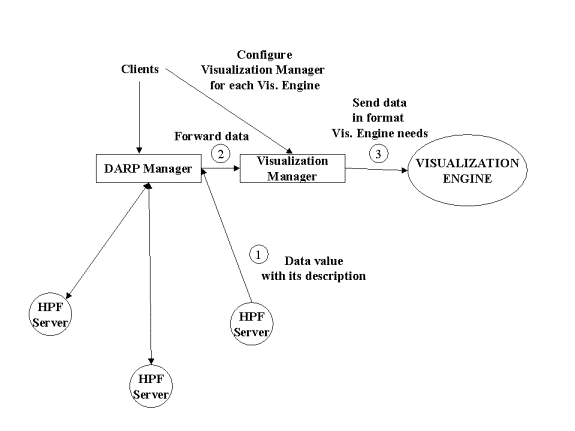

Figure 3.6. Adding a new visualization server to the DARP system
By reusing commodity
components and technologies we have built a powerful tool for data analysis and
rapid prototyping to be used by an HPF application developer. The most
important feature of the system is interactive access to distributed data which
makes it possible to select and send data to a visualization system at an
arbitrary point of the application execution. The data can be modified using
either native HPF commands or dynamically linked computational modules.
Consistent with our HPcc
strategy, the system implements a three-tiered architecture: The Java front end
holds proxy objects produced by an HPF front end operating on the back-end
code. These proxy objects can be manipulated by an interpreted Web client
interacting dynamically with compiled code through a middle tier (middleware). We successfully ran DARP as a
WebFlow module and demonstrated it at SC’97. We fully integrated DARP
functionality into WebFlow, which is explained in Chapter 5.
Although targeted for the HPF back end, the
system's architecture is independent of the back-end language and can be
extended to support other high-performance languages such as HPC++[HPC++Web] or
HPJava[HPJavaACM98]. Finally, since we follow a distributed objects approach,
the DARP system can be easily incorporated into a collaborative environment
such as Tango [TANGOWeb] or Habanero [HabaneroWeb].
CHAPTER 4 – EARLY STAGE OF
GATEWAY: WEBFLOW ARCHITECTURE
Programming tools that are
simultaneously sustainable, highly functional, robust and easy to use have been
hard to come by in the HPCC arena, thus we have developed a new strategy, as
explained in Chapter 2. It is called HPcc: High Performance Commodity Computing
[HPccGridBook], and it builds HPCC programming tools on top of the remarkable
new software infrastructure being built for the commercial web and
distributed-object areas. This leverage of a huge industry investment naturally
delivers tools with the desired properties with the one (albeit critical)
exception that high performance is not guaranteed. Our approach automatically
gives the user access to the full range of commercial capabilities (e.g.,
databases and compute servers), pervasive access from all platforms, and
natural incremental enhancement as the industry software juggernaut continues
to deliver software systems of rapidly increasing power. We add high
performance to commodity systems using a multi-tiered architecture with the
Globus [GlobusIntlJ97] metacomputing toolkit as the back end of a middle tier
of commodity web and object servers.
This approach was not possible a few years ago when
enterprise computing was still mainly client-server (two-tiered) and based on
expensive custom solutions such as proprietary TP Monitors. The onset of the
Web and the associated intranets accelerated the development of scalable and
open three-tiered standards such as CORBA [OMGWeb], DCOM [COMWeb], and Enterprise
JavaBeans (EJB) [EJBWeb]. We can therefore now prototype a dedicated and
advanced, yet commercial-quality HPDC system, for HPCC applications by
integrating open commodity standards for distributed enterprise computing with
traditional (such as MPI or HPF) and emerging (GLOBUS) HPCC infrastructures
that are optimized for performance.
Figure
4.1. Top-level view of the WebFlow environment
Our research
addresses the need for high-level programming environments and tools to support
distance computing on heterogeneous distributed-commodity platforms and
high-speed networks that span across laboratories and facilities. More
specifically, we are developing WebFlow--a scalable, high-level,
commodity-standards-based HPDC system (Figure 4.1) that integrates the
following:
·
High-level
front ends for visual programming, steering, run-time data analysis and
visualization, and collaboration built on top of the Web and object-oriented
commodity standards (Tier 1).
·
Distributed,
object-based, scalable, and reusable Web server and object broker middleware
(Tier 2).
·
High-performance
back end implemented using the metacomputing toolkit of GLOBUS (Tier 3).
Note that this
can be applied to either parallel or metacomputing applications and provides a
uniform cross-platform, high-level computing environment. We believe that such
an ambitious and generic framework as Webflow can be successfully built only
when closely related to some specific large-scale application domains that can
provide specification requirements, testbeds, and user feedback during the
entire course of the system design, prototyping, development, testing, and
deployment. We view NCSA Alliance and DoD modernization programs as attractive
application environments for HPcc because of its unique, clear mission and
advanced computational challenges, opportunities, and requirements.
WebFlow is a specific programming paradigm implemented over a virtual
Web-accessible metacomputer and provided
by a dataflow-programming model (other models under experimentation
include data parallel, collaborative, and televirtual paradigms). The WebFlow
application is given by a computational graph visually edited by end-users,
using Java applets. Modules are written by module developers, people who have
only limited knowledge of the system on which the modules will run. They need
not concern themselves with issues such as allocating and running the modules
on various machines, creating connections among the modules, sending and
receiving data across these connections, or running several modules
concurrently on one machine. The WebFlow system hides these management and
coordination functions from the developers, allowing them to concentrate on the
modules being developed.
4.2 WebFlow Overview
Another NPAC research group
[WebFlow97Furm] originally developed WebFlow and we extended it to experiment
with some high-performance simulation codes. The visual HPDC framework
introduced by this WebFlow project offers an intuitive Web browser-based
interface and a uniform point of interactive control for a variety of
computational modules and applications running at various labs on different
platforms and networks. New applications can be composed dynamically from
reusable components just by clicking on visual module icons, dragging them into
the active WebFlow editor area, and linking by drawing the required connection
lines. The modules are executed using Globus [GlobusWeb] optimized components combined with the pervasive
commodity services where native high-performance versions are not available.
For instance, today one links Globus-controlled MPI programs to WebFlow (Java
connected) Windows NT and database executables. When Globus becomes extended to
full PC support, the default WebFlow implementation is replaced by the high-
performance code.
Individual modules are
typically represented by visualization, control, steering, or collaboration
applets, and the system also offers visual monitoring, debugging and
administration of all of the distributed applications and the underlying
metacomputing resources. In the following chapter we introduce more
sophisticated distributed-object-based Gateway architecture, offering tools for
easy conversion of existing (sequential, parallel, or distributed) applications
to visual modules via suitable CORBA, COM, or JavaBeans-based [JavaBeansWeb]
wrapper/proxy techniques.
New applications created
within the WebFlow framework follow a natural modular design, that accumulates
in the first phase of a project a comprehensive, problem-domain-specific
library of modules. It is then possible to explore the computational challenges
of the project in a visual interactive mode in an effort to compose the optimal
solution of a problem in a sequence of on-the-fly trial applications. The
scripting capabilities of WebFlow, coupled with database support for session
journalizing, facilitates playback and the reconstructing of optimal designs
discovered during such rapid prototyping sessions.
For parallel object and
module developers, we will also provide finer-grained visual and scripted
parallel software development tools using the new Uniform Modeling Language
(UML) [UMLWeb] recently accepted as an OMG standard. UML offers a spectrum of
diagrammatic techniques that allows us to address various stages of the
software process and several hierarchy layers of a complex software system. In
this way WebFlow will combine the features of UML-based visual tools such as
Rational Rose with both high performance and the proven value of
data-flow-based visual programming environments such as Khoros and AVS.
Nothing prohibits the user from encapsulating a
data-parallel application as a single WebFlow module. In this case the user is
solely responsible for interprocessor communications (we used HPF- and
MPI-based codes to run WebFlow modules on a multiprocessor system [DARPSC97]).
Moreover, using the DARP system [DARP98Conc]
implemented as a WebFlow module, we were able to interactively control an HPF
application at runtime and dynamically extract the distributed data and send it
to a visualization engine. This approach can be used for computational
steering, runtime data analysis, debugging, and interprocessor communications

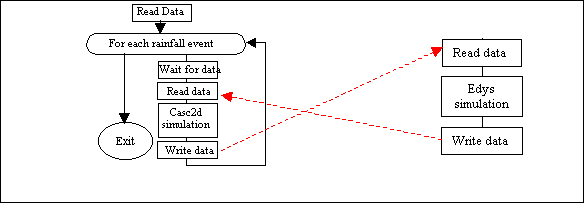

on demand. Finally, we integrated two independently written applications that
write checkpoint data [SC98Pres]. We used WebFlow to detect the existence of
the new data, and transfer it to the other application.
In our approach we adopted
integrative methodology, i.e., we set up a multiple-standards-based framework
in which the best assets of various approaches accumulate and cooperate rather
than compete. We started the design from the middleware, which offers a core or
a “bus” of modern three-tiered systems, and we adopted Java as the most
efficient implementation language for the complex control required by the
multi-server middleware. Atomic encapsulation units of WebFlow computations are
called “modules,” and they communicate by sending objects along channels
attached to a module. Modules can be dynamically created, connected, scheduled,
run, relocated, and destroyed.
The WebFlow Applet is the
front end of the system. Through it users can request new modules to be
initialized, their ports connected, and the whole application run and, finally,
destroyed.

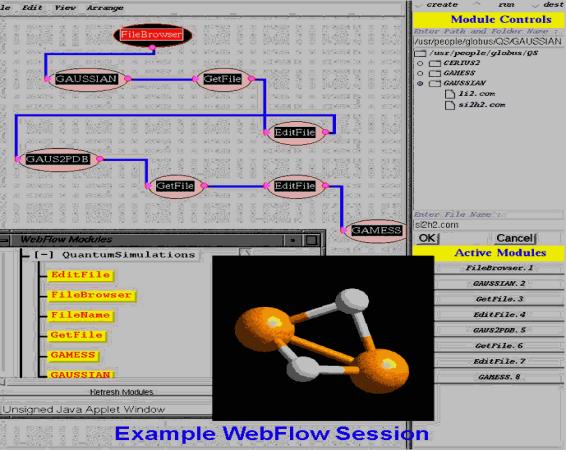

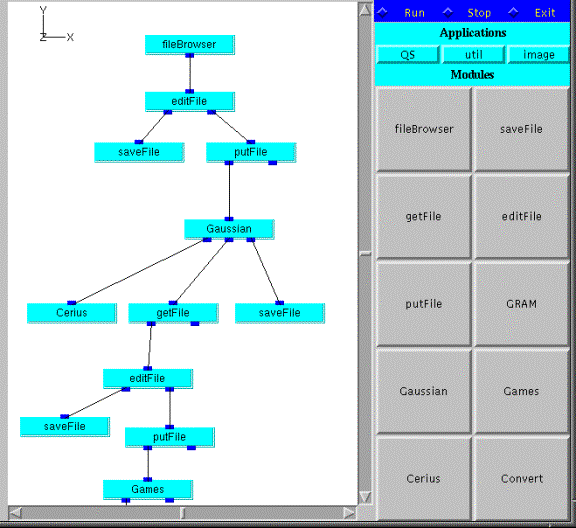

Figure
4.2 WebFlow Front End Applet
The WebFlow editor provides
an intuitive environment for visually composing (click-drag-and-drop) a chain of data-flow computations from
preexisting modules. In the edit mode, modules can be added to or removed from
the existing network, and connections between the modules can be updated as
well. Once created, a network can be saved (on the server side) to be restored at a later time. The workload can be distributed
among several WebFlow nodes (WebFlow servers) with interprocessor
communications taken care of by the middle-tier services. With the help of the
interface of the Globus system in the back end, execution of particular modules
can be delegated to powerful HPCC systems. In the run mode, the visual
representation of the meta-application is passed to the middle tier by sending
a series of requests (module instantiation, intermodule communications) to the
Session Manager.
Control of module execution
cannot be exercised just by sending relevant data through the module's input
ports. The majority of modules that we have developed require some additional
parameters that can be entered via “Module Controls” (in a way similar to that
of systems such as AVS). These module controls are Java applets displayed in a
card panel of the main WebFlow applet. The communication channels (sockets)
between the back-end implementation of a module and its front-end module
controls are generated automatically during the instantiation of the module.
Not all applications follow
closely the data-flow paradigm. Therefore, it is necessary to define an
interface so that different front-end packages can be "plugged in" to
the middle tier, giving the user a chance to use the front end that best fits
the application at hand. Currently, we offer visual editors based on GEF
[GEFWeb] and VGJ [VGJWeb]. In the future, we will add an editor based on the
UML standard, and we will provide an API for creating custom editors.
While designing
the WebFlow we assumed that the most important feature of the front end should
be a capability to create dynamically many different networks of modules
tailored to application needs. However, working with real users and real
applications we found that this assumption is not always true. WebFlow can be
used just as a development tool by taking advantage of graphical authoring
tools to create the application (or a suite of applications). Once created, the
same application (i.e., network of modules) can be run by the end user over and
over again without any changes in the different input sets. In such a case the
design of the front end should be totally different. The decided functionality
is to provide an environment that allows navigating and choosing the
application and data that will solve the problem at hand, with any technical
nuances of the application being hidden from the end user.
The front end provides a
platform-independent and web-accessible interface to a high-performance
metacomputing environment. Given access to the Internet, the user can create
and execute an application using adequate computational resources anywhere,
anytime, and even from a laptop personal computer. It is the responsibility of
the middle tier to identify and allocate resources and to provide access to the
data.
Our prototype WebFlow system
is given by a mesh of Java-enhanced Web Servers [APACHEWeb] running servlets that manage and coordinate distributed
computation. This management is currently implemented in terms of three
servlets: Session Manager, Module Manager, and Connection Manager. These
servlets are URL addressable and can offer dynamic information about their
services and current state. They can also communicate with each other through
sockets. Servlets are persistent and application-independent.
In the implementation of
WebFlow we ignored security issues. Again, in line with our HPcc strategy, we
closely watched the development of industry standards. At this time the SSL
suite of protocols is clearly the dominant technology for authorization, mutual
authentication, and encryption mechanisms. The most recent release of Globus
implements SSL-based security features. In order to access Globus
high-performance computational resources, a user must produce an encrypted
certificate digitally signed by the Globus certificate authority, and in return
the Globus side (more precisely, the GRAM gatekeeper) presents its own
certificate to the user. This mutual authentication is necessary for exchanging
encrypted messages between the two parties. However, authorization to use the
resources is granted by the system administration that owns the resources, and
not by Globus. We are experimenting with a similar implementation for WebFlow.

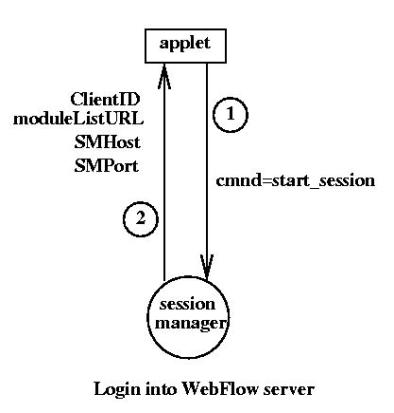

The Session Manager is the
part of the system in charge of accepting user commands from the front end and
of executing them by sending requests to the rest of the system. The user
requests, that the Session Manager honors, are creating a new module,
connecting two ports, running the application, and destroying the application.
Since the Session Manager and the front end generally reside on separate
machines, the Session Manager keeps a representation of the application that
the user is building, much like the representation stored in the front end. The
difference between these two representations is that the Session Manager needs
to worry about the machines on which each of the modules has been started,
while the front end worries about the position of the representation of the
module on the screen. The Session Manager acts as a server for the front end
but uses the services of the Module and Connection Managers. All of the
requests received from the user are satisfied by a series of requests to the
Module and Connection Managers, which store the actual modules and ports.

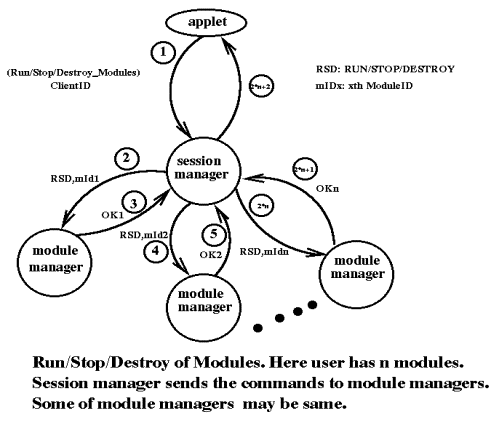

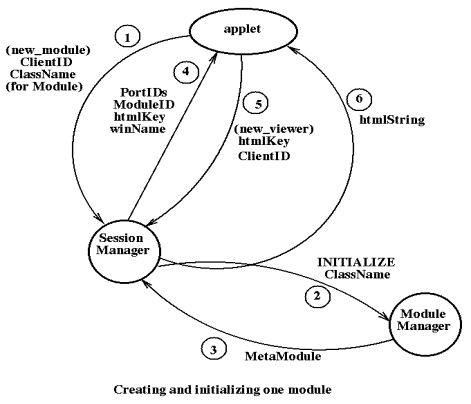

The Module Manager is in
charge of running modules on demand. When the creation of a module is
requested, that request is sent to the Module Manager residing on the
particular machine on which the module should be run. The Module Manager
creates a separate thread for the module (thus enabling concurrent execution of
multiple modules), and loads the module code, making the module ready for
execution. Upon receipt of a request to run a module, the Module Manager simply
calls a run method, which each module is required to have. That method, written
by the module developer, implements the module's functionality. Upon receipt of
a request to destroy a module, the Module Manager first stops the thread of
execution of the module, then calls the special “destroy” method. The destroy
method is again written by the module developer, which performs all the
clean-up operations deemed necessary by the developer.
The Connection Manager is in
charge of establishing connections between modules, or more precisely, between
input and output ports of the modules. As the modules can be executed on
different machines, the Connection Manager is capable of creating connections
across the network, in which case it serves as a client to the peer Connection
Manager on the remote WebFlow server. The handshaking between the Managers
follows a custom protocol.
The module API is very
simple: it implements a specific WebFlow Java interface, the metamodule. In practice, the module
developer has to implement three methods: initialize, run, and destroy. The
initialize method registers the module itself and its ports to the Session
Manager and establishes the communication between itself and its front-end applet
-- the module controls. The run method implements the desired functionality of
the module, while the destroy method performs clean-up after the processing is
completed. In particular, the destroy method closes all socket connections that
are not destroyed by the Java garbage collector.
It follows that the development of WebFlow modules
in Java is straightforward. Taking into account the availability of more and
more Java APIs such as JDBC, this allows the creation of quite powerful, portable applications in
Java. To convert existing applications written in languages other than Java,
the Java native interface can be used. Moreover, the execution of the module
can be delegated to an external system capable of resource allocation such as
Globus. Indeed, at Supercomputing’97 in San Jose, California, we demonstrated
an HPF application run under the control of WebFlow [DARPSC97]. The WebFlow
front end gave us the control to be able to launch the application on a remote
parallel computer, extract data at runtime, and process the data by WebFlow
modules written in Java running on the local machine. The runtime data
extraction was facilitated by the DARP system converted to a WebFlow module.
For more complex
meta-applications, a more sophisticated back-end solution is needed. As usual,
we go for a commodity solution. Since commercial solutions are practically
nonexistent, in this case we use technology that comes from the academic
environment, the metacomputing toolkit of Globus. The Globus toolkit provides
all the functionality we need. The underlying technology is a high-performance
communication library, Nexus. MDS (Metacomputing Directory Services) allows
resource identification, while GRAM (Globus Resource Allocation Manager)
provides secure mechanisms to allocate and schedule the resources. The GASS
package (Global Access to the Secondary Storage) implements a high-performance,
secure data transfer that is augmented with an RIO (Remote Input/Output)
library that provides access to parallel data file systems.
In order to run WebFlow over
Globus there must be at least one WebFlow node capable of executing Globus
commands, such as “globusrun.” In other words, there must be at least one host
on which both Globus and the WebFlow server are installed. This host serves as
a "bridge" between two domains (cf. Figure 4.3), a network of WebFlow
servers and a network of resources controlled by Globus called the Grid. The
jobs that require the computational power of massively parallel computers are
directed to the Globus domain, while others can be launched on much more modest
platforms, such as the user’s desktop or even a laptop running Windows NT.
Figure 4.3. Bridge between WebFlow and
Globus resources
(the Grid)
Both Globus and WebFlow gain from this symbiotic
coexistence. From the WebFlow perspective, Globus is an optional,
high-performance (and secure) back end, while WebFlow serves as a high-level,
web-accessible visual interface and job broker for Globus. Together they cover
a much wider application domain: Globus adds the HPCC world to WebFlow, and
WebFlow adds commodity software, particularly the software that is available
only on Microsoft Windows95/98/NT.
We are aware that providing
a remote access to Globus resources (either via front-end applets or WebFlow
server-to-server connections) we may introduce a security hole into the system.
We made several experiments to upgrade WebFlow security standards in order to
match those of Globus. However, at this time we have postponed incorporating
any security mechanism into WebFlow until we rebuild the middle tier using
CORBA and until some widely accepted standards emerge – preferably defined by
DATORR [JGrandeWeb].
WebFlow interacts with
Globus via the GRAM gatekeeper. A dedicated WebFlow module serves as a proxy of
the gatekeeper client, which in turn sends requests to GRAM. Currently, the
proxy is implemented using Java native interface. However, in collaboration
with the Globus development team, we are working on a pure Java implementation
of the gatekeeper client.
At this time GASS supports only
the Globus native x-gass protocol, which restricts its use to systems in which
Globus is installed. We expect support for other protocols, notably ftp, soon.
This will allow us to use a GASS secure mechanism for data transfer from and to
systems outside the Globus domain that are under control of the WebFlow. We
also collaborate with the Globus development team to build support for other
protocols, namely, HTTP and LDAP. In particular, support for HTTP will allow us
to implement data filtering on the fly, as the URL given to GASS may point not
to the data directly, but to a servlet or CGI script instead.
The user starts a session by
sending the "start-session" command to the Session Manager (SM) that
returns the host, SMHost (on which
SM runs), and the port, SMport
(SM port), to the user. It also returns
the user-unique client identifier, ClientID,
and the URL file, moduleListURL, that includes descriptions of user modules.
This step is done automatically when the user downloads the WebFlow Front End
applet from the HTTP server.
Figure 4.4. Starting a user session
in the WebFlow system
While describing the
creation of a new module, we will also give necessary details concerning the
Session Manager (SM) and the module manager. The user always initiates the
commands for the SM by visual authoring tools inside the applet with click and
drag-drop mouse operations, and these SM commands are sent automatically on behalf
of the user. We will refer to each entry of “X table” or “X list” as “X Object”
in the following discussion.
SM holds the WFlowSession list (indexed by ClientID). Each entry of this list
includes the ModuleRepresentation
table (indexed by ModuleID) and the ViewerList-html Strings (indexed by htmlKey) for user modules and the
module description list. The ModuleRepresentation
object for each module keeps the port CMPort
(its Connection manager Port), the port MMPort
(its ModuleManager Port), and the host in which it lives. The MM (Module
Manager) holds the ModuleWrapper
table that, indexed by ModuleID, holds a ModuleWrapper object
for the user-defined module in each entry. MM sends the commands to ModuleWrapper (running as a separate
thread), which forwards them to the Module itself. The advantage to this is
that ModuleWrapper can return
control to the MM instantly, especially when running the Module, because ModuleWrapper runs the actual module run method as a separate thread.
The New-module command with the parameters ClientID and ClassName
for the module to be created is sent to the SM after the user drops a visual
icon for the module to the Graphic Editor Frame. Then the SM finds the corresponding MM for this module and sends
the INITIALIZE command with the
parameter module ClassName to it.
The SM gets the MetaModule object
for the created module, creates its ModuleRepresentation
object by using information inside the MetaObject,
and inserts this created object into the ModuleRepresentation table. The SM also inserts the htmlString of this module into the ViewerList table. The MetaModule object actually includes the
state (description), ModuleID, port list, and viewerWinName for the new module. The SM forwards the contained
information inside the received MetaModule
object to the applet. If there is a matching front-end applet for this module,
the applet sends a "new_viewer"
command with parameters htmlKey and ClientID, receives the html string, and pops up the module
applet.
Figure 4.5. Creating a new module
Creating a connection between
modules is more complex than initializing modules. As seen in Figure 4.6, to
establish a connection from module fromModule
to another module toModule, we need
port Ids (fromPortId and toPortID) and Modules IDs (fromModuleID and toModuleId) of the module pair. Module IDs and their port IDs are
received during the initialization of modules. We send all of this information
together with ClientID as a Connect command to the SM. Then the SM
finds the CMHost (CM host ) and CMPort (CM Port) for module toModule and sends them with port IDs
of two modules inside the ESTABLISH
command to peer CM for module fromModule.
CM keeps a portList table, indexed by a port ID,
that includes a PortRepresentation
for each module port. The CM also has two ports: one for requests and the other
for connections, which is drawn in Figure 4.6 as a filled small circle at the
left CM. In the connection process, the CM got fromPortID (for the source module) and toPortID (the target module). The user puts the module Ports
obtained by creating OutputPort and InputPort objects (inside the
initialize method), where the PortRepresentation
object is created for each port and registered that into the CM by calling CM's
static method, registerPort. The
function of the CM job is to look up PortRepresentation
objects for port pairs by means of fromPortID
and toPortID and to make connections
between these two ports and set the storedPort
field (type of Port object) of PortRepresentation
objects.
Returning to the connection
process, the CM at fromHost sends
the RECEIVE command with arguments fromPortID, toPortID, CMHost, and
the connections port for fromHost.
The CM at host toHost makes a socket
connection (as client) to the connections port for host fromHost (used only to make connections), sets PortRepresentation of toPort
to this established connection, and sends an OK message to the CM at fromHost. The CM of fromHost sets PortRepresentation
of fromPort to a returned connection
from the accept method call of the ServerSocket object and sends an OK
message to the SM, which also sends an OK to the applet. This scenario is that
of the general case. If two CMs are on the same host, steps 3 and 5 are not
needed. Here the user doesn't send any command to CM to register its ports, but
gives its Port objects to the CM, because the host names of the CM and MM of
one module have to be the same.

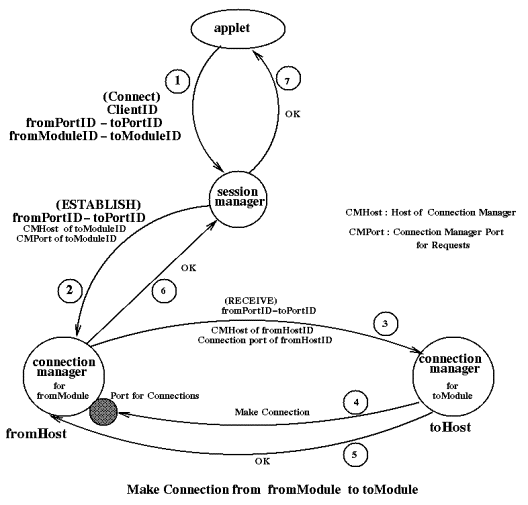

Figure 4.6 Creating a connection between modules
The current WebFlow supports
only the running of modules together, not separately. After the user finishes
building a visual graph, he may send a run command to the SM with parameter ClientID. As seen in Figure 4.7, an SM
looks up the WFlowSession object.
For each ModuleRepresentation inside
this object, the SM sends a RUN
command with ModuleID to the
appropriate Module Manager (MM). Each MM finds a ModuleWrapper corresponding to the received ModuleID and calls its runModules
method, which then calls an actual run method from the user module
implementation. Stop/Destroy command is used in the same way as the Run command.
4.7. Run/Stop/Destroy modules
To summarize, we have
developed a platform-independent, three-tiered system: the visual authoring
tools implemented in the front end, integrated with the middle-tier network of
servers based on industry standards and following a distributed-object
paradigm, facilitate a seamless integration of commodity software components.
In particular, we use the WebFlow as a high-level, visual user interface for
GLOBUS. This not only makes the construction of a meta-application much easier
for an end user, but also allows this state-of-the-art HPCC environment to be
combined with commercial software, including packages available only on
Intel-based personal computers.
Although our prototype
implementation of WebFlow proved to be very successful, we are not satisfied
with it as a complete solution to the problem. Its advantages are the
following:
1.
It
follows the industry-proved standard of a three-tiered model.
2.
Developing
back-end WebFlow modules and their front-end controls can be achieved
independently of each other.
3.
WebFlow
supports a session concept for each working user that doesn’t interfere with
other users.
4.
Module
developers don’t need to deal with low-level issues such as allocating
computing resources and connecting modules.
However, WebFlow doesn’t have many of the features a scientist typically
expects to see during the development of a distributed application from
previously generated modules. These properties have to be developed and the
failings must be corrected:
1. The
user must construct a visual graph to represent the back-end application first
and start all of the modules at once; the flexibility of adding and starting
modules incrementally is also needed.
2. Whenever
the user brings a corresponding icon into the front-end palette for a back-end
module, there is middle-tier processing to allocate system resources for this
new module, and there is no “undo” operation for this intervening middle-tier
process.
3. When
the user makes a connection between two modules in the front-end visual graph,
the front-end applet sends the connection command to the middle tier
automatically. There is no way to recover this connection process.
4. There
is no utility to save and restore a finished, distributed application. The
entire visual graph must be rebuilt every time you want to create it.
5. There
is no security and transaction model, and it is difficult to put a security
model on top of the current WebFlow.
6. WebFlow
doesn’t provide for replacing an old running module with a new one. An entire
application must be created out of new modules every time a module needs to be
replaced with a new one.
7. Even
though we tried to extend the original WebFlow so that the user front-end
controls for back-end modules can communicate, much multithreading coding and
many complex operations are required. There has to be an easy way for the front-end
control to talk with the matching back-end module, such as CORBA method call.
8. Even
though we successfully integrated WebFlow with the DARP system by representing
DARP as an WebFlow module, much coding is needed and that includes more
synchronization and multithreading issues. We have to find a way to strongly
couple DARP with WebFlow, possibly by incorporating DARP’s functionality into
WebFlow’s middle tier.
9. The
original WebFlow doesn’t support the assigning of attributes of user modules or
saving and recovering them from/to the database.
10. Because developing
distributed applications is a complex process, it is very easy to make a
mistake. Therefore, there has to be a monitoring environment for all
interactions among front-end and back-end user modules. The original WebFlow
doesn’t support this facility.
11. WebFlow doesn’t
allow one user to construct and test multiple distributed applications
concurrently.
12. WebFlow allows
only a data-flow model, but we sometimes need event-driven associations among
user modules, which we need to provide.
13. WebFlow doesn’t
have a service concept. In the high-performance community we have to provide
some services such as a Database server, a Directory Server, a Batch Job
submitter, various metacomputing services such as MDS (Metacomputing Directory
Service), GRAM (Globus Resource Allocation Manager), GSS (Globus Security
Service), and GASS (Globus Access to Secondary Storage). We need a simple way
to attach these kinds of services to and detach them from the WebFlow system so
that user modules can reach it easily.
Pursuing HPcc goals, we
would like to base our implementation on the emerging standards for distributed
objects and take full advantage of the possible leverage realized by employing
commercial technologies. Our research led us to the following observations: The
"Java Platform" or "100% Pure Java" philosophy is being
advocated by Sun Microsystems, while the industry consortium led by the OMG
pursues a multi-language approach built around the CORBA model. It has been
observed recently that the Java and CORBA technologies form a perfect match as
complementary enabling technologies for distributed-system engineering. In such
a hybrid approach, referred to as the Object Web, CORBA offers the base
language-independent model for distributed objects and Java offers a
language-specific implementation engine for CORBA brokers and servers.
Meanwhile, other
total-solution candidates such as DCOM by Microsoft or WOM (Web Object Model)
by the World-Wide Web Consortium for distributed objects/components are
emerging. However, standards in this area and interoperability patterns between
various approaches are still in the early formation stage. A closer inspection
of the distributed object/component standard candidates indicates that, while
each of the approaches claims to offer a complete solution, each in fact excels
only in specific selected aspects of the required master framework. Indeed, it
seems that WOM is the easiest, DCOM the fastest, pure Java the most elegant,
and CORBA the most realistic complete solution.
Consequently, to implement
the new WebFlow system, we chose CORBA as the base distributed-object model at
the Intranet level, and the Web as the worldwide distributed-object model
instead of patching the original WebFlow to solve the above problems.
5 Distributed Object-Based Gateway Architecture
Seamless access creates an illusion that all
the resources needed to complete the user tasks are available locally. In
particular, an authorized user can allocate resources without explicit login to
the host controlling the resources. We have many examples of this scenario in
other platforms such as NSF-mounted disk or a network printer. An user thinks
his or her home directory files are located at a single location, but they are
distributed across several disks that are NSF-mounted. The same command is used
to print a file on any printer and the user doesn’t need to know where the
printer in a network is installed.
A Web
browser has become a centerpiece of the desktop. The rapidly evolving Web
technologies add functionality to this ubiquitous tool, and what is perhaps
even more important, new technologies add functionality to the Web servers.
This in turn opens new opportunities for the content providers. Nowadays, the
Web is not just a collection of static html documents, but also offers numerous
services, from on-line shopping and banking to collaboratory environments used
for distance training and for sharing scientific data.
The Gateway system offers a specific
programming paradigm implemented over a virtual Web-accessible metacomputer. A
meta-application is composed of independently developed modules implemented in
Java that follow the distributed, modified JavaBeans model, somewhat similar to
the EJB model. This gives the user the complete power of Java and of
object-oriented programming in general with which to implement module
functionality. However, the functionality of a module does not have to be
implemented entirely in Java. Existing applications written in languages other
than Java can be easily encapsulated as JavaBeans.
Module developers have only limited knowledge of the system on which
the modules will run. They need not concern themselves with issues such as
allocating and running the modules on various machines, creating connections
among the modules, sending and receiving data across these connections, or
running several modules concurrently on one machine. The Gateway system hides
these management and coordination functions from the developers, allowing them
to concentrate on the modules being developed. In addition to seamless access
to modules running across networks, Gateway allows users to construct and work
on many different applications composed on several modules concurrently.
Modules
often serve as proxies for particular back-end services made available through
the Gateway system. For example, an access to a database is provided through
JDBC API that delegates the actual implementation of module functionality to a
back-end DBMS. We follow a similar approach in providing access to
high-performance resources: a Gateway module "merely" implements an
API of back-end services.
The Gateway system supports many different
programming models for distributed computations, from coarse-grained data flow
to object-oriented to a fine-grained, data-parallel model. In the data-flow
regime a Gateway application is given by a computational graph visually edited
by the end users. The modules comprising the application exchange data through
input and output ports in a way similar to that used in AVS. This model is
generalized in our new implementation of the Gateway system. Thanks to the fact
that the modules behave as distributed JavaBeans, each module may invoke an
arbitrary method of the other modules involved in the computation.
Gateway
has three-tiered architecture just as WebFlow
does (Figure 5.1). A stand alone application or Web browser-based graphical user interface that assists the researcher in
the selection of suitable applications, the generation of input data sets,
specification of resources, and the post-processing of computational results,
comprises tier 1. The distributed, object-oriented middle tier maps the
user-task specification onto back-end resources, which form the third tier. In
this way we hide the underlying complexities of a heterogeneous computational
environment and replace it with a graphical interface through which a user can
understand, define, and analyze scientific problems.
In our design we built on our experience of
applying the WebFlow system to
real-life applications, as described in our earlier papers [WebFlowSC98et, WebFlowHPCN99te]. It is
important to note that we use the Globus metacomputing toolkit to provide
access to high-performance resources in tier 3. Conversely, the Gateway system
can be regarded as a high-level, Web-based user interface and job broker for
Globus.
Figure
5.1. Gateway architecture
In an object-oriented approach, applications
are made of components and containers. One builds a Java applet by placing AWT
components – buttons, labels, text fields and so forth – into frames or panels,
that are object containers. This idea can be easily extended to non-graphical
components and is implemented as a hybrid of Enterprise JavaBeans and
JavaBeans. An important element of the JavaBeans approach is a standardized
model for interactions between components through event notification.
Information that is to be shared between components is encapsulated as events
and passed to all registered events listeners.
It follows that within the Gateway
environment, building a distributed, high-performance application is a process
similar to that of building a distributed applet (Figure 5.2). Note that we
will use “application,” “context,” and “Gateway context” interchangeably
throughout the thesis.
Figure
5.2. A hypothetical distributed applet.
Each panel (a container) of this applet is placed on a different host.
Like the distributed applet in Figure 5.2,
we have Gateway Context and User Module corresponding to AWT
container and AWT component, respectively, as shown in Figure 5.3 in which an
application actually is represented with Gateway Context. A user creates the
user context, which is a container for all of his or her applications. The
application context holds other application contexts or modules and a user can
be represented by Gateway context that can contain an arbitrarily complex
hierarchy of containers and objects in the middle tier. The web-based client
tier provides tools for visual composing and for distributing the hierarchy.
Figure
5.3. A distributed Gateway application
As shown Figure 5.4, a Gateway
middle tier that actually represents the distributed application in Figure 5.3
consists of WEB servers, Gateway contexts, and proxy objects. Even though we
showed user modules in Figure 5.4, they actually play a role in the back end.
The context residing at the top of tree is referred to as master context. Only the master context can hold proxy objects. We
call contexts other than the master context slave context. Contexts can run as a separate process, called the Gateway server, or as an object
embedded in another object or Gateway
server. As shown in Figure 5.4, WEB
servers are used to configure and start Gateway
and they include descriptions of the user modules. The WEB server holding
the master context is called the master WEB server.
Figure
5.4. A simplified representation of the Gateway middle tier
As shown in Figure 5.5 (proxy objects and WEB servers removed for
simplification), Gateway contexts and user modules are represented as ellipses
and squares, respectively. The slave
context registers itself to the master if the slave stays just below the master
or to another slave and usually runs on a host different than the one on which
its parent is running. Usually, there is only one instance of master or slave
on each machine. Slaves can be introduced into the system dynamically and their
parents instantly update the list of available children of Gateway servers.
Actually, master and slave contexts are instances of the same object.
The labels on ellipses and squares indicate
the Distinguished Name (DN) of the contexts and user modules, respectively,
(Figure 5.5). This naming convention is similar to the way in which LDAP
directory servers and the CORBA naming service name their components. The
component at the tail of a solid arrow has reference to the one at the head.

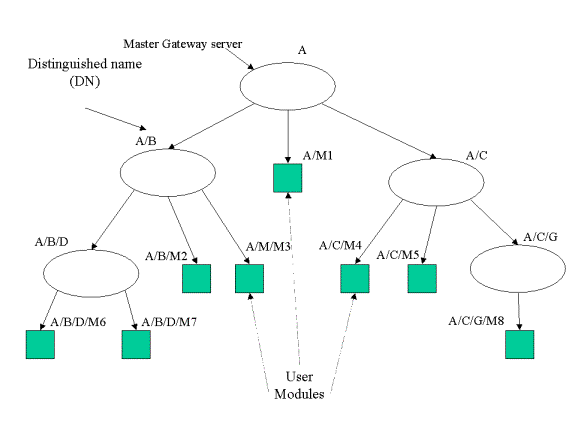

Figure
5.5. Naming of Gateway contexts and user modules
This service, compared with all other OMG
specifications, is more like a guideline than a set of standard programming
interfaces (although it contains both). One of the key concepts in the
Lifecycle service is the object factory,
the purpose of which is to create other objects. Created objects might be in
the same address space or they could be remote objects somewhere else in the
global computing environment. The CORBA architecture and its location
transparency help to hide the complexity associated with these differences in
location.

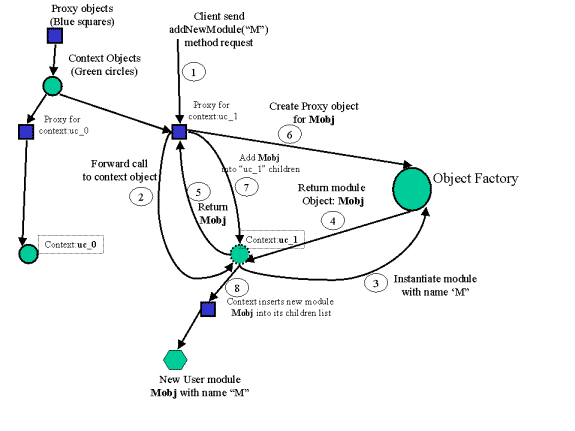

The Gateway requires a customized Lifecycle service. In particular,
instantiation of a Gateway module or context on a remote or local host (to be
run under control of the peer Gateway server) requires the creation of a local
proxy module in the master context. Therefore, there is a proxy object in the
master server for any object created in the system. Each context actually has
an object factory and is responsible for all lifecycle operations of its
children objects: contexts and user modules.
The master creates and maintains proxies for
each component in the hierarchy. The original purpose of proxies is to forward
requests from the Web client to remote objects (a Web client cannot contact
objects on remote slave servers because of the Java sandbox security
restrictions). In addition, proxies simplify the association of the distributed
components. In our current implementation we generate proxies for all
components, including local objects. This symmetric implementation allows the
functionality of proxies to be extended. Among the most interesting is the
capability of logging, tracking, and filtering all messages between components
in the system. We use these capabilities to implement fault tolerance and
security and transaction monitors, as well as for debugging purposes.
For
distributed applications we need a mechanism to transport events across address
spaces or a distributed-object model. An application is made of contexts and
modules that exchange information between each other through the
event-notification mechanism. An event is a CORBA object itself that encapsulates the data to be sent from one
module to another. To make this work, a registration mechanism must be provided
that allows for “connecting” the modules.
By “connection”, we mean here an association of a source object, which
fires the event, and the target object whose registered method is called as the
response to the event.
Since
Gateway modules are developed independently of each other and are connected
only at runtime, we need a dynamic mechanism for event binding. This
functionality is offered by the CORBA event service that defines an event-channel object. Event suppliers subscribe to an event
channel as event producers, and event consumers subscribe to a channel. This
subscription is achieved by first getting ConsumerAdmin (for event supplier)
and SupplierAdmin object (for consumers). The event supplier then gets a
ProxyPull/PushConsumer object from ConsumerAdmin and starts pumping the event
to the channel through this proxy. Event consumers get a ProxyPull/PushSupplier
object from ConsumerAdmin and start getting the event from the channel through
this proxy, either by pulling the event or pushing the event channel to the
event consumer.
Whenever
any event comes from any event supplier, the event channel forwards it to all
subscribed consumers. There is no event filtering such that one specific type
of event is passed to one particular consumer, because the event channel cannot
identify the source of the event in order to forward it to one specific
consumer. However, we choose not to use these event channels for security
reasons. All events in the event channel are “public,” that is, any object can
register itself as the listener for an arbitrary event. The support for
point-to-point event exchange will be provided in future releases of CORBA as
the event notification service. At this time, we are forced to develop our own
event registration service.
Our
implementation is based on an event adapter, which is a simple translation table maintained by each
Gateway context. Each entry of the table contains a source object reference,
event identifier, target-object reference, target-method name, and the type of
the connection. We support two types of connections, push and pull. In the push
model, whenever the source object fires an event, it is intercepted by its
parent context, which immediately calls the registered target method. In the
pull model, the captured event is kept inside the translation table until the
target-object wants to take it by explicitly calling the “pull” method on its
parent context. This dynamic event binding is achieved by using CORBA’s dynamic
invocation interface (DII) and dynamic skeleton interface (DSI). In Figure 5.6
we illustrate our event model.
In
current implementation, all binding information of modules or contexts nested
inside one container context are kept inside the container so that whenever it
is needed to modify connections from a user module the suitable request must be
sent to its parent container. However, it is possible to view this binding
table as a CORBA object instead of as internal tables.
This simple configuration (Figure 5.6) shows
that we created master (M) and slave (M/S1 and M/S2) servers. Then we created
the context (M/S1/UC1) inside slave S1 and the context (M/S2/UC2) inside slave
S2. The modules M1 and M2 are put into contexts UC1 and UC1, respectively.
Inside the master we created one proxy for each instantiated object. The arrow
with dotted lines represents the relationship of the proxy in the master with
the real object. Suppose we associate module M1 and module M2 with one type of
event. The arrow with solid lines shows the execution path when module M1 fires
one event.

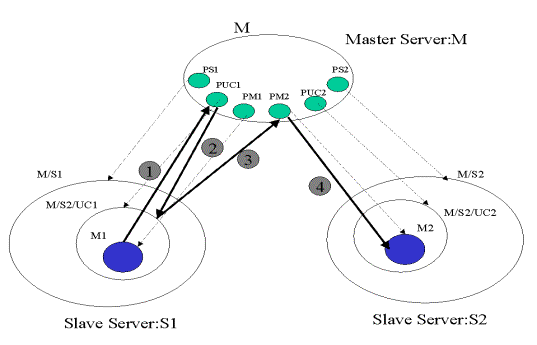

Figure
5.6. Gateway event model.
Module M1 in context UC1 of S1 fires an
event e to invoke a method m of module M2 placed in context UC2 of S2. The
small blobs inside the master represent the Gateway components’ proxies
maintained by the master. Thin dotted arrows show the relation between the
proxies and the actual objects.
1.
Module M1 fires the event, which is intercepted by the proxy
of its parent context PUC1.
2.
The proxy forwards it to the actual context UC1.
3.
The context finds in its translation table the intended
recipient (here, method m of module M2) and forwards the event to the target
module proxy PM2.
4.
The proxy invokes
method m of module M.
At
first, this model may seem unnecessarily complex. The use of proxies indeed
adds some overhead. In practice, however, the performance penalty is barely
noticeable, while the advantages of this model overweigh any possible
shortcomings. First, we use this long path through
proxies only to transfer control logic between objects and actual data transfer
is carried out at the back end with optimized high-performance libraries such
as MPI and PVM. Second, reference to the proxy of the target module
instead of to the module itself leads to module location transparency. Third,
firing the event by the Web client is the only way in which to access the
remote module. Finally, as discussed above, sending events through proxies
opens an opportunity for filtering events.
These proxies act as general EJB objects when compared to EJB
architecture, therefore the proxy for each user module can manage the
persistency of the module automatically.
The back-end consists of user modules and
various software and hardware resources. We call these resources application services. There are two
types of user modules: the principle
module, which has no dependency on other services, but only on its own
computational code, the delegate module or Gateway service, which serves as a
proxy for application services. Modules are technically CORBA objects implemented
in Java. However, that does not mean that the actual functionality of the
module must be implemented in Java. Legacy applications can be easily
encapsulated as CORBA objects and thus used as Gateway modules or delegate modules.
A typical task submitted to the Gateway
system specifies the software components to be used rather than the actual
code. Consequently, Gateway modules do not implement the task functionality
directly, but instead act as proxies for that functionality. For example, one of the application services, Globus, which has many metacomputing services, provides a user to obtain high
performance whenever needed. The ATD (Abstract Task Descriptor) may request to be
allowed to submit an executable that can be found at a given location and store
the output file at another specified location. In such case, the Gateway delegate module forwards the performing
of these tasks to metacomputing services, supplying them with adequate
arguments. In other words, the Gateway delegate
module implements the metacomputing service interface and marshals the
arguments. An application following any programming paradigm (including
parallel) and implemented in any language can thus be run under the control of
Gateway modules and the Gateway system.

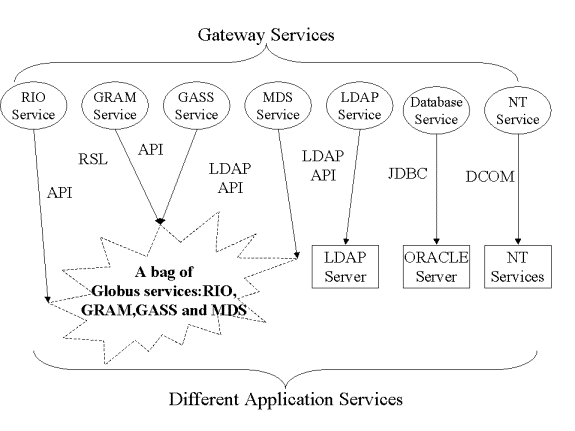

Accessing to a delegate module has two steps. Because each object in the Gateway
system has a proxy, a front-end request for any Gateway service is intercepted
by its proxy in the middle tier, which forwards the request to the delegate
module. In the second step, the delegate module makes forwards one more to the
actual application service at back end. A user module running in the back end
can request Gateway to obtain any service. This process may cause Gateway to
make a traversal on the tree of objects to find specified service if necessary.
A user module can register itself for a specific service so that whenever that
service is added to the system, the module is informed immediately. In this
way, Gateway not only provides an environment for multiple users to work on
with their different applications, but also single point service discovery for
user modules. Therefore, a user module can get any service object that is put
inside any Gateway context dynamically. Because the hierarchy of contexts and
user modules is very similar to LDAP architecture, this feature may open more
functionality in the future.
The
LDAP and Database services use
LDAP API and JDBC protocol to access to the Directory server and Oracle
database, respectively. NT service can access through Windows DCOM to various
NT services or COM objects that were developed by the user or by Microsoft.
Figure
5.7. Gateway services at back end
Globus has various
metacomputing services implemented on top of Nexus, and Gateway has built-in delegate modules to these services. The
services (Figure 5.7) include secure resource allocation (GRAM), secure file
transfer (GASS), metacomputing directory services (MDS), remote I/O for
meta-systems (RIO), Metacomputing Directory Service (MDS), and others.
The GASS (Global Access to Secondary Storage) service, using Globus API,
helps to transfer files across different machines in a way that eliminates
logging onto a remote site and using ftp. The RIO service provides basic mechanisms for tools and applications
that require high-performance access to data located in remote potentially
parallel file systems. MDS service provides access to MDS, the information infrastructure of the Globus Metacomputing toolkit.
MDS stores static and dynamic information about the status of a metacomputing
environment. MDS and RIO access back end application services through globus
API and LDAP API respectively.
The GRAM
service acts as a client to the GRAM
(Globus Resource Allocation Manager) server in the Globus system and is used to submit jobs. More specifically, GRAM service sends a request expressed in
the Globus RSL (Resource
Specification Language) that defines the target machine and the location of
executable and input files, as well as instructions for dealing with standard
output and standard error streams. Optionally, through GASS both executable and input data sets can be staged prior to the
execution of the job, and output files can be uploaded to a specified location
after the job is completed. The Java code of the Gateway delegate module generates the RSL command, and the Gateway module
developer never needs to see the actual application, let alone make an attempt
to rewrite the application in Java.
Different classes of applications require
different functionality of the front end (Figure 5.1). We therefore designed
the Gateway system to support many different front ends, from very flexible
authoring tools or problem-solving environments (PSE) that allow for the dynamical creation of meta-applications,
from pre-existing modules to highly specialized front ends customized to meet
the needs of specific applications
(Custom Application GUI). Also, we support many different computational
paradigms, from data-flow (Data-Flow
Visual Authoring) to general object-oriented (Object-Oriented Visual Authoring Tools) to “a command line”
approach (Standalone Application).
This flexibility is achieved by treating the front end as a plug-in
implementing the Gateway API. We will
briefly discuss these front ends.
PSE
provides an environment in which a scientist can solve a particular problem by
constructing the task through a selection of several subtasks that may be
contained in the specified task and the environment and input/output parameters
for each subtask. Specifically, for each task the user has to give at least the
application executable name with input/output parameters (or files), target
host, and specific environment parameters. PSE produces an actual job
descriptor from user selections on the fly and sends it to the middle tier.
The user can create an application-specific GUI (Custom Application GUI). We have built two different front ends
for LMS simulations.
We may have some applications
consisting of components that have simple relationships among themselves such
that each component gets several inputs from upward components, runs an actual
computational code, and sends any results to downward components. We have given
a simple Web-based interface to QS following the Data-Flow Visual Authoring model. We have created several reusable
modules where the user clicks and drags the module into a palette in which he
makes data-flow connections among modules. This type of front end is suitable
only for applications that have inherent data-flow computations.
Object-Oriented Visual
Authoring Tools are the most generic of front ends and are similar to the JavaBeans
Development Environment (like SUN BDK). The user chooses predefined beans and
puts them into a bean palette. The user may then make several types of
connections between beans after inspecting the properties and fired events of
each one. Thus, the user can construct arbitrary connections between beans such
that one bean can invoke method of another one when a source fires an event.
After completion of an application, it can be saved and resurrected later.
The stand-alone application
is the lowest level front end because it uses the API of Gateway to build its
specific application.
EJB defines a server component model for
JavaBeans. The current specification of EJB 1.1 doesn’t support attaching
Enterprise JavaBeans through event binding. The simplified representation of
the EJB model is shown in Figure 5.8.
In the EJB model we have a container that provides transaction and security,
state management, and the persistency of Enterprise JavaBeans nested inside the
container. The container has tools that take Enterprise JavaBeans and produces
the necessary helper classes to deploy the EJBs into the container. Usually, in
order to create one Enterprise JavaBeans, the user needs to write, for example,
an Account interface and its implementation, AccountBean (for Session
Beans) and AccountHome. Assuming we are using the EJB development
environment of the “Acme” company, the container tools get them and
automatically produce AcmeAccountHome, AcmeRemoteAccount, and some other classes. AcmeAccountHome has
life-cycle methods to implement the user interface, AccountHome. The user first finds AcmeAccountHome in JNDI and uses it to create the AcmeRemoteAccount object,
simply an EJB object, which instantiates the real EJB AccountBean at the same
time. This EJB object behaves as a wrapper for user EJB, AccountBean. This means that
whenever any method call from the user comes to the EJB object, this object
performs a transaction operation and security if needed and forwards the call
to the real EJB, AccountBean.
In the Gateway
system, our Bean is user-module defined in the idl files. Because we are using
an interface repository to extract type information from user modules, we have
a generic EJB object (AcmeRemoteAccount) called a proxy for any user-defined
module. This proxy can get a request from the client for any user module and forward
it to the module. In our model we create user modules simply by instantiating
an empty constructor of user module implementation, as opposed to “creating” methods of AccountHome
implementation classes (AcmeAccountHome). We can again place security and
transaction policies into the proxy as EJB does inside the EJB Object.
As EJB tools generate the helper and
other wrapper classes from user EJB interface and implementation classes to
provide transaction, security, and persistency management of user EJB objects,
we automatically generate wrappers for user module attributes. These attribute
wrappers consist of the methods necessary to transform attributes from one type
to another, e.g., a string attribute to its native type or vice versa, or from
its native representation to the one in a database. These wrappers aid in user
module persistency so that whenever one method call crashes for unknown reasons
in the middle of its execution, its full state from the database can be
recovered automatically. We will say more about persistency in a later chapter.
Figure
5.8. Basics of an EJB environment
We started with Sun’s JavaBeans model, used its classes, and customized
and updated them for a distributed environment. Later, we wrote our own Gateway
interfaces on top of the Sun BeanContext interface
and implemented them in CORBA. We will
define interface methods and skip the ones used internally.
|
interface baseAttribute;
Interface BeanContextChild {
fireEvent(baseAttribute eventObj);
string saveStateInXml(in string saveCase);
void restoreXMLProperties();
void saveStateInDataBase();
void savePropertiesWithJDBC(in string tableName);
void setEntityFlag(in boolean flag);
boolean getEntityFlag();
void
destroy();
void
removeMyself();
void
changeImpl(in string objName);
membersArray pull();
void
setObjectID(in string objectId);
string
getObjectID();
void
setMyProxy(in Object proxyObj);
Object
getMyProxy();
void
setBeanContextChildPeer(in Object peer)raises(NullPointerException);
void
setBeanContext(in Object bc)
raises(event::PropertyVetoException);
Object getBeanContext();
Object
getBeanContextChildPeer() ;
void
addPropertyChangeListener(in string name, in Object pcl);
void
removePropertyChangeListener(in string name, in Object pcl);
void
addVetoableChangeListener(in string name, in Object vcl);
void
removeVetoableChangeListener(in string name, in Object vcl);
};
|
Table 6.1.
BeanContextChild interface
Our BeanContextChild interface (Table 6.1) is an extended version
of SUN’s BeanContextChild interface with our special methods. We
have an implementation class, BeanContextChildSupport,
of this interface. Each Gateway module implementation must extend from the BeanContextChildSupport class so that
the module code is able to access to the fireEvent
method to fire any event. The Gateway context will use these interface methods
to control easily life cycle and run-time information of the user modules.
saveXMLProperties saves the current state of a user module object by generating an XML
document of its defined attributes and returning it as a result value where saveCase argument is the method for storing
attributes in two forms, “ASCII” for text form and “binary” for CORBA CDR
(Common Data Representation). Currently, we support basic data types and
sequence and structure types; restoreXMLProperties
restores the previous state of the called object in XML. Actually, it reads
the values of all the attributes defined for the object and sets them. These
method calls are intercepted by the proxy of the object and forwarded to the
configuration server.
The destroy method
disconnect from ORB. The removeMyself
method removes caller object from the children list of its parent context and
removes all of the incoming and outgoing connection entries for this object
that are in the binding table of the parent, and finally calls the destroy method. The changeImpl method first calls the removeMyself method and instantiates a
new user module with the name objName
parameter by sending an addModule
method call to the parent of the object. Finally, changeImpl substitutes this new instance into the vacant place of
this object.
The pull method collects all of the events targeted to this object in
an array at a particular time and returns the array. This method should be
called inside the implementation of the user module after the module is
attached to another module with the “pull” type of connection as event
consumer.
The methods setObjectID and getObjectID set and get, respectively, the object identifier of the
called object (we note that CORBA doesn’t have an exact solution for
identifying objects). The methods setMyProxy
and getMyProxy set and get,
respectively, the proxy created for the called object. These methods are called internally by other methods such as addModule and addContext of the Gateway
interface.
The method setBeanContextChildPeer sets the
implementation object of this interface to
the peer object and is called internally during the
instantiation of this implementation;
setBeanContext sets the parent context of this object to the bc object;
GetBeanContextChildPeer and getBeanContext
get the implementation peer of this interface and parent context, respectively.
The methods addPropertyChangeListener and removePropertyChangeListener add and
remove the property listener object pcl
with a name for fired property events of the called object, respectively; and the methods addVetoableChangeListener
and removeVetoableChangeListener add
and remove the vetoable property listener object vcl with the name for the fired vetoable property events of the
called object. These event-adding and removing methods are called automatically
on behalf of this object during attaching events.
The FireEvent method will be explained later in this chapter, and the saveStateInXml, restoreXMLProperties, saveStateInDataBase, savePropertiesWithJDBC, setEntityFlag,
and getEntityFlag methods are
explained in Chapter 6.3.
|
Interface Iterator{
Boolean hasNext();
Object
next();
Void remove();
};
interface Collection{
boolean add(in Object o) raises (IllegalArgumentException,IllegalStateException,NullPointerException)
;
boolean addAll(in Collection c) ;
void clear() ;
boolean contains(in Object o) ;
boolean containsAll(in Collection c) ;
boolean equals(in Object o) ;
boolean isEmpty() ;
Iterator iterator() ;
Boolean remove(in Object o) ;
Boolean
removeAll(in Collection c) ;
long size()
;
membersArray
toArray() ;
};
|
Table 6.2.
Iterator and Collection interfaces
The Gateway interface (Table 6.3) is the IDL definition of the
so-called “Context” or “Container” that holds the other containers or user
modules. The implementation of this interface, GatewayContextOps, is instantiated whenever one context is added
inside another one through the addContext
call of its parent container, or when the outermost context-acting master
or slave server is started by hand or by URL. This interface provides nested
components with a single point of service discovery and a logical environment for them to live in.
|
Interface DARP;
Interface
GatewayContext:BeanContext, DARP
{
void recoverDownObjects(in string xmlfileName);
void
setChildDeleted(in string childID);
boolean isAllChildrenDeleted();
Object getContext(in
string bindingName);
void deactivate();
void attachPushProperty(in Object
source, in string eventID, //Push Events
in Object
targetObject, in string targetMethod);
void detachPushProperty(in Object
source, in string eventID,
in Object
targetObject, in string targetMethod);
void attachPushVetoableProperty(in
Object source, in string eventID,
in Object
targetObject, in string targetMethod);
void detachPushVetoableProperty(in
Object source, in string eventID,
in Object
targetObject, in string targetMethod);
void attachPushEvent(in Object source,
in string eventID,
in Object targetObject,
in string targetMethod);
void detachPushEvent(in Object source,
in string eventID,
in Object
targetObject, in string targetMethod);
//We give only attach and
detach methods for pull type of events of generic events
// we don’t list the other similar methods for customized
property event and vetoable events.
void attachPullProperty(in Object
source, in string eventID,
in Object
targetObject);
void detachPullProperty(in Object
source, in string eventID,
in Object
targetObject);
//pull events that came into my
mailbox
membersArray pullEvents() ;
void propertyChange(in
event::PropertyChangeEvent evt)
raises
(event::PropertyVetoException); //Event/property adaptor methods
void vetoablePropertyChange(in
event::PropertyChangeEvent evt)
raises(event::PropertyVetoException);
Object addNewModule(in
string productName);
Object addNewContext(in
string contextName) raises(event::PropertyVetoException,NullPointerException);
stringArray getModuleList();
long getMyColor();
string createObjectID(in string
productName);
//remove module
void removeModule(in Object source) ;
void removeContext(in Object source)
;
void removeLocalChildren();
void copyModuleBinding(in Object
sourceModule,in Object there);
//Gateway services methods
Object getService(in
string serviceName);
void addService(in string serviceName);
void revokeService(in string serviceName);
void serviceAvailable(in Object
serviceEvt);
void serviceRevoked(in Object
serviceEvt);
boolean hasService(in string
serviceName);
void addBeanContextServicesListener(in
Object bcsListener);
void
removeBeanContextServicesListener(in Object bcsListener);};
|
Table 6.3.
GatewayContext interface extending Beancontext and DARP interfaces
As a containment service,
the Gateway interface, extending the
Collection interface in Table 5.10,
includes add/remove methods to add or remove an object, specified in their
parameters, to or from the children of the called object. It also includes addAll and removeAll to add and remove a collection of objects, and the clear method to remove all of its
children. In addition, it will provide inquiry methods to check whether one
object or collection of objects exists as a child with contains and containsAll methods, or whether it has empty children with
the isEmpty method. The toArray and iterator methods return the children in an array and in an Iterator object, respectively. We used
these methods to implement our high-level methods inside the Gateway interface.
We assign object identifier (objectID) to each object
instantiated in the system with method createObjectID
that takes the abstract name (relative name) of an object in the productName parameter and returns its
ID. For example, if a user adds a
module with the name “fileManager” to Context with the objectID “uc_1/uc-2”,
then the object ID of this module will be “uc_1/uc_2/fileManager”; getObjectID returns the ID of the
called object.
The addNewModule
method assigns an object ID and the module with the name productName, specified in IDL definition of user modules as string
constant, inserts into this Gateway context. This method creates the proxy
object for this new module instance at the Gateway server holding the
downloaded front-end applet. In a similar way, the addNewContext method adds the new context inside the called context
by instantiating the Gateway object.
RemoveModule and removeContext remove a module and a context, specified with
parameter source from their parent contexts respectively, and disconnect from
the CORBA ORB object. These methods also remove the incoming and outgoing
connections of the source object, if any, and update the related binding
tables. If the removed object is an outermost context, master, or slave server,
it will be deactivated or shut-down immediately; removeContext also recursively
(Depth First Traversal-DFS) visits the children of the object and calls the removeModule or removeContext method for each one, according to the visited child; removeMyself is a general method that
will perform the same function as the addNewModule
or addNewContext method,
depending on which object removeMyself is
called on. The removeLocalChildren
method should be called on a context object, makes DFS traversal over the
children, and calls the removeModule
or removeContext method for each
one, according to the visited child.
Figure
6.1.
The details of how addNewModule is
executed in the Gateway system
As shown in Figure 6.1, the addNewModule method request has an eight-step process. First, the
user sends the addNewModule request
to the proxy object of the context named “uc_1” into which he wants to add a
module named “M.” The proxy forwards
this call to context “uc_1”, which then instantiates the specified module from
Module Factory. The context assigns a unique identifier (objectID) for this
created module object, Mobj, and
returns it to its proxy. The proxy creates a new proxy
for Mobj and adds it to the children of its real corresponding object, context
“uc-1”; addNewContext has the same
semantics as addNewModule, but it
instantiates a context object, not a user module.
The removeModule operation (Figure 6.2) is the most complicated one of
the Gateway methods. As indicated in Figure 6.2, the M1-M2 and M2-M3
connections were established before. First, the user sends a removeModule method call with a
parameter Module M2 object to the proxy of context UC1. Context UC1 then
removes local connections going to or from module M2--currently, there is only
an M2-M1 connection. During its firePropertychangeEvent
method call, the UC1 removes Module M1 and its proxy, PM1, and calls the propertyChange method
of parent context from M1, UC0. Actually, UC1 sends the request to the
proxy of UC0, PUC0, which forwards it to UC0. Finally, UC0 removes the
association entry, M1-M2, from the binding table.

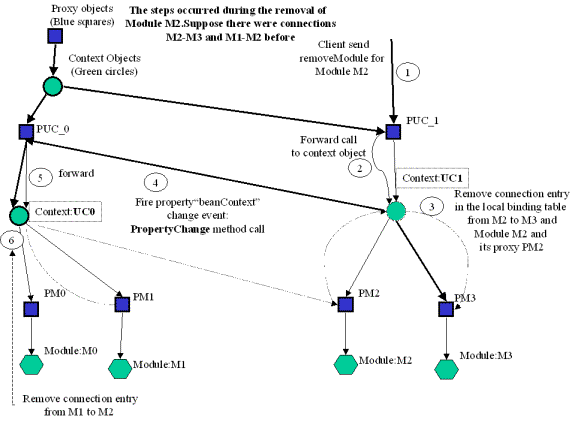

Figure
6.2.
Interaction of objects during the removal of Module M2
The deactivate method is called internally when removeContext encounters a context acting as a server, and will
shut down the server. The copyModuleBinding
first completely copies all incoming and outgoing connections of sourceModule to the target object there, makes a call removeModule method for module sourceModule, and puts the object there into the resulting vacant
position.
There are plenty of event-attaching methods in the
Gateway interface for two types of events: push
and pull. Each event category has
three subcategories--generic event, property event, and vetoable event. The
push type of event has four parameters: the event source object is source, the identifier of the event is eventID, the event target object is target, and the called method of target when the event is fired from the
source object is targetMethod. The fired event is
encapsulated and automatically delivered in a CORBA object on behalf of the fired object.
For a generic push event, attachPushProperty and removePushProperty attach and detach
event binding, respectively. The property push event has attachPushProperty and
detachPushProperty methods to connect and disconnect this type of event.
The vetoable push property has attachPushVetoableProperty
and detachPushVetoableProperty methods
for event connection and disconnection.
The attaching (attachEvent) and detaching (attachEvent) of all types of events can
be pictured as seen in Figure 6.3-6.4. As shown in Figure 6.3, to create an
event binding from module M1 to M0 for event “propName,” the user sends to the
proxy of context UC1 an attachEvent
request with four parameters, PM0 and PM1 (proxies of M0, and M1), “propName,”
and target method of M1, “targetMethod.” Context UC1 removes the association
entry of M1-M0 in its binding table and adds itself as property “beanContext”
change listener of modules M0 and M1.
DetachEvent, as
shown in Figure 6.4, is the opposite
of the attachEvent method call. However, instead of adding itself as
a property listener to modules M0 and M1, UC0 removes itself as a listener for
Modules M0 and M1 if there are no connections to these modules.

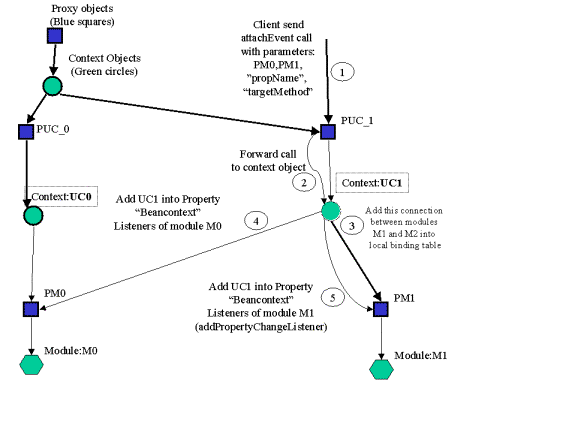

Figure 6.3.
Making an association between Modules M1 and M2.

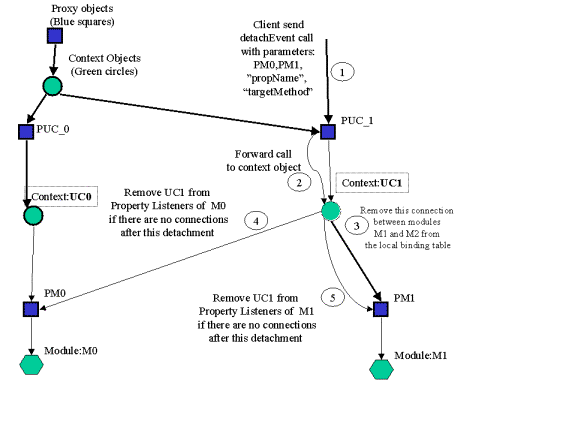

Figure 6.4.
Making a dissociation between Modules M1 and M2
In the pull type of event, an event is not sent
automatically to the target but captured and stored in a buffer area of the
parent context of the firing user module. Therefore, the event target object
has to pull an event explicitly to get it through the pull method call of the BeanContextChild
interface. This pull method actually calls the pullEvents method of the Gateway
interface; pullEvents first detects
the requestor object calling this method and checks any events waiting for this
object, collects them in an array and returns it. Because the target method is
not needed in this type of event call, we dropped the targetMethod parameter. The other three parameters have the same
semantics as the push type of event method.
For a generic pull event, attachPullProperty and removePullProperty attach and detach
event binding, respectively. The property pull event has attachPullProperty and
detachPullProperty methods to connect and disconnect this type of event.
The vetoable pull property has attachPullVetoableProperty
and detachPullVetoableProperty methods
for event connection and disconnection.
The getContext method gives
the context object whose object ID is given in the bindingName parameter, which must include the full path of this
object. For example, in order to find the context with the relative name
“myContext” inside the context with ID “uc_1/uc_2/uc_3”, the user has to
give “uc_1/uc_2/uc_3/myContext” for bindingName.
For persistency,
the Gateway interface has only one method, saveStateInXml.
The way the current state of this object is saved is given by the saveCase parameter. The state of any
context object includes the properties of objects nested recursively inside
this context and the connections among these objects. The input “ascii” of saveCase indicates that the value of
properties is stored as different XML elements that include them in string
type. “Binary” means that properties are saved as binary; saveStateInXml makes a DFS traversal over its nested children
objects and generates an XML document to save their state.
The user also can save the
distributed state with saveStateInDataBase, which stores all the related information about
the application in the database. (It really makes a traversal on the object
tree.) When it encounters a user module, it first saves its attributes such as
object ID, CORBA IOR, parent IOR, and some other information with the method
call savePropertiesWithJDBC. When it
finds a context, it will first save the information about the context object
itself, second recursively its children objects consisting of other contexts
and modules and third translation table holding outgoing connections from
nested modules.
The Gateway system supports a single point of service
discovery. We treat service objects as normal user modules. For this, we have
several methods: addService adds the service with the name serviceName into the children’s list of
this Gateway object by calling the addModule
with the parameter serviceName.
After adding the service object, we call the serviceAvailable method of all the listeners registered by the addBeanContextServicesListener method
call in order to inform them of this new service object.
The getService method looks for the service with an absolute relative
name specified in serviceName and
makes a DFS traversal of the whole hierarchical tree from the root node of the
master server in order to find this service. If it can’t find any, it
instantiates one with the addService
call and returns the created service. During DFS it will try to find one
service whose relative name matches the serviceName
parameter; revokeService is the
opposite of the addService method,
but it will call the serviceRevoked
method, with the input of the removed service object, of all the listeners and
remove these listeners with the removeBeanContextServicesListener
from their parent context; hasService checks whether this
service with serviceName is
available or not.
Two major experiments were our principal accomplishment through
our development of DARP and Gateway. Although we succeeded in using two systems
together in the SC97 demo, we were not able to present a clear architecture of
how these interact with each other. Because WebFlow doesn’t have the capability
of adding DARP functions directly into its middle tier, we will describe the
complete architecture of how DARP and Gateway can work together.
As stated in Section 3, we have a DARP manager that abstracts a parallel
application consisting of multiple nodes into a single node. Through the DARP
manager, the user can control a specific processor node independently of other
nodes. If looked at carefully, it is not difficult to deduce that the manager
functionality should be incorporated into GatewayContext’s
object behavior; that is, GatewayContext and the DARP manager are merged into a
single object. As a result, the manager functionality is implemented as a CORBA
object, and thus DARP’s front end will interact with the manager through CORBA
requests instead of through TCP/IP protocol with XDR encoding. Similarly, the
HPF server gets DARP commands through a combination of send_deferred and poll_response
method calls of the CORBA Object instead of through TCP/IP protocol.
The complete path for sending DARP requests from the
front end to the processor nodes is a somewhat complicated process. For a
processor pX, the front end calls the DARP method, putNextCommand, of the Gateway context object, which stores this
request with its parameters inside a tampon buffer, the requestBuffer. This buffer is also called as a DARP request buffer
that holds requests for each processor. This method call is based on the
asynchronous DII methods, send_deferred
and poll_response. An example
implementation of the putNextCommand
of the manager can be like the method in Table 6.4.
|
/* Put a simple DARP command without parameters for processor pn
into request buffer */
public
synchronized void putNextCommand(String command, int pn)
{
synchronized(requestTable){
Vector list = (Vector)
requestTable.elementAt(pn);
List.add(command); /* append new
incoming command to the list of commands for pn */
RequestTable
[pn] = true;
NotifyAll(); /* make up the
sleeping method getNextCommand */
}
while(!resultAvailable[pn]){ /* loop
back until this DAPR method is processed by processor pn */
try{
wait();
}catch(InterruptedException ex){};
}
resultAvailable[pn] = false;
notifyAll(); /* enable another DARP
command */
/* Get the result from resultTable
that came for this method request,
return the result in either
parameters or as return value of this
method depending on this method */
/* Remember this method is just a simple representative of DARP
methods */
}
|
Table 6.4. A
simple representative DARP method
Processor pX calls
the asynchronous communication method send_deferred,
which actually sends the getNextCommand method request to the
manager to receive the next user command after completing the processing of
the previous DARP command. A possible realization of the manager method, getNextCommand, is shown in Table 6.5.
In TCP/IP-based
implementation of DARP, the HPF server checks any DARP command before each
executable statement of the user code by making a select function call. A new, object-based implementation of the HPF
server makes a poll_response method
call to check whether a response for previous DII request through send_deferred is available.
|
public synchronized String[] getNextCommand(int
pn) /* pn: processor ID */
{
Vector list=null;
while(!requestAvailable [pn]){ /*
check if any DARP command came for me. Otherwise loop back */
try{
wait();
}catch(InterruptedException ex){};
}
Object []olist=null;
Synchronized(requestTable){
Try{/* get the DARP command(s)
from tampon request buffer staying for me */
List =
(Vector)requestTable.elementAt(pn);
}catch(ArrayIndexOutOfBoundsException ex){};
olist = list.toArray();
list.removeAllElements();
requestAvailable[pn] = false;
}
String []rlist = new
String[olist.length];
for(int k =
0;k<olist.length;k++) rlist[k]
= (String)olist[k];
return rlist;
}
|
Table 6.5.
How the DARP server gets the next command from the middle tier
The HPF server gets the DARP
command(s) and processes, if any are available, and calls the putNextResult method of the manager to
put the previous DARP command result into the resultBuffer of the manager. The resultBuffer, like the DARP request buffer, keeps results and has
as much size as clients registered into this manager. A possible implementation
of putNextResult can be made as
follows:
After the result arrives at
the manager and is put into the slot specified in the DARP result table, the
current DARP request, waiting for this result, wakes up and gets the result
from the resultBuffer. Then the
current request returns the result either in parameters or as a return value,
depending upon which DARP method is being used. This is a possible solution
because of the Java security sandbox problem. If you sign the front-end applet,
we can interpose a CORBA event channel between the manager and the applet,
which runs a CORBA server, registers the server with the channel, and gets
automatic notification of the command results. All of these invocation
sequences are illustrated in Table 6.6.
|
Public synchronized void
putNextResult(String result, int pn)
{
synchronized(resultTable){
/* find the entry inside resultTable for processor pn
*/
Vector list = (Vector)resultTable.elementAt(pn);
list.add(result); /* append the result of previous
command into this entry */
resultAvailable[pn] = true;
notifyAll(); /* wake up the client waiting */
}
}
|
Table 6.6. How
the DARP server puts the result of a previous client command into the middle
tier
As shown in Figure 6.5,
multiple clients can connect and register with a running parallel application
organized and orchestrated by the DARP manager, and each client can access the
state of application through the DARP data-access methods and steer and control
the application through collaboration with each other.
Notice that for each DARP
command in the previous TCP/IP-based implementation we have a CORBA method in
the WebClowContext interface. All the semantics of the DARP commands are
reflected in the matching interface method. Configuration and the starting and
stopping of parallel applications are achieved through the DARP manager. SciVis
visualization and instrumentation servers can be attached into the Gateway
system as a Gateway service. As a result, we have a completely distributed
program development environment. Notice also that instrumentation can be
performed by directly using YACC and LEX with necessary actions attached to the
end of matching grammar productions instead of by using SAGE++. These actions
will produce the instrumented program, inserting HPF server calls and the
function calls for registering program variables.

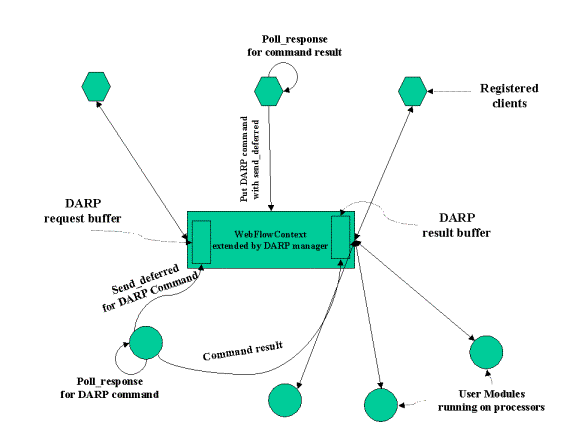

Figure 6.5. How the DARP server, middle tier, and
client interact with each other to fully control the distributed execution
Interface DARP{
Typedef
sequence<long> longArray;
typedef sequence<any> anyArray;
Typedef struct basicCommandDataDef {
String commandName;
Long lineNumber;
Long pid;
Long errorCode;
}basicCommandData;
typedef struct
dataAccessResultDef{
basicCommandData
basicData;
longArray
dataDesc;
any dataValue;
}dataAccessResult;
typedef struct
protoTypingResultData{
basicCommandData
basicData;
any
dataValue;
}protoTypingResult;
any getNextReqFromManager();
void putPrevReqResult(in
any theResult);
//Data access methods
void displayVariable(in
long pn,
in string varName, out
dataAccessResult theResult);
void displayArraySection(in
long pn,
in string varName,
in string arraySectionStmt,
out dataAccessResult theResult);
void setVariable(in long
pn, in string varName,
in any varValueout ,
out basicCommandData
theResult);
void setParallelVariable(in long pn,
in string varName, in any varValue
out basicCommandData theResult);
//prototyping commands
void
createInterpretedStmts(in long pn,
in string stmt,
out protoTypingResult theResult);
void interpretStmts(in long
pn,
in string functionFromStmts,
out protoTypingResult theResult);
void setSciVisEnv(in long
pn, in long port,
in string port ,
out protoTypingResult theResult);
void getSciVisFuncList(in
long pn,
out protoTypingResult theResult);
void sendLocalVariables(in
long pn,
out
protoTypingResult theResult);
|
void sendLocalVariables(in
long pn,
out
protoTypingResult theResult);
void addSciVisFunc(in long
pn,
in string funcName,
in long lineNumber,
out protoTypingResult theResult);
void deleteSciVisFunc(in
long pn,
in string funcName,
in long lineNumber,
out protoTypingResult theResult);
void
getActionLineNumbers(in long pn,
out protoTypingResult theResult);
void
getFunctionParamNames(in long pn,
in string funcName,
in long lineNumber,
out protoTypingResult theResult);
void
storeCurrentConfiguration(in long pn,
in
string configFileName,
out protoTypingResult theResult );
void getProfilingInfo(in
long pn,
out protoTypingResult theResult);
void
getConfigurationFileNames(in long pn,
out
protoTypingResult theResult);
void readParseTreeinfo(in
long pn,
out protoTypingResult theResult);
//Control commands
void pause(in long pn,
out basicCommandData theResult);
void putBreakOn(in long pn,
in long lineNum,
out basicCommandData theResult);
void putBreakOff(in long
pn, in long lineNum,
out basicCommandData theResult);
void stepInto(in long pn
,
out basicCommandData theResult);
void stepOver(in long pn
,
out basicCommandData theResult);
void multipleStepInto(in long pn,
in long numOfSteps,
out basicCommandData
theResult);
void multipleStepOver(in long pn,
in long numOfSteps,
out basicCommandData theResult);
void multipleLoppIteration(in long pn,
in long
numOfSteps,
out basicCommandData theResult);
void continue(in long
pn,
out basicCommandData theResult)
void moveStackDown(in long
pn,
out basicCommandData theResult);
void moveStackUp(in long
pn,
out basicCommandData theResult);
}
|
Table 6.7. DARP
interface
We briefly describe the DARP methods that correspond
to commands in a TCP/IP-based implementation. When a method of the DARP manager
is called, it gets the input parameters, constructs CORBA DynAny data from them, and inserts this into the requestBuffer. Each user module running
on a processor gets this DynAny
through asynchronous calling of the getNextReqFromManager
method and extracts information from it, depending on the called DARP method
and the process being used. After the user module finishes processing, it
constructs special struct data, fills up its member values, and sends the
struct to the manager inside any
CORBA data by calling the putPrevReqResult
method, which, for example, creates struct data of protoTypingResult for prototyping commands. PutPrevReqResult, finally, puts the received result data into the resultBuffer. The wakened-client DARP method pulls this result of
CORBA any from the resultBuffer, sets the special struct
of this DARP method, and returns.
We have a prototype of Gateway persistency and configuration
model based on XML and database (ORACLE). The user can choose either XML or
database, or switch back-and forth between these two choices (Figure 6.6). Our
persistent model is not a general model, but for each module the user can
define which attributes should be stored in its IDL files. We use attributes as
a way of notifying the state changes of objects to others with a JavaBeans
event model. State updates are encapsulated in event objects. We define three
types of properties: general property, customized property, and vetoable
property.
Figure
6.6. Gateway Persistency Model
The user can define the attribute types of his modules by extending from
the corresponding base interface in the idl file. The base interfaces of three
attributes are shown in Table 6.8. Each extends from the baseAttribute interface, which has a group of management methods
for attributes sent in events. The parseXmlValue
method of the baseAttribute
interface produces an XML definition of the indicated attribute. The parseSimpleAttribute, parseStructAttribute, and parseSequenceAttribute methods take
stringfied values of the attributes of simple, struct, and sequence types,
respectively and convert them to CORBA ANY
data type. The Gateway middle
tier calls these methods to start or save a distributed application description
in XML; setNewValue and getNewValue help to set and get the
attribute value in CORBA ANY data
format. Gateway has an IDLtoXML translator that
takes the user attribute definitions in the idl file and produces
implementation helper classes for each user-defined attribute.
For example, in defining a user IDL file (Table 6.9) for the timer module
below, the user defines three types of attribute: timerEvent, timerProperty,
and timerVetoableProperty, which indicate general property, customized
property, and vetoable property, respectively, and which are extended from
three different interfaces. Each attribute interface has a field of constant
string “attributeName,” whose value is used to identify this attribute in the
Gateway system. The “value” field holds the actual value of an attribute. As
seen, one more level of abstraction for defining user attributes is used to
distinguish three types of attribute (Table 6.9), and to assign an abstract
name to the attribute in order for the user to access it in his application
codes. Once the user has defined the attribute interface, it can be used to
define an attribute in the “timer” module interface.
|
//Base interface for all event types
interface baseAttribute{
Object
getSource();
void setSource(in Object
source);
string
getPropertyName();
any getNewValue();
void setNewValue(in any
newval);
any getOldValue();
void setOldValue(in any
newval);
string
parseXmlValue();
void
parseSimpleValue(in string value);
void
parseStructValue(in stringArray values, in longArray dims);
void
parseSequenceValue(in stringArray values,in longArray dims);
};
interface PropertyChangeAttribute:
baseAttribute {}; //Property change event
interface VetoableChangeAttribute:
baseAttribute {}; //Vetoable property change event
interface GenericAttribute: baseAttribute {};
//Generic event
|
Table 6.8.
Base attribute and three different attributes extending from the base
Keeping
the module descriptions in an XML document has some benefits. First, the front
end will use these descriptions to instantiate modules, make connections
between modules, and configure modules. Second, the middle tier mainly uses
this document to store and recover the distributed state of modules with their
attributes whenever necessary. This makes it possible for the user to feed the
initial values of the module attributes and other environmental values through
the XML document. Third, it supports the saving/restoring of the distributed
configuration that the user created during the application development process.
The values of the attributes of running modules can be stored either as binary
or text. If stored in text form, the user will have an opportunity to edit and
to update the last state of the modules in the XML. Later, the user can
incarnate the distributed configuration with these updated values of module
properties or connections. A simple module definition in the file “test1.xml”
is shown in Table 6.9.
|
//test1.xml
//an array definition
typedef
sequence<long> longArray;
//a structure
typedef struct
timerstruct{
longArray pastValues;
string currenttime;
}STRUCT_1;
typedef
sequence<STRUCT_1> structArray;
//another structure
typedef struct
anothertimerstruct{
structArray pastValues;
double currenttime;
}STRUCT_2;
//for general property
interface
timerEvent:event::GenericAttribute{
const string
attributeName="timerEventData";
attribute string value;
};
//vetoable property
interface
timerVetoableProperty:
event:: VetoableChangeAttribute
{
const string
attributeName =
"timerVetoablePropertyData";
attribute STRUCT_2 value;
};
|
//customized property
interface timerProperty:event::PropertyChangeAttribute{
const
string
attributeName="timerPropertyData";
attribute STRUCT_1 value;
};
interface
timer_1:BeanContextChild{
const string
moduleName="timerModule_1";
attribute timerEvent genericTimerEvent;
attribute timerProperty
timerPropertyEvent;
attribute timerVetoableProperty
timerVetoableEvent ;
//other user module methods
void method_1(in string p1, in long
p2);
void method_2();
};
interface
timer_2:BeanContextChild{
const string
moduleName="timerModule_2";
//other user module methods
void targetMethod(in timerEvent tevent);
};
|
Table
6.9. An IDL definition file of an example user
module.
|
//store this XML
document in file “module_properties.xml”
<UserModule idlFile="test1.idl"
componentID="timerModule_1">
<repositoryID>IDL:Gateway/test/timer_1:1.0</repositoryID>
<properties>
<simpleDef attID="timerEvent" eventType="genericEvent">
<wrapper_interface>IDL:Gateway/test/timerEvent:1.0
</wrapper_interface>
<simple type="string"
name="genericTimerEvent">
<description>this is optional desctiption</description>
<repositoryID>string</repositoryID>
</simple>
</simpleDef>
<structDef attID="timerProperty"
eventType="propertyEvent">
<wrapper_interface>IDL:Gateway/test/timerProperty:1.0
</wrapper_interface>
<struct type="struct" name="timerPropertyEvent">
<description>this is optional desctiption</description>
<repositoryID>IDL:Gateway/test/timerstruct:1.0</repositoryID>
<sequence type="sequence<long>"
name="pastValues">
<description>this is
optional desctiption</description>
<repositoryID>IDL:Gateway/test/longArray:1.0</repositoryID>
</sequence>
<simple type="string" name="currenttime">
<description>this is optional desctiption</description>
</simple>
</struct>
</structDef>
<structDef
attID="timerVetoableProperty"
eventType="vetoableEvent">
<wrapper_interface>IDL:Gateway/test/timerVetoableProperty:1.0
</wrapper_interface>
<struct type="struct"
name="timerVetoableEvent">
<description>this is optional desctiption</description>
<repositoryID>IDL:Gateway/test/anothertimerstruct:1.0</repositoryID>
<sequence
type="sequence<alias>"
name="pastValues">
<description>this is optional desctiption</description>
<repositoryID>IDL:Gateway/test/structArray:1.0</repositoryID>
</sequence>
<simple type="double" name="currenttime">
<description>this is optional desctiption</description>
</simple>
</struct>
</structDef>
</properties>
<methodList>
<method
name="method_1" returnType="void">
<parameter name="p1" type="string"/>
<parameter name="p2" type="long"/>
</method>
<method
name="method_2" returnType="void"> </method>
</methodList>
</UserModule>
<UserModule
idlFile="test1.idl" componentID="timerModule_2">
<repositoryID>IDL:Gateway/test/timer_2:1.0</repositoryID>
<methodList>
<method name="targetMethod"
returnType="void">
<parameter name="tevent" type="IDL:Gateway/test/timerEvent:1.0"/>
</method>
</methodList>
</UserModule>
|
Table 6.10.
XML description of user IDL file in Table 6.9
IDLtoXML translates user module IDL
definitions with their attribute types to XML documents. Using this translator, we can generate module descriptions in the XML document from
the information of the user module IDL files, as is done in Table 6.10 for the
user module definition of IDL interfaces in Table 6.9. As seen in the above
translation, we currently support basic types (integer and string, etc.),
array, and structure types. IDLtoXML also produces helper classes for user-defined attributes,
as explained above. We show the definition of two methods of helper class,
generated automatically by IDLtoXML (Table 6.11) for the timerVetoableProperty
of the user module in Table 6.9.
A user can use the system in two ways: either through
direct middle tier API or through the job descriptions in an XML document file
(Figure 6.6). It is possible to make a transformation among three different
environments: a standalone Gateway application, XML space, and a database with
an integrated collection of Gateway objects. The user can create a distributed
application through direct use of Gateway API or describe his application in
XML and submit it to the middle tier which parses it and makes it run. During
the course of the application’s run, he may request the middle tier to
translate the distributed state to an XML document or to database tables. The
user also can store the XML version of the application into the database. If
the user is working on continuous running sessions, after getting each
intermediate result, the state can be converted into XML. The result values can
be inspected and modified, and another session started with new initial
parameter values.
We will give one simple
example of using API. We can create the indicated connection (Figure 5.6)
between modules M1 and M2, including instantiation of them and their contexts
with Gateway
API calls are shown in Table
6.12. Assume that master M and slaves S1 and S2 were started manually or
through URL, and also assume that modules M1 and M2 represent two modules,
timer_1 and timer_2, as defined in the IDL file shown in Table 6.9.
|
public void
parseStructValue(String []values, int []dims){
int next = 0;
WebFlow.translator_exam1.anothertimerstruct attValue ;
attValue = new
WebFlow.translator_exam1.anothertimerstruct();
attValue.pastValues =
new WebFlow.translator_exam1.timerstruct[dims[0]];
for(int i0=0;i0< dims[0];i0++)
{
attValue.pastValues[i0].pastValues
= new int[dims[1]];
for(int i1=0;i1< dims[1];i1++)
{
int t_3 =
Integer.parseInt(values[next++]);
attValue.pastValues[i0].pastValues[i1] = t_3;
}
String t_4 = values[next++];
attValue.pastValues[i0].currenttime =
t_4;
}
double t_5 =
Double.parseDouble(values[next++]);
attValue.currenttime = t_5;
value(attValue);
}
public String parseXmlValue(){
String xmls = "";
xmls += " <propertyVal
attrRef=\""+"timerVetoablePropertyData"+"\">\n";
WebFlow.translator_exam1.anothertimerstruct attValue = newValue;
xmls += " <structVal>\n";
xmls += " <sequenceVal>\n";
for(int i0=0;i0< attValue.pastValues.length;i0++){
xmls += " <structVal>\n";
xmls += " <sequenceVal>\n";
for(int i1=0;i1<
attValue.pastValues[i0].pastValues.length;i1++){
xmls += "
<simpleVal>"+String.valueOf(attValue.pastValues[i0].pastValues[i1])+"</simpleVal>\n";
}
xmls += " </sequenceVal>\n";
xmls += "
<simpleVal>"+String.valueOf(attValue.pastValues[i0].currenttime)+"</simpleVal>\n";
xmls += " </structVal>\n";
}
xmls += " </sequenceVal>\n";
xmls += "
<simpleVal>"+String.valueOf(attValue.currenttime)+"</simpleVal>\n";
xmls += " </structVal>\n";
xmls += " <propertyVal>\n";
return xmls;
}
|
Table 6.11.
The definition of two methods for the Helper class of user attributes
After the user constructs a
simple, distributed configuration of Figure 5.6, the complete current state in
XML can be saved by sending the saveStateInXml
method call to the master server. In the opposite direction, the user may
assign new values of attributes in the XML document by using the restoreXMLProperties method. If the user initialized all of the attributes of timer_1 and
timer_2 modules (Table 6.9), we can automatically get the XML document in Table
6.13 from the middle tier. Later, the user can restore the old configuration in
Figure 5.6 simply by sending the XML document (Table 6.13). Thus the user has
the flexibility of choosing API-method calls or specifying that the entire
abstract job be in XML in order to construct his application. One of the
greatest benefits of saving the state in XML is that the user can later inspect
the stored modules’ attributes and update them for the next iterations of the
run if he chose the strategy of saving attributes as ASCII. If the user doesn’t
want to inspect the saved attributes, they can be stored as binary in an XML
document. Notice that the attributes in the XML file shown in Table 6.13 were
given random values in user-module code and saved as ASCII.
|
org.omg.CORBA.Object s1_obj, s2_obj,uc1_obj,
uc2_obj,m1_obj,m2_obj;
GatewayContext
uc1, uc2,s1,s2;
//get
IOR string from fixed url
String
ref = getIORFromURL(masterURL);
//convert
IOR to corba object
org.omg.CORBA.Object
obj = orb.string_to_object(ref);
//narrow
corba Object to specific corba server type
GatewayContext
master = GatewayContextHelper.narrow(obj);
//get
the proxy reference of slave server S1
s1_obj
= master.getContext(“M/S1”);
s1
= GatewayContextHelper.narrow(s1_obj);
//add
new user context with name “uc1”
uc1_obj
= s1.addNewContext(“uc1”);
//narrow
it to WebFowContext
uc1
= GatewayContextHelper.narrow(uc1_obj);
m1_obj
= uc1.addNewModule(“timerModule_1”);
//get
the proxy reference of slave server S2
s2_obj
= master.getContext(“M/S2”);
s2
= GatewayContextHelper.narrow(s2_obj);
//add
new user context with name “uc2”
uc2_obj
= s2.addNewContext(“uc2”);
//narrow
it to WebFowContext
uc2
= GatewayContextHelper.narrow(uc2_obj);
m2_obj
= uc1.addNewModule(“timerModule_2”);
//Finally
make “push” type of connection between modules M1and M2. Make sure you issue
the “attachPushEvent” //command to the parent of event source where M1 is the
source of event.
uc1.attachPushEvent(m1_obj,"
timerEventData",m2_obj,"targetMethod");
|
Table 6.12. These Gateway API calls construct the
configuration in Figure 5.6
|
<GatewayContext componentID="M">
<GatewayContext componentID="M/S2">
<GatewayContext componentID="M/S2/uc2">
</GatewayContext>
<connections >
</connections
>
</GatewayContext>
<GatewayContext componentID="M/S1">
<GatewayContext componentID="M/S1/uc1">
<ModuleInstance>
<componentRef>timerModule_2</componentRef>
<moduleID>M/S1/uc1/timerModule_2</moduleID>
</ModuleInstance>
<ModuleInstance>
<moduleID>M/S1/uc1/timerModule_1</moduleID>
<propertyInstances>
<propertyVal
attrRef="timerPropertyData">
<structVal>
<sequenceVal>
<simpleVal>1</simpleVal>
<simpleVal>2</simpleVal>
<simpleVal>3</simpleVal>
<simpleVal>4</simpleVal>
</sequenceVal>
<simpleVal>startTime</simpleVal>
</structVal>
<propertyVal>
<propertyVal
attrRef = "timerVetoablePropertyData">
<structVal>
<sequenceVal>
<structVal>
<sequenceVal>
<simpleVal>1</simpleVal>
<simpleVal>2</simpleVal>
<simpleVal>3</simpleVal>
<simpleVal>4</simpleVal>
</sequenceVal>
<simpleVal>startTime
</simpleVal>
</structVal>
|
<structVal>
<sequenceVal>
<simpleVal>1</simpleVal
<simpleVal>2</simpleVal>
<simpleVal>3</simpleVal>
<simpleVal>4</simpleVal>
</sequenceVal>
<simpleVal>startTime</simpleVal>
</structVal>
</sequenceVal>
<simpleVal>3333.55</simpleVal>
</structVal>
<propertyVal>
<propertyVal attrRef="timerEventData">
<simpleVal>Tue May 18
13:48:12 EDT
1999
</simpleVal>
<propertyVal>
</propertyInstances>
</ModuleInstance>
<connections >
</connections >
<connections >
<connect
eventRef="timerEventData"
typeOfConnection
= "push">
<sourceObject>
<moduleRef>M/S1/uc1/timerModule_1
</moduleRef>
</sourceObject>
<targetObject>
<moduleRef>M/S1/uc1/timerModule_2
</moduleRef>
<targetMethod>targetMethod
</targetMethod>
</targetObject>
</connect>
</connections >
</GatewayContext>
<connections >
</connections >
</GatewayContext>
<connections >
</connections >
<connections >
</connections >
</GatewayContext>
|
Table
6.13. This XML document is saved if the user issues a saveStateInXML request to the master server. In addition, the user
can construct the configuration in Figure 5.6 with this document
In order for the job (Table 6.13) to start, all
specified Gateway servers have to be
started manually or in another way such as through URL. In order to start a Gateway server automatically if it is
down during the instantiation of the Gateway context and the user modules
represented in XML, we have another way of configuring entire distributed
application that includes Gateway
servers. In Table 6.13 we always describe modules before their instantiation in
the document. If we are using module declarations in several places, this will
cause multiple module descriptions in different XML documents. To solve this
problem, we benefited from the XML ENTITY
element with which we could put one module description in an
URL-addressable location and point to that place every time we used it.
|
<?xml
version="1.0"?>
<!DOCTYPE distributed_application SYSTEM
"webflow.dtd" [
<!ENTITY
timer-master-decls
SYSTEM
"http://osprey2:1998/WebFlow/module-decls/master-module.xml">
<!ENTITY
timer-slave-decls
SYSTEM "http://osprey2:1998/WebFlow/module-decls/slave-module.xml">
]>
<distributed_application>
<WebFlowContext
componentID="ntserver"
servlet_href="http://osprey2:1998/servlets/wfm?installer="http://osprey2:1998/WebFlow/module-decls/master-module.xml""
entityFlag="no"
>
//insert module declaration sitting another WEB site
&timer-master-decls;
<WebFlowContext
componentID="uc_1" entityFlag="no">
<WebFlowContext componentID="uc_2"
entityFlag="no">
<WebFlowContext componentID="uc_3"
entityFlag="no">
<ModuleInstance>
<componentRef>helloModule_1</componentRef>
<moduleID>ntserver/uc_1/uc_2/uc_3/helloModule_1</moduleID>
//Here skipped for clarity necessary module instantiations
with their attributes
// and connections among them
</WebFlowContext>
<WebFlowContext
componentID="mickey"
servlet_href="http://osprey2:1998/servlets/wfm?installer="http://osprey2:1998/WebFlow/module-decls/slave-module.xml""
entityFlag="no"
>
</WebFlowContext>
//insert module declaration sitting another WEB site
&timer-master-decls;
//Do some module instantiations and connections among
them
</WebFlowContext>
</WebFlowContext>
</WebFlowContext>
</distributed_application>
|
Table 6.17.
Solving multiple declarations of modules with the XML ENTITY element
For example, as shown in Table 6.17, we have two module
declarations staying at two different WEB locations and we have declared no
modules but put a pointer to their declaration locations. Notice also that for Gateway contexts running as separate
processes-Gateway server, we have
the servlet_href attribute whose
value tells the URL address of the installer servlet for this Gateway server.
For this type of configuration, we must make all of the servlets specified
under servlet_href it running. When
the Gateway middle tier parses the application in a XML document and finds a
context that has a servlet_href
attribute, it will simply invoke that servlet, which in turn starts the
specified Gateway server and returns its IOR. The user will then start any
number of WEB servers only one time. Later he can start and configure an
arbitrarily distributed application in a tremendously efficient and simple way,
which proves the simplicity of configuring and maintaining the Gateway system.
Gateway has simple fault tolerance only at the time a proxy at the root
of the Gateway server or real remote
user module is down. This model is not able to solve a problem when a
communication link between interacting objects is down. It will use a
combination of the resources of a Monitor Servlet, WEB servers, Database, and
CORBA Interface Repository to fix a problem that may occur when the
user-distributed application is running. We will briefly explain how this
process takes place.
Two principal problems may occur in the Gateway system: Either a module
proxy living in the root of the Gateway server or in the remote module object
may be down. We need to consider the worst possible scenario; which is that
multiple proxies and remote modules can go wrong simultaneously, in which case
the recovery algorithm shouldn’t fail.
First of all, the user, who wants to roll back a module when a fault
occurs, has to set it as an entity module by calling setEntityFlag. The user normally sets the entity flag when it is
created and added into a context. Only modules having entity flags set will be
recovered. With the entity flag set, the state of a user module is stored
across its method invocations with the savePropertiesWithJDBC method call.

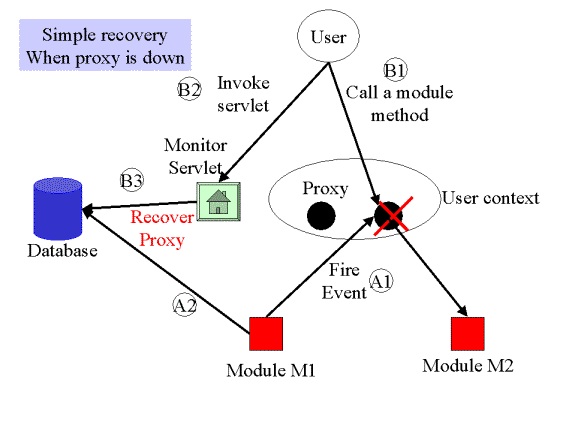

Figure 6.7. Recovering proxy module in root
Gateway server
As shown in Figure 6.7, it is deduced the a proxy object is down when
the client tries to access to a remote module or when another module wants to
send an event to the remote module corresponding to that proxy. Actually, that
event is intercepted by the proxy and forwarded to the remote object when the
normal case continues. Transparently from the user, the module that sends an
event query the database to find the previous state of the session and creates
a new proxy for the remote module. The user must invoke a servlet without any
parameters when he discovers a proxy is down.
Because in Gateway's current architecture
all proxy objects are created in the master Gateway server, recovery from the
state of the master server being down is more complicated than that described
above. This state is detected when a client tries to make a call for one
module. When the host for the master
server is down, we may face single-point failure. If this is the case, we can
try to configure the master server at a different active host. It is possible
to distribute proxy objects across different hosts, but this configuration will
not provide a solution for the Java sandbox problem.
In
the second scenario (Figure 6.8), a remote module is discovered to be down when
the proxy of this remote object tries to call one of its methods. The user
faces this condition when trying to call the method of a remote object or when
another proxy tries to send an event to that same remote object. The proxy gets
an exception showing that the remote object is down and it looks for the previous
state in the database and recreates the remote object and re-sends the previous
method call that was interrupted because of the remote object’s failure.

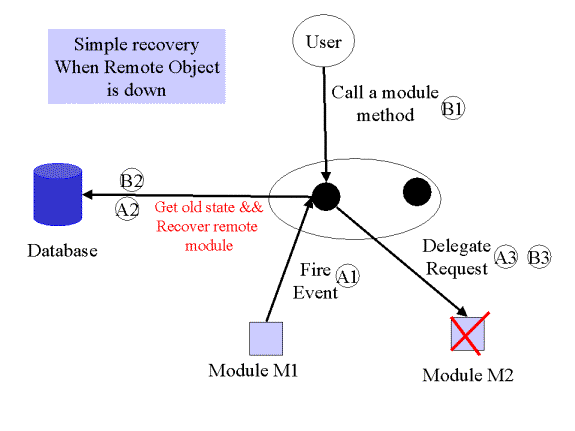

Figure 6.8. Recovering a remote user module

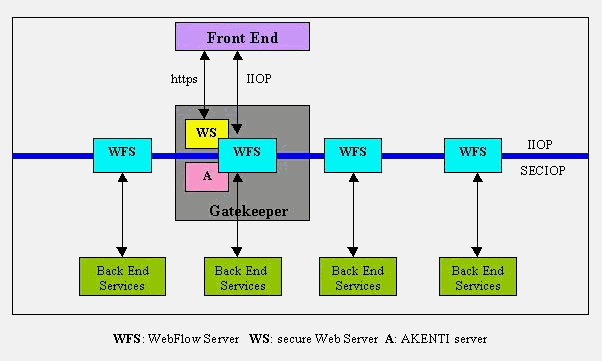

Figure 6.9. Gateway Security Architecture
The Gateway middle tier is given by a tree of CORBA-based Gateway
servers, one of which serves as a gatekeeper
(Figure 6.9). The gatekeeper
comprises three logical components: a (secure) Web Server, the AKENTI server,
and the CORBA-based Gateway server. The user accesses the Gateway system
through a portal web page from the gatekeeper’s web server. The portal
implements the first layer of gateway security, the authentication and
generation of credentials that eventually will be used to grant the user access
to resources. The authorization process is controlled by the AKENTI server. For
each authorized user, the web server creates a session (that is, it
instantiates the user context in the Gateway server, as described below) and
gives permission to download the front-end applet that is used to create or
restore, run, and control user applications. The applet communicates directly
with the CORBA-based Gateway server using IIOP protocol. We currently use
secure ApacheSSL and JigsawSSL commodity web servers.
The Gateway system supports a three-layer
security model (Figure 6.10). The first layer is responsible for secure web
access to the system and for establishing the user’s identity and credentials.
The second layer enforces secure interactions between distributed objects,
including communications between peer Gateway servers and the delegation of
credentials. The third layer controls access to back-end resources. In each
case we follow industry standards or participate in the creation of standards.

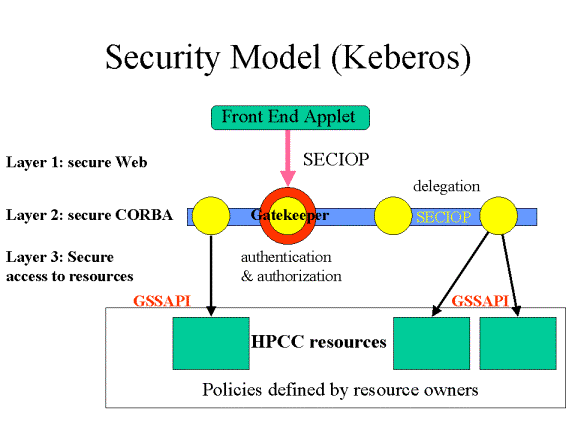

Figure 6.10. Gateway Security Model
To implement secure web transactions we use
industry-standard https protocol and commodity-secure web servers. The server is configured to mandate a mutual
authentication. To make a connection, the user must accept the server’s X.509
certificate (both Netscape and Internet Explorer web browsers support this
feature) and must present his or her certificate to the server. A commercial
software package (Netscape’s certificate server) is used to generate the user
certificates, and they are signed by the Gateway certificate authority (CA).
Since the certificates are generated in PKCS#12 format and are supported by
Netscape and Internet Explorer web browsers, they are handled transparently by
the browser.
The authorization process is controlled by the AKENTI server
[AKENTIWeb], which provides a way to express and to enforce an access policy
without requiring a central enforcer and administrative authority. Its
architecture is optimized to support security services in distributed network
environments.
This component of security services provides access for authorized
users only to the Gateway server associated with the gatekeeper, following
policies defined in AKENTI (and thus representing the stakeholders’ interests).
Access to peer Gateway servers and to back-end services is controlled
independently by level-two and level-three gateway security services based on
credentials generated during the initial contact with the gatekeeper.
Security features of CORBA are built directly into ORB and are
therefore very easy to use. Once the user’s credentials are established, secure
operations on distributed objects are enforced transparently. This includes
authorized use of objects, and optional per-message security (in terms of
integrity, confidentiality, and mutual authentication).
Access control is based on the access control lists (ACL), which
provide the means to define policies at different granularity from an
individual user to groups defined by a role, and from a particular method of a
particular object to computational domains. In particular, the role of a user
can be assigned according to policies defined in AKENTI. In this way, access to
the distributed objects can be controlled by the stakeholders.
In addition, for security-aware applications, the CORBA security
service provides access to the user’s credentials, thus allowing access to the
back-end resources to be controlled by the owners of the resources and not by
the Gateway system, which merely forwards the credentials.
The CORBA security service is defined as an interface, and the OMG
specification is neutral with respect to the actual security technology to be
used, which can be implemented on top
of PKI technologies (such as SSL), private key technologies (such as Keberos),
or GSS-API, to mention the most popular ones.
Distributed objects are inherently less secure than traditional
client-server systems. An enhanced risk level comes, among other factors, from
the fact that objects often delegate parts of their implementation to other
objects (which may be dynamically composed at runtime), thus allowing objects
to serve simultaneously as both clients and servers. Because of subclassing,
the implementation of an object may change over time. The original programmer
neither knows nor cares about the changes. The policy of privilege delegation
is therefore a very important element of system security. CORBA is very
flexible here, and supports no delegation model (the intermediary object uses
its own credentials), a simple delegation model (the intermediary object
impersonate the client), and a composite delegation (the intermediary object
may combine its own privileges with those of the client). We follow the
composite model. For security-unaware applications, we use the intersection of
the client and intermediary privileges. However, if the application applies its
own security measures, we make the initiator credentials available to it.
There are no widely accepted standards for secure access to resources.
Different computing centers apply different technologies: SSH, SSL, Keberos5,
or others. The design goal of the Gateway system is to preserve the autonomy of
the owner of the resources to define and implement security policies. In this
respect, we are in a situation similar to that of other research groups that
try to provide a secure access to remote resources. Our strategy is to
participate in the process of defining standards within DATORR and the common
Alliance PKI infrastructure. It seems that the current preference is to build
future standards on top of the GSS-API specification (and thus to simultaneously
support private and public key-based technologies). The Globus project
pioneered this approach, and we therefore use Globus GRAM to provide secure
access to remote resources. To get access to resources available via GRAM the
user must present a certificate signed by the Globus CA (currently an
additional item of the Gateway user set of credentials).
The model offers a simple interface to complete the
middle tier so that the user will use the API of the GatewayContext object, both to manage the life cycle of the nested
user modules and to establish an association among the modules. In addition, GatewayContext will be used to control
and steer user modules at a fine-grained level. This indicates that the
complete architecture will provide both fine-grained and course-grained
monitoring, and the tuning of applications consists of single or multiple user
modules. We have arrived at what we proposed at the beginning of this thesis.
Services like databases, visualization, and instrumentation can be attached to
any context so that any module in any context can access this service
transparently. This transparency is achieved by interpreting an entire
meta-application as a single unit, which is a hierarchical tree that composes a
heterogeneous application. After the user sets up the application and initiates
it, the application may be monitored at both the message level and at the
lowest level, statement by statement. A generated proxy for each user module or
context performs message-level steering. Line-by-line debugging is achieved
through DARP methods of GatewayContext.
Notice that we have a prototype system that combines distributed- object-level
computing and parallel computing with simple, high-level debugger functionality.
Managing and establishing a
distributed and parallel system is performed by a high-level facility, CORBA,
but high performance is satisfied with the help of commodity parallel
libraries, MPI, PVM or Globus whenever needed.
CHAPTER
7 Gateway Applications
We
have applied Gateway for two projects: LMS (Landscape Modeling System) and QS
(Quantum Simulation). I developed the Gateway infrastructure and the middle
tier backbone, and Tomasz Haupt was the principal coordinater in applying it
for LMS and QS. However, I also
participated in these applications by
developing several modules, including the File Browser and File Transfer
Progress modules.
7.1
LMS
The LMS project was sponsored by the U.S. Army Corps of
Engineers, Waterways Experiment Station (CEWES), Major Shared Resource Center
(MSRC) at Vicksburg, MS, under the DoD HPC
Modernization Program, Programming Environment and Training (PET). The pilot
phase of the project can be described as follows. A decision-maker (the end
user of the system) wants to evaluate changes in vegetation in some
geographical region over a long period caused by some short-term disturbance
such as fire or human activities. A critical parameter of the vegetation model
is the conditioning of soil at the time of the disturbance. This, in turn, is
dominated possibly by rainfall, at some time. Consequently, the implementation
of this project requires:
·
Data retrieval from remote sources,
including DEM (data elevation models) data, land use maps, soil textures, and
dominant flora species and their growing characteristics,
to name a few. The data are available from many sources, including public
services such as USGS web servers and proprietary databases. The data come in
different formats and with different spatial resolutions. Without WebFlow, the data must be manually
prefetched.
·
Data preprocessing to prune and convert the
raw data to a format expected by the simulation software. This preprocessing is
performed interactively using the WMS [WMSWeb] (Watershed Modeling System)
package.
·
Execution of two simulation programs EDYS
[WMSWeb] for vegetation simulation, including disturbances, and CASC2D [WMSWeb]
for watershed simulations during rainfalls. The latter results in the
generating of maps of the soil condition after the rainfall. The initial
conditions for CASC2D are set by EDYS just before the rainfall event, and the
output of CASC2D after the event is used to update the parameters of EDYS. We
used test data sets for time periods with at least two rainfalls. Consequently,
the data transfer between the two codes had to be performed several times
during one simulation. EDYS is not CPU-demanding, and it is implemented only
for Windows95/98/NT systems. On the other hand, CASC2D is very computationally
intensive and is typically run on powerful UNIX compute servers.
·
Visualization of the results of the
simulation. Again, WMS is used for this purpose.
Figure
7.1. Logical structure
of the LMS simulations implemented by this project
The purpose of this project was to demonstrate the feasibility of
implementing a system that would allow the complete simulation to be launched
and controlled from a networked laptop. We successfully implemented it using
WebFlow with WMS and EDYS encapsulated as WebFlow modules running locally on
the laptop, and CASC2D executed by WebFlow on remote hosts, either at CEWES in
Vicksburg, MS, or at NPAC in Syracuse, NY. We demonstrated the system using a
Pentium II-based laptop running Windows NT located in Washington, DC, (with
CASC2D running at Vicksburg) and in Orlando, FL, during Supercomputing ’98
(with CASC2D running alternatively at Syracuse and Vicksburg).
The casc2d [CASCD] and Edys [EDYS] codes
were developed independently of each other. We cannot provide many details on
these codes, as that goes beyond our expertise. Please contact the authors of
the codes directly for further information. The discussion presented here is
rudimentary and concentrates on issues directly relevant to WebFlow-based
implementation.
Casc2d simulates watersheds. It runs in a loop over rainfall events, and
in each iteration of the loop the program simulates water flow in the area of
interest. Once the simulation of the rainfall event is completed (according to
some predefined criteria), the simulation switches to a “dry” mode in which the
program simulates the condition of soil in the absence of precipitation. A new
rainfall starts a new iteration.
Edys simulates the evolution of
vegetation, taking into account the soil condition at the beginning of
simulation. During the simulation, averaged precipitation data is used rather
than data describing actual rainfall, event after event. Edys runs for a
specified time period, and before it exits it saves its state on a disk which
means that the simulation can be resumed later.
The accuracy of the Edys simulation can be improved by coupling it with
casc2d, that is, by feeding Edys with accurate data on soil condition after
each rainfall. We implemented the coupling in the following way (cf. Figure
7.2). The simulation starts with casc2d (on a host running Unix). It reads its
input files and determines the time of the first rainfall. It writes the data
to the disk and starts the loop over events. However, in each iteration, before
proceeding with the simulations, casc2d waits until new data on the soil
condition generated by Edys are available. Technically, every ten seconds it
checks the modification time of its input files.
In the meantime, the data written by casc2d are sent to the host running Edys
(a laptop running Windows NT). The received data include the date of the next
rainfall. The Edys simulation is launched and continues until that date. The
simulation program exits, and its output files are sent to the host of casc2d.
Casc2d detects the arrival of the new data and resumes the simulations. As soon
as the current simulation is completed, casc2d saves the results to a file and
begins a new iteration. The results are
sent to the laptop, Edys is run until the next event, and its output is sent to
the Unix host to let casc2d continue. This pattern is repeated until all
rainfall events are processed, casc2d exits, and the final run of Edys is
performed. The run terminates at a predefined date, typically 20 years after
the first rainfall.
Figure 7.2. Exchange of
data between casc2d (left-hand side) and Edys (right-hand side). It is
important to note that casc2d is run only once. It pauses while waiting for the
new data and quits only after all events are processed. In contrast, Edys is
launched each time the data are needed.
Figure
7.3. WebFlow implementation of LMS
This application requires two computational modules: one encapsulating
EDYS to be run on a WindowsNT box, and the other encapsulating CASC2D to be run
on a Unix workstation. Consequently, we need two application contexts, one on
each machine. As usual, we also need the master server, which we place on the
WindowsNT box (Figure 7.3) because we run the client application there. In
addition, we run Web servers on both machines which are needed primarily to
exchange data between the modules. We also publish the master IOR on the Web
server on the WindowsNT side.
The servers can be started manually by feeding the different
configuration files into XML documents or through servlet calls to the Web
servers on which the WebFlow servers live.
The servers can be accessed by WebFlow API calls that are part of the LMS
front end. With the master and slave servers started before, the code segment
in Figure 7.4 creates the state in Figure 7.3. First, the client initializes the ORB object (line 1),
and then reads an IOR of the master server from the URL (line 3). For the IOR it creates a CORBA object obj
(line 4) and casts it to the correct type: WebFlowContex (line 5). Now it can
call methods of this object. In lines 9 and 10 it uses the method
getContext(serverName) to retrieve references to both slave servers. It adds
module “runEdys” to the ntserver context (line 11) and module “runCasc2d” to
osprey4 contexts (line 12). In line 13 it casts obj p2 to type runCasc2d, as it
needs to invoke one of its methods (in line 16). Then it connects the modules,
event “EdysDone,” fired by module runEdys, will invoke method “runAgain()”
of module runCasc2d , and event
“casc2dDone,” fired by runCasc2d, will invoke method “receiveData()” of runEdys. Now everything is ready to start
the execution, which is triggered by invoking method run() of module runCasc2d.
Instead of API calls (Figure 7.4),
the application can be defined by a static XML document (Table 7.1), available
from a Web server, and instantiated dynamically at runtime. Moreover, the
modification of the application will be possible just by editing the XML file
without introducing any changes to the code.
Notice that to prepare Table 7.1, the
user first passes the module IDL interface file through our IDL-to-XML
translator and gets a “properties.xml” XML document which he should include in
preparing the XML configuration file. The user manually starts only the master
server that starts the other slave servers. The master parses the document
(Table 7.1) and starts any slave server specified by the WebFlowContext XML
element, if necessary, by making a URL request to the address given by the servlet_href attribute.
Module runCasc2d is started from the front end by invoking its run()
method, which creates a new Java thread that runs casc2d code in a separate
process. It then invokes the waitForData() method, which waits until casc2d
generates the first data set for Edys, copies the files to a location seen by
the Web server, and fires event “Casc2dDone” that invokes the run() method of
run Edys.
|
1. ORB orb = ORB.init(args, new
java.util.Properties());
2. String masterURL = args[0];
3. String ref=getIORFromURL(masterURL);
4. org.omg.CORBA.Object
obj=orb.string_to_object(ref);
5. WebFlowContext
master=WebFlowContextHelper.narrow(obj);
6. WebFlowContext slave;
7.
try {
8.
org.omg.CORBA.Object p1,p2;
9.
slave1=WebFlowContextHelper.narrow(master.getContext(“master/ntserver”));
10.
slave2=WebFlowContextHelper.narrow(master.getContext(“master/osprey4”));
11. p1 = slave.addNewModule(“runEdys”);
12. p2 = slave.addNewModule(“runCasc2d”);
13. runCasc2 rc=runCasc2dHelper(p2);
14.
master.attachPushEvent(p1,”EdysDone”,p2,”runAgain”);
15.
master.attachPushEvent(p2,”Casc2dDone”,p1,”receiveData”);
16.
rc.run();
17. } catch(Exception e) {};
|
Figure 7.4. WebFlow API calls to construct the configuration in
the Figure 7.3
<?xml
version="1.0"?> <!DOCTYPE distributed_application SYSTEM "webflow.dtd" [
<!ENTITY propfile SYSTEM "properties.xml"
> ]><distributed_application>
<WebFlowContext
componentID="master "
servlet_href=" http://maine.npac.syr.edu:8001/startMaster">
<configFile>
<master localFile=”D:\Jigsaw\Jigsaw\WWW\Gateway\IOR\master.ref
"
idlFilesDir="D:\IDLS"> </master>
</configFile>
<WebFlowContext
componentID="ntserver "
servlet_href=" http://maine.npac.syr.edu:8001/startSlave”>
<configFile>
<slave masterURL=”http://maine.npac.syr.edu:8001/Gateway/IOR/master.ref"
idlFilesDir="D:\IDLS"> </slave>
<!-- include properties file -->
&propfile;
<implementation>
<moduleImpl
componentRef=”edyModule "
implClass="
WebFlow.lms.runEdysImpl ">
</moduleImpl>
</implementation>
<configFile>
<ModuleInstance>
<componentRef>
edyModule </componentRef>
<moduleID>master/ntserver/edyModule</moduleID>
</ModuleInstance>
</WebFlowContext>
<WebFlowContext
componentID="osprey4"
servlet_href=" http://maine.npac.syr.edu:8001/startSlave”>
<configFile>
<slave masterURL=”http://maine.npac.syr.edu:8001/Gateway/IOR/master.ref"
idlFilesDir="/usr.local/haupt/IDLS"> </slave>
<!-- include
properties file --> &propfile;
<implementation>
<moduleImpl
componentRef=”casd2dModule"
implClass="WebFlow.lms.runCasc2dImpl"> </moduleImpl>
</implementation>
<configFile>
<ModuleInstance>
<componentRef>casd2dModule</componentRef>
<moduleID>master/osprey1/casd2dModule</moduleID>
</ModuleInstance>
</WebFlowContext>
<connections >
<connect eventRef="timerEvent"
typeOfConnection="push">
<sourceObject>
<moduleRef>
master/ntserver/edyModule</moduleRef>
</sourceObject>
<targetObject>
<moduleRef>
master/osprey1/casd2dModule </moduleRef>
<targetMethod> runAgain </targetMethod>
</targetObject>
</connect>
<connect
eventRef="timerEvent" typeOfConnection="push">
<sourceObject>
<moduleRef>
master/osprey1/casd2dModule </moduleRef> </sourceObject>
<targetObject>
<moduleRef>
master/ntserver/edyModule </moduleRef>
<targetMethod> receiveData </targetMethod> </targetObject>
</connect></distributed_application>
|
Table 7.1. Abstract job
specification in XML document for configuration in Figure
7.3
When Edys fires the “EdysDone” event, the runAgain() method of runCasc2d
is invoked. This method receives data from Edys (using the Java URLconnection
class to access files from the Web server on the Edys host), and executes the
UNIX touch command on a selected control file. By “touching” this file we
change the ‘last modified’ property of that file, and this triggers casc2d to
resume its operations. The controls then go to the waitForData() method,
described above.
The RunEdys module is triggered by the Casc2dDone event that invokes the
receiveData() method. First, a file options.txt is generated. This file defines
the input parameters: start date of the simulation (StartDay), number of days
to be run (DayDiff), parameter 3, which is a toggle to switch the Edys
visualizations on and off, and parameter 4, which defines disturbances, if any.
Then the data from the Web server of the casc2d host are downloaded. Finally,
the Edys code is launched. After it is completed, its output is copied to a
location seen by the Web server, and the “EdysDone” event is fired.
The sendData() method (which is identical in both modules) actually does
not send any data. Instead, it copies data from the Edys (or Casc2d) working
directory to a document directory of the Web server. This step could be avoided
by letting the codes write and read their input and output files directly from
the WebServer. This would require slight modifications of these codes, and we
had no access to their sources.
This pilot
implementation of the Web-based LMS does not require any powerful computational
resources, and consequently we provided only a limited support for back-end
services. In particular, we simply used the Java Runtime class to run the
WebFlow modules on the same host on which the WebFlow server runs. As discussed
in Section 7.3, we are prepared to provide a secure access to remote,
high-performance resources when needed.
For this project we developed a custom front end implemented as a Java
application (as opposed to Web-accessible Java applets). There are several
reasons for that, one of which is that we were explicitly asked to do so.
Second, we did it for performance reasons. Finally, the front end is an
extension to the WMS system that needs to be installed on the client side. Thus
it does not really matter if the extensions to WMS are downloaded as applets each
time the LMS is run, or downloaded once and stored permanently on the client
machine.
Figure 7.5. LMS front-end
main panel
The WMS program (Watershed
Modeling System) is a rich collection of tools for pre- and post-processing
data. Furthermore, it allows us to run the simulation locally and visualize the
results. WMS is available on many platforms, including Windows 95/98/NT and
numerous varieties of Unix.
We made
WMS the centerpiece of our front end. We enhanced it by providing the
capability to import raw data sets directly from the Internet, submitting the
simulations to remote hosts and, as described above, making different
simulations interact with each other. Consequently, the LMS front end consists
of three parts: data wizard, WMS, and job submission. Each part is accessible
by pressing the corresponding button on the LMS main panel (Figure 7.5).
The data wizard panel (Figure 7.8) allows us to select the data type to
be retrieved (currently, we support DEM and Land Use maps) and to define the
region of interest. This can be done either by directly typing coordinates of
the bounding box into the provided text fields, or by drawing boundaries of the
region on a map. In the latter case, the position of the rectangle is
automatically translated into coordinates.
Figure 7.8: LMS front-end data wizard
panel
Next, the
coordinates are translated into names of the corresponding set of maps
available from the USGS web site, and the selected maps are downloaded,
uncompressed, and saved in a directory accessible by the WMS package.
The WMS button on the main panel
starts the WMS program on the local host by the using the Java Runtime class in
a separate thread. The WMS controls are available during the entire LMS session
Figure 7.6. A screen-dump of a WMS session: in the central window
just downloaded DEM data are displayed. The raw data must be pre-processed now,
including selecting a watershed region, smoothing, and format conversion.
.
7.1.9 Simulations
The functionality of this part
can be deduced from the above. Figure 7.7 shows the front-end panel that is
used to start the simulations.
Figure 7.7. LMS front-end
simulation panel.
As shown in Figure 7.7, the
controls allow for selecting the simulation mode: Casc2d alone, Edys alone, and
both simulations coupled, as described in Section 4.3. In the latter case, the user also provides
the end date of the Edys run, Edys visualization toggle and disturbances, the
directory that contains casc2d input data files and, finally, the user selects
the host on which the casc2d simulation is to be run. This part of the front
end acts as a client to the middle-tier services, and it communicates with the
WebFlow servers using CORBA IIOP.
As a test
application for WebFlow, we selected Quantum Simulations [QSWeb]. The motivation of designing QS algorithms
arises from considerations of the computational complexity of solving the
Schrodinger equation for systems of many electrons, resulting in calculating
electronic structure, as opposed to the methods of expanding the wave function
in a basis. By complexity, we mean simply the computation time of some property
of a system to some specified absolute error that must be a “true” error as a
combination of the system and statistical errors. In order to get errors
accurately, we couldn’t use methods such as the density functional theory
within the local density approximation (LDA) or the generalized gradient
approximation (GGA). We have to use algorithms based on a complete
representation of many-body wave functions that have exponential computation
time in the number of electrons. One example algorithm, the configuration
interaction (CI) expands the wave function in Slater determinants of one-body
orbitals. Whenever an atom is added to the system, an additional number of
molecular orbitals must be considered and the total number of determinants to
reach chemical accuracy is then multiplied by this factor. As a result, we got
an exponential running time in terms of the number of electrons. Quantum
simulation constructs the wave equation (or N-body density function) by
sampling it and therefore it doesn’t need its value everywhere. The complexity
then usually has some power (1-4) of the number of particles. Therefore, we
have to use parallel machines to solve QS by evenly distributing the needed
computational load across processors.
This
application can be characterized as follows. A chain of high-performance
applications (both commercial packages such as GAUSSIAN or GAMESS, or custom
developed) is run repeatedly for different data sets. Each application can be
run on several different (multiprocessor) platforms and, consequently, input
and output files must be moved between machines. Output files are visually
inspected by the researcher; if necessary, applications are rerun with modified
input parameters. The output file of one application in the chain is the input
of the next one, after a suitable format conversion. The logical structure of the
application is shown in Figure 7.8
Figure 7.8. Logical structure of the Quantum Simulation application
This example
meta-application demonstrates the strength of our WebFlow approach. The WebFlow
editor provides an intuitive environment to visually compose the chain of
data-flow computations from preexisting modules. The modules encapsulate many
different classes of applications, from massively parallel to custom-developed
auxiliary programs to commodity commercial ones (such as DBMS or visualization
packages). The seamless integration of such heterogeneous software components
is achieved by employing distributed-objects technologies in the middle tier.
The high- performance part of the back-end tier is implemented using the GLOBUS
toolkit. In particular, we use MDS (metacomputing directory services) to
identify resources, GRAM (globus resource allocation manager) to allocate
resources that include mutual, SSL-based authentication, and GASS (global
access to secondary storage) for a high-performance data transfer. The
high-performance part of the back-end is augmented with a commodity DBMS
(servicing Permanent Object Manager) and LDAP-based custom directory service to
maintain geographically distributed data files generated by the Quantum
Simulation project.
The diagram illustrating the WebFlow implementation of the Quantum
Simulation is shown in Figure 7.9.
Figure
7.9. WebFlow implementation of the Quantum
Simulations problem
WebFlow can be applied to many different applications. At Supercomputing
'97 [DARPSC97] we demonstrated two other applications, one of which was an
AVS-like [AVSWeb] image processing. Here we took advantage of our
platform-independent design (implemented in Java) to integrate computations
running on both UNIX and Windows-NT systems. The other application employed
HPF-based back end. More specifically, we demonstrated the DARP system [DARP98ACMJava], an integrated environment
for compiled and interpreted HPF wrapped as a WebFlow module. A typical WebFlow
visual graph of an Quantum Simulation application is shown in Figure 7.10.
Figure 7.10. Example WebFlow Session of QS
CHAPTER
8 - Conclusions
We have developed a
platform-independent, three-tiered system with visual authoring tools
implemented in the front end and integrated with a middle-tier network of
servers. It is based on industry standards and follows a distributed-object
paradigm, facilitating a seamless integration of commodity software components.
In particular, we used Gateway as a
high-level, visual user interface for GLOBUS, which not only makes the
construction of a meta-application much easier for an end user, but also allows
this state-of-the-art HPCC environment to be combined with commercial software
that includes packages available only on Intel-based personal computers.
We used
Gateway to provide a seamless access to remote resources for the two
applications that required it. For LMS we used Gateway to retrieve data from
many different sources as well as to allocate the remote computational
resources needed to solve the problem at hand. Gateway transparently controls
the necessary data transfer between hosts. Quantum Simulations requires access
to HPCC resources and we therefore layered Gateway on top of the Globus
metacomputing toolkit. We admit that Gateway does not yet comprise a complete
solution for seamless access to remote resources, and many issues --notably
security-- still remain to be solved. We expect to leverage from the recent
DATORR (Desktop Access to Remote Resources) an initiative of the Java Grande
Forum when tackling these issues.
Exploiting
our experience in developing the WebFlow system, we designed and implemented a
new system, Gateway, to provide
seamless and secure access to computational resources at ASC MSRC. While
preserving the original three-tiered architecture, we re-engineered the
implementation of each tier in order to conform strictly to the standards. In
particular, we used CORBA and the Enterprise JavaBeans model to build the new
middle tier, which facilitates the seamless integration of commodity software
components. Database connectivity is a typical example of a commodity software
component. However, the most distinct feature of the Gateway system is that we
apply the same commodity-components strategy to incorporate HPCC systems into
Gateway architecture. By implementing the emerging standard interface for
metacomputing services, as defined by DATORR, we provide a uniform and secure
access to high-performance resources. Similarly, by conforming to the Abstract
Task Descriptor specification we enable seamless integration of many different
front-end, visual-authoring tools.
In addition to composing meta-application with our
visual tools, we provided fine-grained control on each component, written in
HPF, of a meta-application with DARP, which we successfully incorporated into
the Gateway system. By reusing commodity components and technologies we have
built this powerful tool, DARP, for data analysis and rapid prototyping to be
used by an HPF application developer. The most important feature of the system
is interactive access to distributed data, which, in turn, makes it possible to
select and send data to a visualization system at an arbitrary point of the
application execution. Also, data can be modified using either native HPF
commands or dynamically linked computational modules. If the user spots a place
in an application, he can stop the method execution and go into details by
using DARP control and prototyping commands.
Consistently
with our HPcc strategy, the DARP system implements a three-tiered architecture:
The Java front end holds proxy objects produced by an HPF front end operating
on the back-end code. These proxy objects can be manipulated with an
interpreted Web client interacting dynamically with compiled code through a
typical tier-2 server (middleware). Although targeted for an HPF back end, the
system's architecture is independent of the back-end language and can be
extended to support other high-performance languages such as HPC++ or HPJava by replacing the corresponding parser for
target language with an HPF parser. Finally, since we followed a
distributed-objects approach, the DARP system can easily be incorporated into a
collaboratory environment such as Tango or Habanero. There are other solutions
for client-side collaboration that will be explained in Section 8.1.
By
adopting the architecture of commodity systems, we have made it easier to track
their rapid evolution and we expect this will give high functionality to HPCC
systems. Whenever high performance is needed, we delegate that task to the
high-performance back end with Globus. As basic commodity technology evolves
from the servlet and socket-based framework of WebFlow to the “Distributed
Object Technology” architecture of Gateway, we preserve a high performance. We
strongly believe that this comes from our three-tiered commodity-architecture
system. The same scenario occurred in our DARP system. As we reengineered the
DARP to couple it strongly with the Gateway middle-tier from the client-server model,
we lost nothing in performance but gained much in flexibility and
functionality.
From the user’s point of
view, an XML-powered abstract job specification makes it easy to establish
distributed application. In addition, after a user creates and starts an
application, it can be saved in its complete state in an XML document. By
“state,” we mean the attributes of the user modules in an IDL interface and the
hierarchy of the distributed objects and the connections among them. A user can later restore a saved application
and may edit the attributes of the modules and update the next startup.
Other than using XML to accomplish a persistency model,
we also have the facility of using the database to store the distributed state.
We used JDBC connection protocol to carry out the saving and restoring of a
complete picture of a current user session.
There is
dependency on the SAGE++ product to instrument user module source code. Because
we have many available parsers for most languages, the DARP system can be
extended to support the C++ and Java languages by simply annotating the YACC
parser of the corresponding language to be
instrumented. In this way, we can remove the SAGE++ dependency.
In the integrated environment of
Gateway with DARP, it is possible to establish associations among completely
different applications in addition to establishing connections among individual
modules. For these cases, DARP and Gateway are capable of extracting, and
collecting data from the application modules and sending it to another
application via the high-performance globus
communication lines, TCP/IP, CORBA IIOP, or PAWS [PAWSWeb].
Our
architecture of Gateway allows us to put security and transaction protocol into
the proxy code. We already have a simple transaction mechanism that allows the
proxy to intercept a request before it is delivered to the user module. The
proxy code saves or restores the user properties of the back-end module through
the JDBC connection to the Oracle database. Therefore, Gateway can be extended
to a similar EJB development environment. By using the newly emerging CORBA
facility, POA (Portable Object
Adapter), Gateway can have more robust and dynamic behavior.
There are
two ways to achieve the sharing and interactions of front-end pages. One is by
using the powerful event mechanism of JavaScript 1.3, and another is by
implementing the front end as JavaBeans components.
With the
new event model, a window or document object can intercept events
generated by nested JavaScript objects such as Button, TextField, etc. By
putting any JavaScript page into a virtual JavaScript window, we can catch all events fired by components of the original
page. We can establish a collaborative environment in which the captured events
are sent to our Gateway middle-tier,
which keeps them until other collaborators pull them explicitly in an
asynchronous way. Each virtual JavaScript window
object in a collaborative
environment parses the received event and routes it through the calling routeEvent method of a window object. Also, as we establish
connections between back-end user modules we can create connections between
front-end pages. Again, the Gateway
middle tier can easily be employed for this purpose. In this case, the translation table incorporated into Gateway will hold the identifications
of front-end pages instead of the assigned names of the user modules, and the
rest of the parameters for attaching two front-end pages are the same. Note
that the front-end pages behave as clients, as opposed to the back-end user
modules, which work as a CORBA server. Because of this, we have to use the pull
type of Gateway event-attaching
model to connect front-end pages.
The second
method of collaboration is just to define the front end as JavaBeans
components. The Gateway middle tier will again behave as a centralized place to
which the fired events of front-end pages arrive, and other collaborators will
explicitly pull the received events and update their pages. The event transport
mechanism is hidden from users. Again, we put the user’s JavaBeans-defined page
into a virtual JavaScript or Java window that has the same behavior as defined
above. We can use the live-connect facility of Netscape if the window is JavaScript-based.
Otherwise, we define a Java-based virtual window, which has the same capability
as a JavaScript-based one.
We propose a framework in which a user’s COM modules
can work together with CORBA modules. As previously noted, we create a proxy in
the host of the master Gateway server for each instantiated user module. All of
the interactions between user modules and GatewayContext objects pass through
these proxy objects. We strongly believe that a proxy can be written as a
mixture of the codes of CORBA and COM. This proxy can implement both the DynamicImplementation interface of
CORBA and the IDispatch interface of
COM; that is, it will have automation facility. Thus, the proxy will function
as both a CORBA object and a COM component.
Another use
for Gateway is as a firewall. We can base an application-level firewall on top
of generated proxies that relay GIOP messages between users and their back-end
modules. Remember that all of our user modules are always interacting with each other through proxies so that we have a two-way
communication mechanism between any two modules, including callbacks. Because
we can insert security protocol into the proxy, our firewall already has a
secure channel. The security and transaction protocols for user modules can be
handled transparently by the Gateway middle tier.
We can
configure the proxy generated for each user module so that we can realize two
styles of connection through a GIOP Proxy, normal
and passthrough. In a normal
connection a proxy can monitor the GIOP traffic, which causes two security
issues. First, a client would not want the proxy to examine the traffic.
Second, the client and server may be using an authentication and/or encryption
mechanism that is unknown to the proxy. Both of these cases can be solved by a passthrough connection that simply
forwards all of the GIOP messages it receives to the appropriate party.
We have three enterprise
component models: CORBA Component Model (CCM), Enterprise JavaBeans (v1.1)
(EJB) and DCOM/COM, and ongoing research product DOE Common Component
Architecture (DCCA). The CCM specification was released first and EJB has
adopted very similar architecture except that EJB is designed specifically for
the Java language. Currently, only the COM model and early versions of EJB have
been implemented. Therefore, we will compare the Gateway with them by looking
at their current specifications.
COM, CCM, DCCA and Gateway have
event models, but EJB does not. CCM uses a subset of CORBA’s notification
service, which is a more extended version of the previous CORBA event service.
Gateway has event service similar to that of CCM. DCCA adopted the
“provides/uses interface” rule of CCM where the “provides” interface acts as an
event listener and “uses” interface plays as an event subscriber. COM has the
“provides/uses” concept for communicating events between COM objects.
CCA, EJB and Gateway have been
using XML for persistency, while DCCA does not yet have persistency a model.
Because COM is a binary-standard model, it saves components in binary
format.
CCA and EJB have the HomeBase interface for entity objects,
but not for Session objects to create and find objects. For entity objects, the
user has to implement this interface with a Naming service or with JNDI.
Gateway already has Naming service functionality incorporated into the core
Gateway code. CCA and EJB are not able to put hierarchy on several containers
and nested components but the most important aspect of Gateway is that it permits the user to view many components running
on different locations as a single component and can look for any one. COM has Monikers as a naming service, but DCCA
has no naming service concept.
Gateway, CCA and EJB all have
the capability of intercepting user requests before delivering them to a real
remote object. CCA and EJB have container tools to generate specific proxy
objects for each component, but Gateway has a generic proxy for all components.
COM also has some sort of functionality of this kind in its specialized
transaction monitor MTS. DCCA doesn’t
have this property yet.
CCM and EJB have to work with a
database to keep persistency of objects, but Gateway can work with either
Database and/or XML files, and both of these formats can be translated to each
other to save the state of objects. We haven’t modified IDL syntax for Gateway,
but EJB, CCM, and DCCA need to extend the base of IDL grammar. COM already has
a mature IDL syntax.
Gateway, CCA, and EJB have the
capability of assigning attributes to components by defining them in IDL and
giving initial values in XML documents. DCCA does not yet have this
functionality.
Gateway has nice architecture for adding some user-specific service
objects. As explained in previous chapters, Gateway service is nothing more
than an object. Therefore, we add service to the Gateway context as we do for a
module, except that parent context has to inform all the registered objects
waiting for this service by calling their “serviceAvailable”
method. However, finding a service is a bit different. The user has to ask a
Gateway context object to find any object that is reachable from this context
in the object tree, and the user can find any service attached to any part of
the object tree. COM, EJB, and DCCA do not have this functionality.
8.5 Lessons
learned from Gateway
Because
Gateway is a component-based development (CBD) environment, it provides the
user
with many properties of CBD that furnish
the following benefits:
1.
Fast development that enables programmers to build solutions faster by
assembling software from pre-built parts.
2.
Lower integration costs that provide a common set of interfaces for software
programs from different vendors, meaning that less custom work is required to
integrate components into complete solutions.
3.
Improved deployment flexibility, making it easier to customize a software
solution for different areas of a company simply by changing some of the
components in the overall application.
4.
Lower maintenance costs, isolating software functions into discrete components
that provide a low-cost, efficient mechanism with which to upgrade a component
without having to retrofit the entire application.
We
have demonstrated the Gateway with the adaptation of legacy software
applications such as QS and LMS.
Gateway is a highly-generic, multi-purpose and extendible component
model that actually has a platform-independent and three-tiered system and can
be customized for different environments such as telecommunication, E-commerce,
etc. A user who wants to develop a
package from scratch with Gateway will first break up the solution for a
problem into simple components and their information exchange mechanism. Ready-to-use components will probably be
used then, and the user's own new
components may also be written in. After that,
Gateway can be used to configure, deploy and connect the components. In
this way, complex HPCC packages can be developed and deployed by project
members working concurrently. Thus HPCC can have
quick
development and deployment with lower maintenance costs. If monolithic software
approach were taken, then integration, maintenance, and customization of
different software modules would be difficult, because modules would be very
large and difficult to handle. Using Gateway for simple projects might not be
of much benefit, but for large projects
it will decrease by an incredible amount the time required for development and
deployment. Although training people is very important for selling a
product, even non-technical people can use Gateway simply by writing an XML
document to customize and define a distributed application.
Gateway
will need a visual development environment like BDK (the Javabeans development
environment). Currently, it has some browser-based interfaces to customize and
run specific projects running across the Internet under the Gateway system. We
need a more generalized interface to compose distributed applications visually.
We may use VGJ [VGJWeb] or GEF [GEFWeb] to achieve this goal or we can create
our own visual front-end. Gateway provides the properties, fired events, and
other related information for each user module as an XML document to build this
visual interface. All of this
information is used by the interface to configure individual modules and
connect them through event and property binding to compose complex distributed
applications from the modules.
[ABCH95pooma] S. Atlas, S. Banerjee, J. Cummings, P.
Hinker, M. Srikant, J. Reynders, and M. Tholburn, “POOMA: A High Performance
Distributed Simulation Environment for Scientific Applications,” Proceedings of Supercomputing '95, San
Diego, CA, December 1995.
[AKENTIWeb] S. S. Mudumbai, W. Johnston,
M. R. Thompson, A. Essiari, G. Hoo, K. Jackson, Akenti – A Distributed Access
Control System, home page: http://www-itg.lbl.gov/Akenti
[AM94poet]
R. Armstrong and J. Macfarlane, “The Use of Frameworks for Scientific
Computation in a Parallel Distributed Environment,” Proceedings of the 3rd IEEE Symposium on High Performance Distributed
Computing, San Francisco, CA, August 1994, pp. 15-25.
[APACHEWeb]
Home page http://www.apache.org
[ASWB95zoom] C. Anglano, J.
Schopf, R. Wolski, and F. Berman, Zoom, “A Hierarchical Representation for
Heterogeneous Applications,” University of California, San Diego, Department of
Computer Science and Engineering, Technical Report CS95-451, January 1995.
[AVSWeb] Advanced Visualization System, http://www.avs.com/
[BBB96atlas] J. Baldeschweiler, R. Blumofe, and E. Brewer, “ATLAS:
An Infrastructure for Global Computing,” Proceedings
of the Seventh ACM SIGOPS European
Workshop: Systems Support for Worldwide Applications, Connemara, Ireland,
September 1996.
[BDGM96hence] A. Beguelin, J. Dongarra, A. Geist, R.
Manchek, K. Moore, and V. Sunderam, “Tools for Heterogeneous Network
Computing,” Proceedings of the SIAM
Conference on Parallel Computing, 1993.
[BM95hetero] F. Berman and R. Moore,
eds., “Heterogeneous Computing Environments,” Working Group 9 Report from the Proceedings of the 2nd Pasadena
Workshop on System Software and Tools for High Performance Computing
Environments, January 1995.
[BRRM95gems] B. Bruegge, E. Riedel, A. Russell, and G.
McRae, “Developing GEMS: An Environmental Modeling System,” IEEE
Computational Science and Engineering, Vol. 2, No. 3, Fall 1995, pp.
55-68.
[CASCD]
Fred Ogden, University of Connecticut, ogden@eng2.uconn.edu
[CD96netsolve] H. Casanova and J. Dongarra, “Netsolve: A
Network Server for Solving Computational Science Problems,” Proceedings of Supercomputing '96, Pittsburgh,
PA, November 1996.
[CDHH96toomo] J. Cuny, R. Dunn, S. Hackstadt, C. Harrop,
H. Hersey, A. Malony, and D. Toomey, “Building Domain-Specific
Environments for Computational Science:
A Case Study in Seismic Tomography,” International
Journal of Supercomputing Applications and
High Performance Computing, Vol. 11, No. 3, Fall 1997.
[CDK94ds] G. Coulouris, J. Dollimore, and T. Kindberg, Distributed Systems: Concepts and Design, 2nd Edition,
Addison-Wesley, Inc., New York, NY,
1994.
[CH94p2d2] D. Cheng and R.
Hood, “A Portable Debugger for Parallel and Distributed Programs,” Proceedings of Supercomputing '94,
Washington, D.C., November 1994, pp. 723-732.
[COMWeb] COM Home Page
http://www.microsoft.com/com
[CumulvsWeb] James Arthur Kohl and Philip M. Papadopoulos, "The
Design of CUMULVS: Philosophy and Implementation," in PVM User's Group
Meeting, Feb 1996. http://www.epm.ornl.gov/cs/cumulvs.html
[DARP98ACMJava] Erol Akarsu, Tomasz
Haupt and G. Fox, DARP: Java-based Data Analysis and Rapid Prototyping
Environment for Distributed High Performance
Computations, ACM 1998 Workshop on
Java for High-Performance Network
Computing.
[DARP98Conc]
Erol Akarsu, Tomasz Haupt and G. Fox, DARP: Java-based Data Analysis and Rapid Prototyping
Environment for Distributed High Performance Computations, Concurrency:Practice
and Experience , Vol. 10(1),
1-9(1998).
[DARPSC97]
G. Fox, W. Furmanski and T. Haupt, SC97 handout: High Performance Commodity
Computing (HPcc), http://www.npac.syr.edu/users/haupt/SC97/HPccdemos.html
[DARPWeb] E. Akarsu, G. Fox, T. Haupt, "The DARP System,"
http://www.npac.syr.edu/users/haupt/HPFI
[DiscWHPCN97]
K.A.Hawick, H.A.James, C.J.Patten and F.A.Vaughan, “DISCWorld: A Distributed
High Performance Computing Environment,” Proc.
of High Performance Computing and Networks (HPCN) Europe '98, Amsterdam,
April 1998.
[EDYS] Edys has been written by Michael
Childress, Shepherd Miller, Inc.,
mchildress@shepmill.com
[EJBWeb] Enterprise JavaBeans http://java.sun.com/products/ejb/
[ETM95taxonomy] I. Ekmecic, I. Tartalja, and V.
Milutinovic, EM3: “A Taxonomy of Heterogeneous Computing Systems,” IEEE Computer, Vol. 28, No. 12, December 1995, pp. 68-70.
[FalconWeb] Karsten Schwan, John Stasko,
Greg Eisenhauer, Weiming Gu, Eileen Kraemer, Vernard Martin, and Jeff Vetter,
"The Falcon Monitoring and Steering System," 1996,
http://www.cc.gatech.edu/systems/projects/FALCON/.
[FK96globus] I. Foster and C. Kesselman, “Globus: A
Metacomputing Infrastructure Toolkit,” Proceedings
of the Workshop on Environments and Tools for Parallel Scientific Computing,
Lyon, France, August 1996.
[Fox96] G.C. Fox, “An application Perspective on High Performance
Computing and Communications,” Technical Report, Northeast Parallel
Architectures Center, Syracuse University, 1995.
[FT96nexusjava] I. Foster and S. Tuecke, “Enabling
Technologies for Web-Based Ubiquitous Supercomputing,” Proceedings of the 5th IEEE Symposium on High Performance Distributed
Computing, Syracuse, New York, August 1996.
[GatewayGrande99te]
Tomasz Haupt, Erol Akarsu, and G. Fox, The Gateway System: Uniform Web Based
Access to Remote Resources, ACM 1999 Java
Grande Conference
[GatewayHPDC99et] Erol Akarsu, Geoffrey
Fox, Tomasz Haupt, Using Gateway System to Provide a Desktop Access to High
Performance Computational Resources, HPDC-8,
1999.
[GEFWeb] GEF: The Graph Editing Framework home page:
http://www.ics.uci.edu/pub/arch/gef/
[GHR94pse]
E. Gallopoulos, E. Houstis, and J. Rice, “Computer as Thinker/Doer:
Problem-Solving Environments for Computational Science,” IEEE Computational Science and Engineering, Vol. 1, No. 2, Summer
1994, pp. 11-23.
[GlobusIntlJ97] I. Foster and C. Kasselman,” Globus: A metacomputing
infrastructure toolkit,” Int’t J.
Supercomputer Applications, 11(2): 115-128, 1997.
[GlobusWeb] I. Foster, C. Kesselman,
"Globus", http://www.globus.org/
[GNW95legion]
A. Grimshaw, A. Nguyen-Tuong, and W. Wulf, “Campus-Wide Computing: Results
Using Legion,” University of Virginia Computer Science Department, Technical
Report CS-95-19, March 1995.
[GSSAPIWeb] RFC 1508, RFC 2078
[HabaneroWeb] “NCSA Habanero,”
http://www.ncsa.uiuc.edu/SDG/Software/Habanero/index.html
[Hood96p2d2] R. Hood, “The
p2d2 Project: Building a Portable Distributed Debugger,” Proceedings of ACM SIGMETRICS Symposium on Parallel and Distributed
Tools (SPDT '96), Philadelphia, PA, May 1996.
[HPC++Web]
D. Gannon et al., "HPC++", http://www.extreme.indiana.edu/sage
[HPCCEuroPar98Gf] G.C.Fox, W. Furmanski,
T. Haupt, E. Akarsu, and H. T. Ozdemir, ”HPcc as High Performance Commodity
Computing on top of integrated Java, CORBA, COM and Web standards,” Proc. Of Euro-Par '98, Aug 1998
[HPccGridBook]G. Fox and W. Furmanski, "HPcc as High
Performance Comodity Computing," Building
National Grid by I. Foster and C. Kesselman, Chapter 10, pp. 238-255
[HpccWeb] G. Fox, W. Furmanski,
"HPcc as High Performance Commodity Computing,"
http://www.npac.syr.edu/users/gcf/hpdcbook/HPcc.html
[HPDForumWeb] High Performance Debugging
Forum, http://www.ptools.org/hpdf/ [DAQV96Sth]
Steven T. Hackstadt and Allen D. Malony "Distributed Array Query and
Visualization for High Performance Fortran," in Proc. Of Euro-Par '96, Aug 1996, http://www.cs.uoregon.edu/
hacks/research/daqv/.
[HPFfeWeb] Guansong Zhang et al., "The HPF frontEnd
system," http://www.npac.syr.edu/users/zgs/frontEnd/
[HPJavaACM98] Bryan Carpenter, Guansong Zhang, Geoffrey Fox, Xinying Li, and Yuhong Wen, “ HPJava: Data parallel extensions to Java,” ACM 1998 workshop on Java for
high-performance network computing. Palo Alto, California. Concurrency: Practice and Experience,
10(11-13):873-877, 1998.
[HRJW95mpse] E. Houstis, J. Rice, A. Joshi, S.
Weerawarana, E. Sacks, V. Rego, N. Wang, C. Takoudis, A. Sameh, and E.
Gallopoulos, “MPSE: Multidisciplinary Problem Solving Environments,” Purdue
University, Department of Computer Sciences, Technical Report CSD-TR-95-047, 1995.
[JavaBeansWeb] JavaBeans Component
Architecture by SUN, www.javasoft.com/beans/index.html
[JGrandeWeb]
Java Grande Forum, home page: http://www.javagrande.org
[JigsawWeb] Jigsaw home page:
http://www.w3.org/Jigsaw/
[JINIWeb] The SUN Jini Technology, http://java.sun.com/products/jini
[JWORBWeb] G. C. Fox, W. Furmanski and
H. T. Ozdemir, “JWORB - Java Web Object Request Broker for Commodity Software
based Visual Dataflow Metacomputing Programming Environment,” NPAC Technical
Report, Available at http://tapetus/iwt98/pm/documents/hpdc98/paper.html
[KPSW93chal] A. Khokhar, V. Prasanna, M. Shaaban, and C. Wang, “Heterogeneous
Computing: Challenges and Opportunities,” IEEE Computer, Vol. 26, No. 6, June 1993, pp.
18-27.
[LegionACM97] A. S. Grimshaw, W. A. Wulf, and the Legion team, “The
legion vision of a worldwide virtual computer,” Communications of the ACM, 40(1):39-45, 1997
[LG96legion] M. Lewis and A. Grimshaw, “Using Dynamic Coonfigurability to
Support Object-Oriented Programming Languages and Systems in Legion,”
University of Virginia Computer Science Department, Technical Report CS-96-19,
December 1996.
[LMSCewesRep99]
Tomasz Haupt, Erol Akarsu, Geoffrey C. Fox, Landscape Management System, A
WebFlow Application Technical Report, April 1999 at CEWES
[Netsolve97IJSP]
Henri Casanova and Jack Dongarra, “NetSolve: A Network Server for Solving
Computational Science Problems,” The
International Journal of Supercomputer Applications and High Performance
Computing, Volume 11, Number 3, p.p. 212-223, Fall 1997.
[NexusJPDC97] I. Foster, C.
Kesselman, an S. Tuecke, “The nexus approach to integrating multithreading and
communication,” J. Parallel and
Distributed Computing, 45:148-158, 1997.
[NexusWeb] I. Foster, C. Kesselman,
"The Nexus Multithreaded Runtime System,"
http://www.mcs.anl.gov/nexus/
[NHSS87sigops] D. Notkin, N. Hutchinson, J. Sanislo, and M.
Schwartz, “Heterogeneous Computing Environments: Report on the ACM SIGOPS
Workshop on Accommodating Heterogeneity,” Communications
of the ACM, Vol. 30, No. 2, February 1987, pp. 132-140.
[OMGWeb] CORBA - OMG Home Page
http://www.omg.org
[ORBacusWeb] Object Oriented Concepts,
Inc., http://www.ooc.com/ob.html
[Panorama93MF] J. May & F. Berman,
"Panorama: A portable, Extensible Parallel Debugger," Proceedings of ACM/ONR Workshop on Parallel
and Distributed Debugging, May 1993, pp. 96-106
[PAWSWeb] PAWS (Parallel Application WorkSpace) provides a framework
for coupling
parallel applications, http://acts.nersc.gov/paws/main.html
[PCRCWeb] PCRC, http://www.npac.syr.edu/projects/pcrc/
[PICSimSC97ea] Erol Akarsu, Kivanc
Dincer, Tomasz Haupt and G. Fox, Particle-in-Cell Simulation codes in High
Performance Fortran, Supercomputing '96,
November 1996.
[QSWeb] Quantum Simulations,
http://www.ncsa.uiuc.edu/Apps/CMP/cmp-homepage.html
[RHCA97pooma] J. Reynders et al., POOMA: A Framework for
Scientific Simulations on Parallel Architectures, available from
<http://www.acl.lanl.gov/PoomaFramework/>,
January 1997.
[Rice96pse] J. Rice, “Scalable Scientific Software
Libraries and Problem Solving Environments,” Purdue University, Department
of Computer Sciences, Technical Report
CSD-TR-96-001, January 1996.
[RMN96tools] D. Rover, A.
Malony, and G. Nutt, “Summary of Working Group on Integrated Environments Vs.
Toolkits, Debugging and Performance Tuning for Parallel Computing Systems,” M.
Simmons, A. Hayes, J. Brown, and D. Reed, eds., IEEE Computer, Society Press, Los Alamitos, CA, 1996, pp. 371-389.
[Sage++94Gannon] F. Bodin, P. Beckman,
D. Gannon, J. Gotwals, S. Narayana, S. Srinivas, B. Winnicka. "Sage++: An
Object Oriented Toolkit and Class Library for Building Fortran and C++
Restructuring Tools," Proc. Oonski `94.
[SC92meta] L. Smarr and C. Catlett, “Metacomputing,” Communications of the ACM, Vol. 35,
No. 6, June 1992, pp. 44-52.
[SC98Pres]
T. Haupt, "WebFlow High-Level Programming Environment and Visual Authoring
Toolkit for HPDC (desktop access to remote resources)," SC’98 technical
presentation,
http://www.npac.syr.edu/users/haupt/WebFlow/papers/SC98/foils/index.htm
[SciRun97Press] S.
Parker, D. Weinstein, and C. Johnson, “The SCIRun computational steering
software system,” In E. Arge, A. Bruaset, and H. Langtangen, eds., Modern Software Tools in Scientific
Computing, pages 1-44. Boston: Birkhauser Press, 1997
[Sciviz98ACMJava] Byeongseob Ki and
Scott Klasky, “Collaborative Scientific Data Visualization,” ACM 1998 Workshop on Java for
High-Performance Network Computing.
[ScivizWeb] K. Li, S. Klasky,
"Scivis," http://kopernik.npac.syr.edu:8888/scivis/
[SDA96support]
H. Seigel, H. Dietz, and J. Antonio, “Software Support for Heterogeneous
Computing,” ACM Computing Surveys,
Vol. 28, No. 1, March 1996, pp. 237-239.
[SSLWeb] SSL, Netscape Communications, Inc,
http://home.netscape.com/eng/ssl3/index.html
[SUN] Sun Microsystems, Inc.,
http://java.sun.com
[Tango97SIAM] L. Beca, G. Cheng, G. C. Fox, T. Jurga, K. Olszewski,
M. Podgorny, P. Sokolowski, and K. Walczak, "Web Technologies for
Collaborative Visualization and Simulation" in Proceedings of the 8th SIAM Conference on Parallel Processing for
Scientific Computing, March 16-19 1997, Minneapolis, MN,
http://trurl.npac.syr.edu/tango/papers.html .
[TangoWeb] M. Podgorny et al; "Tango, Collaboratory for the
Web," http://trurl.npac.syr.edu/tango/
[Tuchman91Vis] A. Tuchman, D.
Jablonowski, G. Cybenko, "Runtime Visualization of Program Data," in Proc. Visualization '91, (IEEE, 1991) 225-261
[UMLWeb] UML Home Page http://www.rational.com/uml
[VGJWeb]
VGJ, Visualizing Graphs with Java home page:
http://www.eng.auburn.edu/department/cse/research/graph_drawing/graph_drawing.html
[VPL97ConcJ] K. Dincer and G. C. Fox, “Using Java and JavaScript in
the Virtual Programming Lab: A Web-Based Parallel Programming Environment,” Concurrency: Practice and Experience Journal,
June 1997.
[WebFlow97Furm] D. Bhatia, V. Burzevski,
M. Camuseva, G. C. Fox, W. Furmanski and G. Premchandran, "WebFlow - a
visual programming paradigm for Web/Java based coarse grain distributed
computing," Concurrency: Practice
and Experience, Vol. 9 (6), pp. 555-577, June 1997
[WebFlowAlliance98et] Erol Akarsu, Tom
Haupt and G. Fox, Quantum Simulations Using WebFlow - a High Level Visual
Interface for Globus, Alliance'98 poster and demo.
[WebFlowDARP] W. Furmanski, T. Haupt, "DARP System as a WebFlow
module", http://www.npac.syr.edu/users/haupt/HPFI/webflow/
[WebFlowFGCS99te] Tomasz Haupt, Erol
Akarsu, and G. Fox, Web-Based Metacomputing, Special Issue on Metacomputing for the FGCS International Journal on
Future Generation Computing Systems,1999
[WebFlowFurmWeb]
W. Furmanski et al., "WebFlow,"
http://osprey7.npac.syr.edu:1998/iwt98/products/webflow/
[WebFlowHPCN99te]
Tomasz Haupt, Erol Akarsu and G. Fox, WebFlow: a Framework for Web-Based
Metacomputing, High Performance Computing
and Networking '99 (HPCN), Amsterdam,
April 1999.
[WebFlowHPCNJournal]
The above HPCN paper has been selected by the program committee as one of the
best that was submitted to the proceedings. It is invited to publish in a
special issue of the Elsevier Journal on
Future Generation Computer Systems.
[WebFlowSC98et] Erol Akarsu, Tomasz
Haupt and G. Fox, WebFlow - High-Level Programming Environment and Visual
Authoring Toolkit for High Performance Distributed Computing, Supercomputing '98, November 1998.
[WebSubmit] “WebSubmit: A
Web Interface to Remote High-Performance Computing Resources,” http://www.itl.nist.gov/div895/sasg/websubmit/websubmit.html
[WMSWeb] WMS, EDYS and CASC2D codes
has been made available to us by CEWES. EDYS is written by Michael Childress
and CASC2D is written by Fred Ogden, http://www.wes.hpc.mil
Applet A partial Java application program
designed to run inside a web browser with help from some predefined support
classes.
ATD Abstract Job Descriptor written in
XML. Usually does not specify hardware
resources for jobs defined.
AVS A commercial data visualization package
provided by Advanced Visual Systems.
BDK Javabeans Development Kit. A graphical user interface for composing
front ends.
CGI Common Gateway Interface. A non-Java
technique of sending data from HTML forms in browsers to server programs
written in C, Python, Tcl, or Perl. They typically do data base searches or
process data in HTML forms and send
back MIME.
CM Connection Manager. A running servlet. Part of the WebFlow middle
tier that works to create associations among user modules.
COM Common Object Model. Microsoft's windows object model, which is
being extended to distributed systems and multi-tiered architectures. ActiveX
controls are an important class of COM objects that implement the component
models of software.
DCOM Distributed version of COM
ComponentWare An approach to software engineering with
software modules developed as objects with specific design frameworks and with
visual editors both to interface to properties of each module and to link
modules together.
Computational Grid A recent term used by the HPCC community to
describe large-cale distributed computing that draws on analogies with
electrical power grids.
CORBA Common Object Request Broker Architecture.
An approach to cross-platform, cross-language distributed objects developed by
a broad industrial group, the OMG. CORBA specifies basic services (such as
naming, trading, persistence) and the protocol IIOP used by communicating ORBS. It is developing higher level facilities
that are object architectures for specialized domains.
DARP Data Analysis and Rapid Prototyping.
Protocol that integrates compiled and interpreted environments and provides a
web-based interface for the user.
DII Dynamic Invocation Interface. An interface
defined in CORBA that allows the invocation of operations on object references
without compile-time knowledge of the objects' interface types.
DSI Dynamic Skeleton Interface. An interface defined in CORBA that allows
servers to dynamically interpret incoming invocation requests of arbitrary
operations.
EJB Enterprise Javabeans. Enhanced Javabeans for server-side
operations with capabilities such as multi-user support. A cross-platform
component architecture for the development and deployment of multi-tier,
distributed, scalable, object-oriented Java applications.
Event A noteworthy state change of an object or
signal that involves the behavior of an object. An event can signal the
creation, termination, classification, declassification, or change in value of
an object. For example, the creation of a new circuit design or the
debit
of $300 to a particular account.
Exception An indication that some invariant has not,
or cannot, be satisfied. Mechanisms for
handling exceptions are often added to OO programming languages and
environments. For example, Java, C++, and CORBA all have built-in exception
handling.
GASS Global Access to Secondary Storage. Implements a high-performance secure data
transfer.
GEF A graphics package written in Java.
Globus A metacomputing infrastructure toolkit that
is a bag of of services.
GRAM Globus Resource Allocation Manager.
Provides secure mechanisms to allocate and schedule resources.
GSSAPI Generic Security Services Application
Programmer Interface. Provides a standard programming interface that is
authentication-mechanism independent, which allows the application programmer
to design an application and application protocol that can be used for
alternative authentication technologies, including Kerberos.
HPcc High Performance commodity computing. An NPAC project that developed a commodity
computing-based high performance computing software environment. (Note that we
have dropped the word "communications" referred to in the classic
HPCC acronym--not because it is unimportant, but rather because a commodity
approach to high performance networking is already being adopted. We focus on
high-level services such as programming, data access and visualization that we
abstract to the rather wishy-washy "computing" in the HPcc acronym.)
HPCC High Performance Computing and
Communication. Originally a formal federal initiative, but even after that
ended in 1996, this term has been used to describe the field devoted to solving
large-scale problems with powerful computers and networks.
HPF High Performance Fortran Language. Extended from Fortran90.
HTTP Hyper Text Transport Mechanism. A stateless
transport protocol allowing control information and data to be transmitted
between web clients and servers.
IDL Interface Definition Language. A language, platform, and
methodology-independent notation for describing objects and their
relationships. IDL is used to describe the interfaces that client objects call
and that object implementations provide.
IIOP Internet Inter Orb Protocol. A state protocol allowing CORBA ORBs to
communicate with each other and transfer both the request for a desired service
and the
returned
result.
IR Interface Repository. A container,
typically a database, of OMG IDL interface definitions. The interface to the
interface repository is defined in the CORBA specification. Implementations of
this interface are supplied by CORBA vendors.
Javabean Part of the Java 1.1 enhancements defining
design frameworks (particularly naming conventions) and inter-Javabean
communication mechanisms for Java components with standard (Bean box) or
customized visual interfaces (property editors). Javabeans are Java's component
technology and in this sense are more analogous to ActiveX than either COM or
CORBA. However, Javabeans augmented with RMI can be used to build a "pure
Java" distributed-object model.
JDBC Java Data Base Connection. A set of
interfaces (Java methods and constants) in the Java 1.1 enterprise framework that
define a uniform access to relational databases. JDBC calls from a client or
server a Java program link to a
particular "driver" that converts these universal database access
calls (establishes a connection, SQL query, etc.) to the particular syntax needed
to access essentially any significant database.
Jini Sun's protocol for devices to identify each
other using TCP/IP protocol. It will be used in small devices such as
telephones to allow a new device to be
plugged into the system while everything is running. This device automatically
finds out about everything else on the net and allows other devices to find it.
LDAP Lightweight Directory Access Protocol. A
client-server protocol for accessing a directory service. Initially used as a
front-end to X.500, but can also be used with stand-alone and other kinds of
directory servers.
Legacy System A production system designed for technology
assumptions that are no longer valid or
that are expected to become invalid in the foreseeable future. When deploying new applications or new
system architectures, a legacy system
is one that may be accessed, but will typically not be modified to support new
architecture.
LMS Landscape Modeling Simulation. A legacy code for managing land and water
resources.
MDS Metacomputing Directory Service. Allows resource identification.
MM Module Manager. A running servlet. A part
of the WebFlow middle tier that deals with life cycles of WebFlow modules.
MPI Message Passing Interface. Designed as a standard for optimized
communication among parallel processors.
Object Anything that can be referred to; anything
that can be identified, named, or perceived as an object; anything to which a
type applies; an instance of a type or class. An instance of a class is comprised
of the values linked to the object (Object State) and
can
respond to the requests specified for the class.
Object Interface The set of requests that an object can
respond to, i.e., its behavioral specification. An object interface is the
union of the interfaces of the object's type interfaces.
Object Web The evolving systems' software middleware
infrastructure achieved by merging
CORBA with Java. Correspondingly, merging CORBA with Javabeans gives Object Web
ComponentWare, which is expected to compete with Microsoft's COM/ActiveX
architecture.
OMG Object Management Group. An organization of over 700 companies that
is developing CORBA through a process of
proposal calls and the development of consensus standards.
ORB Object Request Broker. Used in both clients
and servers in CORBA to enable remote access to objects. ORBs are available
from many vendors and communicate via
IIOP
protocol.
ORBacus An example implementation of an OMG CORBA
specification.
Proxy An object that is authorized to act or take
action on behalf of another object.
QS-Quantum
Simulation A simulation code for
solving the Schrodinger equation or systems of many electrons. Results in the calculation of an electronic structure.
Request An event that is the invocation of an
operation. The request includes the operation name and zero or more actual
parameters. A client issues a request to cause a service to be performed. Also
associated with a request are the results, which can be returned to the client.
A message can be used to implement (carry) the request and an results.
RSL Resource Specification Lanaguage. Part of
the Globus package. Used to send job requests to GRAM.
Server Object An entity (e.g., object, class, or
application) that provides a response to
a
client's request for a service.
Servlet An application designed to run on a server
in the womb of a permanently resident CGI mother-program written in Java that
provides services for it, much the way an Applet runs in the womb of a Web
browser.
SM Session Manager. A running servlet, a part of the WebFlow middle tier that handles
sessions for different users.
SSL Secure Socket Layer. A protocol for communication securily
through sockets.
UML Universal Modeling Language. A modeling technique designed by Grady
Booch, Ivar Jacobson, and James Rumbauch of Rational Rose. It is used for OOAD
(Object Oriented Analysis and Design) and is supported by a broad base of
leading industries. It merges the best of the various notations into one single
notation style.
VGJ A graphics package written in Java.
Web Client Originally, web clients displayed HTML and
related pages but now support Java Applets that can be programmed to give web
clients the necessary capabilities to support general enterprise computing. The
support of signed applets in recent browsers has removed crude security
restrictions that handicapped the previous use of applets.
Web Servers Web Servers originally supported HTTP requests for information, basically
HTML pages, but included the invocation of general server side programs using
the very simple but arcane CGI (Common
Gateway Interface). A new generation of Java servers have enhanced
capabilities, including server-side Java program enhancements (Servlets)
and the support of permanent communication channels.
XDR External data representation. A protocol for sending data among
heterogeneous
architectures
that was developed by SUN Microsystems.
XML Extensible Markup Language. A W3C-proposed recommendation. Like HTML, XML is based on SGML, an
International Standard (ISO 8879) for
creating markup languages. However, while HTML is a single SGML
document type, with a fixed set of
element type names (AKA "tag names"), XML is a simplified profile of
SGML
Approved
Date
