RetroGuard User's Guide

RetroGuard User's Guide

1. Introduction
   • About RetroGuard
   • About obfuscation
2. Installing RetroGuard
3. Running the obfuscator
   • Command line
   • Simple script examples
   • Access to libraries
   • Log file contents
   • Run-time problems
4. Scripting language
   • BNF grammar
   • Example script entries
5. Handling of non-'.class' files
   • Resource files
   • Manifest file
   • Signature files
6. Script generation wizard
   • Jar file selection
   • Application, applet, bean selection
   • Class preservation
   • Method and field preservation
   • Attribute preservation and script file generation
7. Creating patch files
   • Incremental obfuscation
   • Patch utility
   • An example
   • Advanced issues
   • Name conversion utility

About RetroGuard

RetroGuard is free software, distributed under the Lesser GNU Public License.

Features include:

• reduced size of Java bytecode (savings of up to 50% are possible, 20-30% is typical) leading to faster download times for your applets
• designed to fit seamlessly into the automated build process for your Java projects
• allows full customization of the obfuscation process
• multiple entry points into your Java code are supported - allow access to as many applications, applets, JavaBeans and library interfaces as you require
• acts on Jar archives, the industry standard for packaging Java classes and their associated resources
• obfuscation is controlled by a flexible scripting language
• a graphical 'wizard' is provided for simple management of script files
• uses massive overloading of method and field names for even higher security
• generates only verifiable Java bytecode in full compliance with the Java Virtual Machine Specification
• updates the manifest file in the Jar archive, using obfuscated names and automatically generated MD5 and SHA-1 message digests

About obfuscation

The obfuscation process strips all unnecessary information from the classes. This includes the line number tables, local variable names and source file names used by debuggers. Also, class, interface, field and method identifiers are renamed to render them meaningless. The Java virtual machine, which runs your bytecode, does not care at all about these changes. However, the decompiled version of these classes is extremely difficult to understand, frustrating any attempt to reverse engineer your code. The changes that an obfuscator makes to your Java classes are not reversible - there is no automated way for a reverse engineer to recover the lost information about your code.

An additional benefit to obfuscation is a substantial reduction in the size of your Java classes, due to the removal of unnecessary information and the replacement of large, human-readable identifiers with small machine generated names. This size reduction leads to faster download times for your Java applets.

To determine which classes are to be obfuscated, most obfuscators start at a single entry point (usually the 'main' method of an application, or the 'Applet'-derived class for an applet), and construct a tree of all classes accessible from that point. Unfortunately, this method is quite limiting and works only in simple cases. If your Java code has multiple entry points (several applications, applets, or JavaBeans, or if your code is intended to be used as a Java library) then this method is just not flexible enough.

Instead, RetroGuard obfuscates all classes and interfaces within a JAR file. JAR files are the industry standard mechanism for packaging Java classes for distribution - it is easy to package your classes as a jar using the 'jar' utility distributed with the Java Development Kit from Sun Microsystems. Any number of entry points to the JAR can be specified using a RetroGuard script file. This allows the obfuscation process to be completely flexible.

A technique used by several obfuscators is to introduce corrupt bytecode into the obfuscated Java classes. These corruptions are prohibited by the definitive text, the Java Virtual Machine Specification by Yellin and Lindholm, but do not happen to be noticed by the current virtual machine implementations. The corruptions are sufficient to break some of the simpler decompilers on the market. This class corruption is a very dangerous course to take, however, since virtual machines will certainly enforce the constraints of the Specification much more strictly in the future. At that point, code which uses this 'corrupting obfuscation' will simply fail.

Corruption of classes is unacceptable for developers - one cannot afford to ship Java bytecode which only sometimes runs, or fails completely on some virtual machines. For this reason the RetroGuard obfuscator produces only verifiable bytecode in full compliance with the Java Virtual Machine Specification. Instead of corrupting the bytecode, RetroGuard uses heavy overloading of identifiers (multiple uses of method names within a class) and the introduction of Java source-code keywords as identifiers to make it almost impossible to understand decompiled Java classes.

(Back to contents...)

2. Installing RetroGuard

The RetroGuard obfuscator is simple to install. Just ensure that the archive 'retroguard.jar' is listed in your 'CLASSPATH' environment variable. Please refer to the JDK documentation for your platform if you are unsure how to set the 'CLASSPATH' environment variable.

Before obfuscation, you must package your classes and any associated resource files in a Jar archive. For example, to package an entire directory tree of classes into a Jar, use: 'jar cf MyJar.jar *'. See the JDK documentation for full details about creating and using Jar archives.

(Back to contents...)

3. Running the obfuscator

One way to view obfuscation is as a phase in your build process where the interface to your Jar archive is specified and only that interface is left accessible to the outside world. This interface is the list of classes, interfaces, methods and fields that you provide in the RetroGuard script file.

Command line

java RetroGuard [INPUT-JAR [OUTPUT-JAR [SCRIPT [LOGFILE]]]]

• INPUT-JAR is the filename for your original, unobfuscated Jar file (defaults to 'in.jar').
• OUTPUT-JAR is the filename that will be used for the obfuscated Jar file (defaults to 'out.jar').
• SCRIPT is the filename of the RetroGuard script file, specifying identifiers which are to be left unobfuscated (defaults to 'script.rgs').
• LOGFILE is the filename that will be used for the text log of this obfuscation run (defaults to 'retroguard.log').

Simple script examples

• To allow access to an application class 'MyApp.class' make an entry in the script, '.class MyApp public method'. This preserves the class name and its public methods, including the 'main' method.
• To allow access to an applet class 'MyApplet.class' make an entry in the script file '.class MyApplet' which preserves the class name.
• To allow access to a JavaBean class 'MyBean.class' make an entry in the script file '.class MyBean protected'. This preserves the class name and all public, protected and default accessible methods and fields in that class.

Access to libraries

java -classpath myclasses.jar;thirdparty.jar;d:\jdk1.1\lib\classes.zip MyApp

java -classpath retroguard.jar;thirdparty.jar;d:\jdk1.1\lib\classes.zip RetroGuard myclasses.jar myclasses-obf.jar script.rgs

java -classpath retroguard.jar;thirdparty.jar;d:\jdk1.1\lib\classes.zip RGgui

Log file contents

Header:

Pass one phase:

Renaming phase:

• The identifier is listed for preservation in the RetroGuard script file.
• Due to inheritance constraints, some identifiers cannot be modified. For example, if a class implements the interface 'java.util.Enumeration', the methods inherited from that interface ('hasMoreElements' and 'nextElement') cannot be changed.
• Synthetic methods and fields, which are generated automatically by Java compilers as a way of implementing the JDK1.1/1.2 inner class features, are not obfuscated. Since these names are already short, meaningless, machine-generated strings this is no disadvantage.

• A summary of the use of remapped identifiers.
• A listing of identifiers which were explicitly preserved from obfuscation by entries in the script file.
• A listing of obfuscated identifiers and identifiers which were left unchanged due to inheritance constraints.

Pass two phase:

Run-time problems

• In class java.lang.Class the methods:
  • Class forName(String className);
  • Field getDeclaredField(String name);
  • Field getField(String name);
  • Method getDeclaredMethod(String name, Class[] parameterTypes);
  • Method getMethod(String name, Class[] parameterTypes);
• In class java.lang.ClassLoader the methods:
  • Class defineClass(String name, byte[] data, int offset, int length);
  • Class findLoadedClass(String name);
  • Class loadClass(String name);
  • Class loadClass(String name, boolean resolve);

(Back to contents...)

4. Scripting language

Also, by default, all unnecessary class attributes are trimmed fom each class during obfuscation. In the unlikely case that any of these attributes are to be retained, this can also be done using the script file.

Below we give a BNF grammar for the script language, followed by some annotated examples of script entries.

BNF grammar

1. Interfaces are not treated separately from classes. The '.class' token can also refer to an interface.
2. The Java virtual machine syntax is used for specifying types. These types are:
   • 'B' = byte
   • 'C' = char
   • 'D' = double
   • 'F' = float
   • 'I' = int
   • 'J' = long
   • 'S' = short
   • 'V' = void
   • 'Z' = boolean
   • 'LCOM/widgetco/MyClass;' = the type of class MyClass in package COM.widgetco
   • '[B' = a 1-dimensional array of bytes
   • '[[Ljava/lang/String;' = a 2-dimensional array of Strings
   For a full description of this syntax, see The Java Virtual Machine Specification by Yellin and Lindholm.
3. Fully qualified class, method and field identifiers are used. So, for a class 'MyClass' with method 'void aMethod(boolean isSet)' and field 'float aField' in a package 'COM.widgetco', the script entries to reserve these identifiers would be:
   • .class COM/widgetco/MyClass
   • .method COM/widgetco/MyClass/aMethod (Z)V
   • .field COM/widgetco/MyClass/aField F

Example script entries

(Back to contents...)

5. Handling of non-'.class' files

Resource files

1. using a relative path and the java.lang.Class methods
   • InputStream getResourceAsStream(String relativePath);
   • URL getResource(String relativePath);
2. using an absolute path and the java.lang.ClassLoader methods
   • InputStream getResourceAsStream(String absolutePath);
   • URL getResource(String absolutePath);

RetroGuard's behavior is to update all components of a resource's path with obfuscated versions. The possibility exists that classes lose track of their resources if those resources have been referenced through absolute paths. For this reason, we encourage the use of the relative path methods of java.lang.Class, rather than the absolute path methods of java.lang.ClassLoader.

Manifest file

Signature files

For information about digital signatures for Jar files, see the information on the JavaSoft website.

(Back to contents...)

6. Script generation wizard

This visual tool scans a JAR automatically for applications, applets and JavaBeans (the most common entry points to a JAR) as well as allowing reservation of any other class, interface, method and field names.

The tool takes the form of a multi-panel wizard, which leads the user through the selection of identifiers and attributes which are to be preserved during obfuscation. The following sections describe the script management tool, panel by panel.

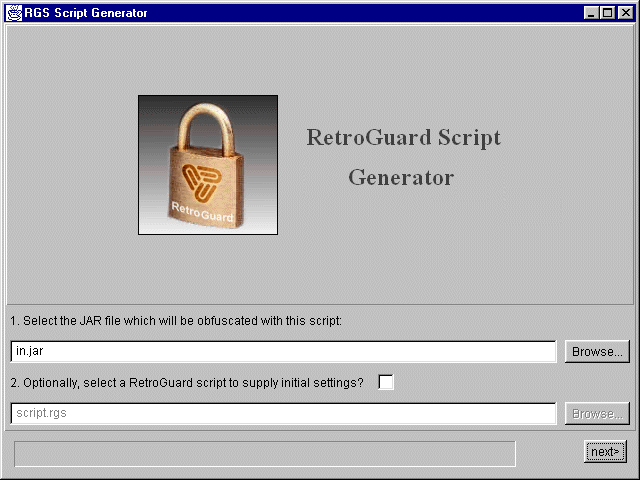

Jar file selection

When the script management tool is run (using 'java RGgui') the panel above is displayed. On line '1.' the user selects the Jar file for which the script is to be generated, either by entering the relative or absolute path in the text field or by hitting the 'Browse' button, which causes a file selection dialog to be displayed.

If a new script is being generated you can now hit 'Next' to proceed. If you are editing an existing script file, turn on the checkbox in line '2.' and enter or browse to the name of the existing script, and then hit 'Next' to proceed.

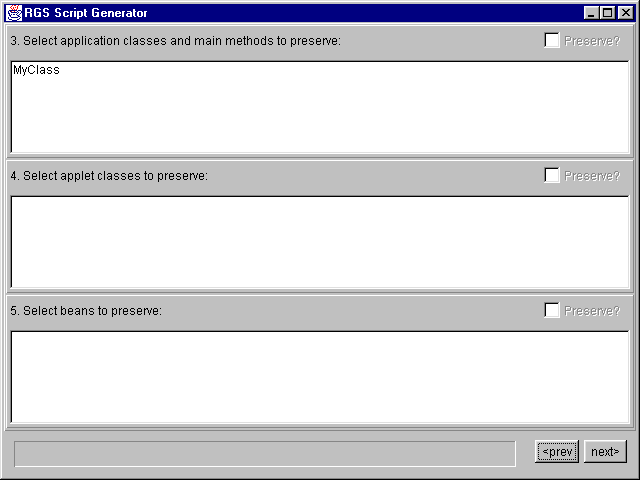

Application, applet, bean selection

The Jar file is now analysed. Depending on the number of classes in the Jar this may take a few moments. Once analysis is complete, the class names of any applications, applets and JavaBeans are displayed in the lists shown above.

If you are generating a fresh script file, these application, applet and Bean classes are automatically selected for preservation. If you are editing an existing script, the settings that were read from the input script are displayed instead.

To change an obfuscation setting, just select the class name in the list and select or de-select the appropriate checkbox.

Once you are satisfied with the settings, hit 'Next' to proceed. Use the 'Back' button on any panel to come back and adjust settings, or even start over with a different Jar file, at any time.

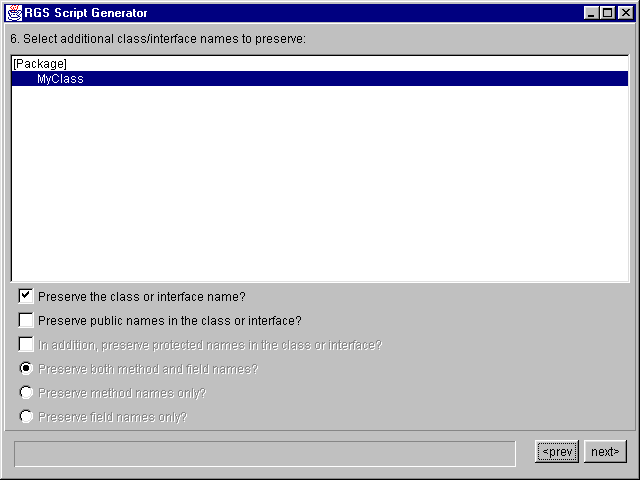

Class preservation

In this panel, the upper list is a tree control which gives access to all the packages, classes and interfaces in the Jar file. To open or close a package double-click on the '[package] name' line. If a class has inner classes within it, double-click on the class name to see the inner classes.

When you select a class or interface name in the tree control, the current obfuscation settings are displayed using the checkboxes beneath. Select or de-select the checkboxes to change obfuscation of that class and its methods and fields.

If you select a '[package]' line in the tree control, the obfuscation settings for all classes and interfaces in that package can be set at once (this will be output as a wildcard line in the script file).

Once you are satisfied, hit 'Next' to proceed.

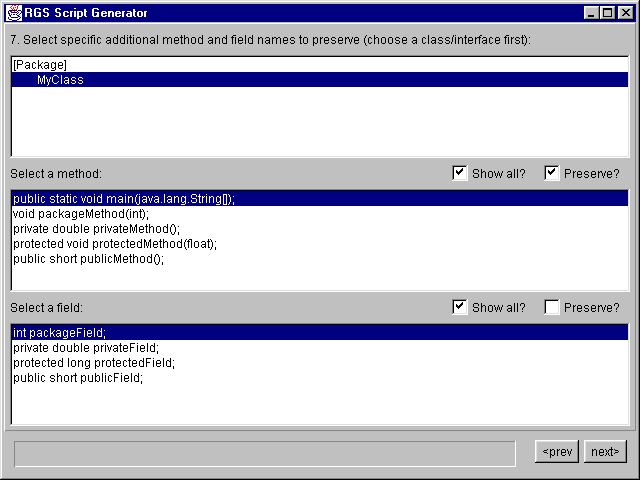

Method and field preservation

In this panel, there are three sections: the upper list is a tree control which is synchronized to the packages / class / interface tree control of the previous panel, and which is used in just the same way.

The lower two lists show methods and fields declared in the class or interface selected. Select a method or field and click the 'Preserved?' checkbox to change its obfuscation settings. The 'Show all?' checkboxes are checked by default: this means that all methods and fields are shown. If 'Show all?' is unchecked, then a filter is applied and only methods and fields which are of immediate interest are shown. Specifically, 'public', 'protected' and default-access (package) methods and fields which have not been selected on the previous panel are displayed in these lists, with one exception: the special 'private' methods required by Java's 'Serializable' interface are also displayed. Unchecking the 'Show all?' checkbox can help to focus attention on methods and fields you may wish to preserve at this stage.

Once you are satisfied, hit 'Next' to proceed.

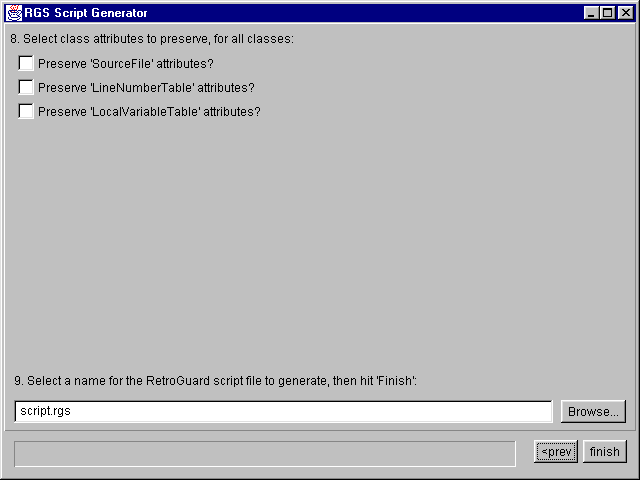

Attribute preservation and script file generation

The checkboxes in the upper part of this panel allow certain class-file attributes to be preserved during obfuscation. These settings are applied globally across all classes and interfaces in the Jar file. It is unlikely you will want to adjust these settings; however, if you wish to use a debugger like 'jdb' on the obfuscated code, turn on the checkboxes to preserve 'SourceFile' and 'LineNumberTable'.

Type the name for the generated script file in the text field beneath, or use the 'Browse' button to select the name using a file dialog.

Finally, if you are satified with the obfuscation settings shown in all of the panels, hitting 'Finish' will construct the script file and exit.

In many cases, it will be enough to let the script generator's automatic analysis feature find your applications, applets and JavaBeans and then to skim through the other panels, making little or no change to the settings.

(Back to contents...)

7. Creating patch files

Incremental obfuscation

Normally, when obfuscation is applied to a Jar file, the obfuscated names bear no particular relation to the names in any previous or later version of your software. Even when the changes to your code are minimal there can be substantial changes to the name mappings, because of the process that RetroGuard uses to optimize the obfuscated name-spaces. The generation of a "patch" Jar which contains only the modified classes has not been possible.

This restriction has been overcome in RetroGuard v1.1 by modifying the format of the log-file, so that it can be used in place of the script file during obfuscation of a later version. The mapping entries in the log then act to restrict this later obfuscation. The classes containing your bug-fix or feature addition can then be extracted and shipped as a patch file.

The general rule is, when creating a patch between an old version of the software and a new version, use the output log-file from the old version's obfuscation as the input script file to the new version's obfuscation. This procedure will be demonstrated below in an example.

Patch utility

The extraction of updated classes and resource files from the obfuscated Jar and the creation of the patch Jar could be done by hand. Starting with a list of the classes and resources to be included in the patch, you would convert these names to their obfuscated form by referring to the log-file, then extract the obfuscated files from the full Jar and repack them into a small patch Jar.

This procedure is tiresome and error-prone, particularly on the Windows operating systems due to the limitations of the file system (Java identifiers are case-sensitive, but the Windows OSes smash case, which can lead to one class overwriting another during the un-jar/re-jar process). A utility called RGpatch has therefore been provided to automate this patch generation.

The command for running RGpatch has the form,

java RGpatch WHOLE-JAR PATCH-JAR LOGFILE LISTFILE

• WHOLE-JAR is the filename for the complete, incrementally obfuscated Jar file
• PATCH-JAR is the filename that will be used for the generated patch Jar file
• LOGFILE is the filename of the log output during the obfuscation of WHOLE-JAR
• LISTFILE is the filename of a text file containing a list of the unobfuscated names of class and resource files which are to be included in the patch Jar.

An example

The generation of obfuscated patch files is easiest to understand through an example. We consider the case where a company ships an initial release (version 1.0) of its product, called "JTool", to its customers through a website download. To discourage reverse engineering of the product, the company obfuscates their Jar file, called jtool-unobf-1.0.jar, using RetroGuard. The script file used is called jtool-1.0.rgs and contains a single entry .class JTool public method which provides access to the main method of the JTool Java application. The obfuscation command is:

java RetroGuard jtool-unobf-1.0.jar jtool-1.0.jar jtool-1.0.rgs jtool-1.0.log

Several weeks later, a customer reports a problem with the JTool product. It is found that fixing the problem requires only a small change to one class and to an associated resource file. While it would be possible to recompile and obfuscate the fixed software, and repost the whole Jar to the website, this is not an attractive option for JTool's customers because the whole Jar is several Mbytes in size and takes some time to download.

A better alternative is to create a small patch file containing only the modified class and resource. To do this, the whole JTool application is first compiled and packaged into a Jar jtool-unobf-1.1.jar. The Jar is then incrementally obfuscated using the command:

java RetroGuard jtool-unobf-1.1.jar jtool-1.1.jar jtool-1.0.log jtool-1.1.log

All that remains is to extract the modified class and resource from the jtool-1.1.jar using the RGpatch utility. First a text file jtool-patch-1.0-1.1.txt is created containing the unobfuscated names of the modified class and resource:

COM/widgetco/MyClass.class
COM/widgetco/anImage.gif

java RGpatch jtool-1.1.jar jtool-patch-1.0-1.1.jar jtool-1.1.log jtool-patch-1.0-1.1.txt

Once again, the log-file jtool-1.1.log is archived by the company for use in generating future patches to their software. The patch file jtool-patch-1.0-1.1.jar (which is only a few Kbytes in size), is posted to the website and downloaded by JTool customers. These customers just insert the patch Jar ahead of the original Jar in their classpaths, and run JTool as usual. So, if they previously ran JTool using the command:

jre -cp jtool-1.0.jar JTool

jre -cp jtool-patch-1.0-1.1:jtool-1.0.jar JTool

Advanced issues

Patch sequences: One method of providing patches is to include in each patch only those changes which have occurred since the last patch was issued. The sequence of major release and patch Jar names might be:

jtool-1.0.jar (2.2Mb)
jtool-patch-1.0-1.1.jar (7Kb)
jtool-patch-1.1-1.2.jar (4Kb)
jtool-patch-1.2-1.3.jar (17Kb)
jtool-patch-1.3-1.4.jar (11Kb)

jtool-2.0.jar (3.4Mb)
jtool-patch-2.0-2.1.jar (22Kb)
jtool-patch-2.1-2.2.jar (13Kb)


An alternative technique is to have each patch contain all changes since the last major release. The user has only the most recent patch file in their classpath, but each patch becomes larger than the last. A typical sequence of major release and patch Jar names might then be:

jtool-1.0.jar (2.2Mb)
jtool-patch-1.0-1.1.jar (7Kb)
jtool-patch-1.0-1.2.jar (11Kb)
jtool-patch-1.0-1.3.jar (28Kb)
jtool-patch-1.0-1.4.jar (39Kb)

jtool-2.0.jar (3.4Mb)
jtool-patch-2.0-2.1.jar (22Kb)
jtool-patch-2.0-2.2.jar (35Kb)


Whichever method suits your project, it is clear that a very careful accounting must be kept of code changes, obfuscation log-files and shipped versions of your software. A robust and flexible version control system such as CVS (available as free software from Cyclic Software) is recommended for this purpose.

In addition, it is recommended that a comprehensive suite of automated tests are developed for your product. This is always desirable, but is particularly helpful in testing patches. The suite can be used to exercise the unobfuscated, the obfuscated, and the patched versions of the product prior to shipping. Clearly, results should be identical in each case.

Addition entry points: A patch can be used to introduce one or more new entry points into your product. This will, as usual, require the listing of these entry points in the RGS file used during obfuscation. Since the log-file from the prior version is used as the RGS script file during incremental obfuscation, the additional .class, .method, .field or .attribute entries should be placed in the log-file before obfuscation.

The existing entries in the log-file should not, under any circumstances, be edited or removed: to do so would cause corruption of the generated patch file. In addition, any new entry points (methods which are to be left unobfuscated) must have been introduced to the code since the previous version. It is not possible to change an existing method from being obfuscated in one version to being unobfuscated in the next.

Inner classes: Since inner classes have priveleged access to their outer classes, a patch containing a class must also contain all of its inner classes. The RGpatch utility takes care of this automatically - inner class names in the LISTFILE are ignored, while the listing of an outer class causes all of its inner classes to be copied to the patch Jar also.

Name conversion utility

It can be useful to convert a list of original class names to their obfuscated form, when processing an obfuscated Jar-archive after using RetroGuard. The utility RGconv has been provided for this conversion.

The command for running RGconv has the form,

java RGconv LOGFILE [ORIG-NAMES [OBF-NAMES]]

• LOGFILE is the filename of the log output during the obfuscation process;
• ORIG-NAMES is the filename of a text file containing a list of the unobfuscated names of classes, one per line in the format COM/mycorp/AClass.class, which are to be mapped to obfuscated form (this argument is optional - if absent, the list of names are taken from the standard input (stdin) stream);
• OBF-NAMES is the target file for the converted, obfuscated class names (this argument is optional - if absent, the list of converted names are written to the standard output (stdout) stream).

(Back to contents...)
