Foil 51 Basic Structure of Neat Thing -- Calibrating Logical Units

From Web Technologies and Opportunities in Medical and Engineering Applications Welch Allyn Technology Dinner -- February 22 1996. by Geoffrey Fox * HTML Version

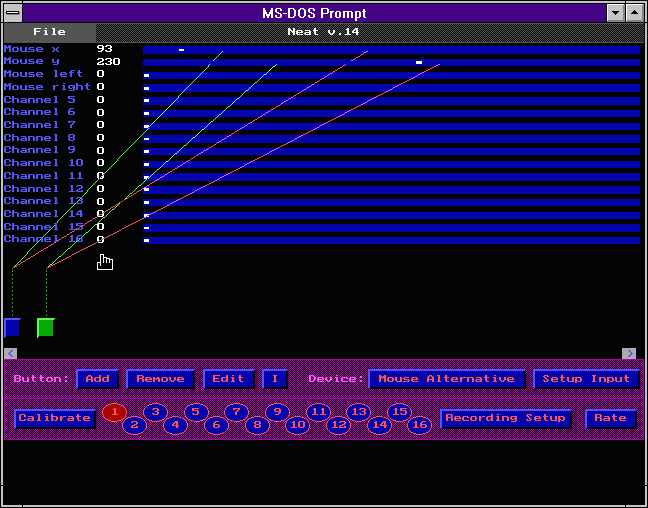

Channels are calibrated to select "windows" of their ranges of signal amplitude. The green and red lines, which are set by mouse dragging and clicking, set the lower and upper limits of the range of interest. When a signal is within range, the button turns from blue to green, and this condition can correspondingly control a binary output device.
