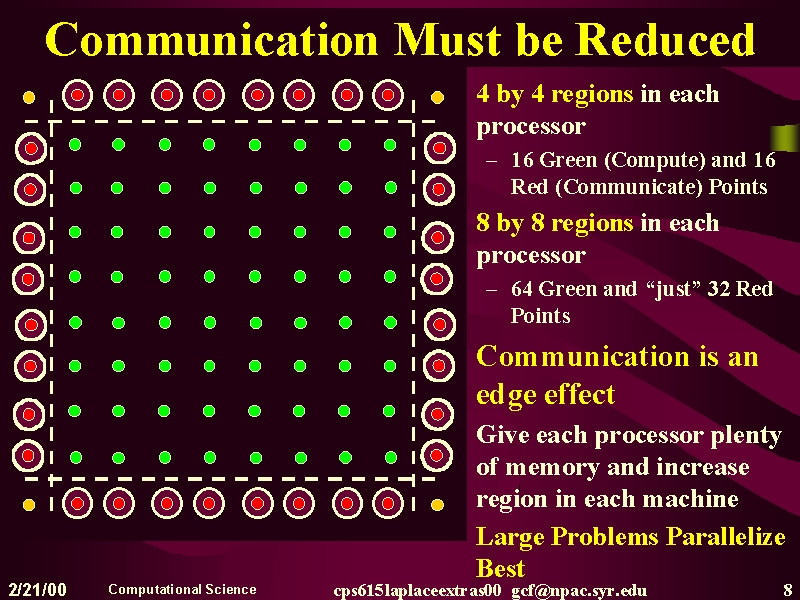

Foil 8 Communication Must be Reduced

From Master Set for Parallel Programming for Laplace's Equation CPS615 Spring Semester 00 -- February 00. by Geoffrey C. Fox
