The following documents provide a full discussion of Net8 features:
Table 5-1 shows the location of README files for various bundled products. The README files describe changes since the last release.
| Product | README File |
|---|---|
|
Net8 |
|
|
Advanced Security Option |
|
|
Oracle Intelligent Agent |
|
The default directory for Net8 configuration files is /var/opt/oracle on Solaris.
Net8 searches for global files in the following order:
TNS_ADMIN, if set.
/var/opt/oracle directory.
$ORACLE_HOME/network/admin.
If your files are not in the default directory, use the TNS_ADMIN environment variable in the startup files of all network users to specify a different location:
For the C shell, enter:
% setenv TNS_ADMIN directory_name
For Bourne or Korn shell, enter:
$ TNS_ADMIN=directory_path $ export TNS_ADMIN
For each system level configuration file, users may have a corresponding local private configuration file (stored in the user's home directory). The settings in the private file override the settings in the system level file. The private configuration file for sqlnet.ora is $HOME/.sqlnet.ora. The private configuration file for tnsnames.ora is $HOME/.tnsnames.ora. Syntax for these files is identical to that of the corresponding system files.
Examples of the cman.ora, listner.ora, names.ora, sqlnet.ora, and tnsnames.ora configuration files are located in $ORACLE_HOME/network/admin/samples.
Net8 provides support for various network protocols and naming methods. They are linked into particular executables and provide the interface between network protocols and Net8. To display installed Net8 protocols, enter:
$ adapters
To display adapters linked with a specific executable, enter:
$ adapters executable
For example, the following command displays the Net8 protocols linked with the oracle executable:
$ adapters oracle Net8 Protocol Adapters linked with oracle are: BEQ Protocol Adapter IPC Protocol Adapter TCP/IP Protocol Adapter RAW Protocol Adapter Net8 Naming Adapters linked with oracle are: Oracle TNS Naming Adapter Oracle Naming Adapter Oracle Advanced Security/Networking Security products linked with oracle are:
For information on the Oracle Connection Manager, see the Net8 Administrator's Guide.
For information on the Multi-Threaded Server, see the Net8 Administrator's Guide and Oracle8i Administrator's Guide.
For information on Oracle Names, see the Net8 Administrator's Guide.
Oracle Java Runtime Environment is installed with Net8 Assistant
($ORACLE_HOME/bin/netasst). When the Net8 Assistant command script is executed, the JAVA command script supplied with JRE 1.1.6.2 is called explicitly, regardless of other Java installations on the system.
The supported protocols for Net8 version 8.1.6 on Solaris are BEQ protocol, IPC protocol, RAW protocol, TCP/IP protocol, SPX/IPX protocol, APPC/LU6.2 protocol.
Before installing the TCP/IP, APPC/LU6.2, or SPX/IPX protocols, the appropriate operating system software must be installed and configured. Refer to Oracle8i Installation Guide for Sun SPARC Solaris for requirements details. The BEQ and IPC Net8 protocols do not have any specific operating system requirements.
The IPC, TCP/IP, APPC/LU6.2, and SPX/IPX Net8 protocols each have a protocol-specific ADDRESS specification that is used for Net8 configuration files and for the MTS_LISTENER_ADDRESS database initialization parameter in the initsid.ora file. See the ADDRESS specification heading under each protocol section in this chapter for details.
Table 5-2 shows a summary of ADDRESS specifications for each protocol.
The BEQ protocol is both a communications mechanism and a process-spawning mechanism. It requires that the client and server be on the same machine. If a net service name is not specified, either directly by the user on the command line or the Login screen or indirectly through an environment variable such as TWO_TASK, then the BEQ protocol is used. In which case, a dedicated server will always be used, and the multi-threaded server is never used. This dedicated server is started automatically by the BEQ protocol, which waits for the server process to start and attach to an existing SGA. If the startup of the server process is successful, the BEQ protocol then provides inter-process communication via UNIX pipes.
An important feature of the BEQ protocol is that no listener is required for its operation, since the protocol is linked into the client tools and directly starts its own server process with no outside interaction. However, the BEQ protocol can only be used when the client program and Oracle8i reside on the same machine. The BEQ protocol is always installed and always linked to all client tools and to the Oracle8i server.
The BEQ protocol connection parameters are part of the ADDRESS keyword-value pair. You can enter the parameters in any order.
(ADDRESS =(PROTOCOL = BEQ) (PROGRAM = ORACLE_HOME/bin/oracle) (ARGV0 = oracleORACLE_SID) (ARGS = '(DESCRIPTION=(LOCAL=YES)(ADDRESS=(PROTOCOL=BEQ)))') (ENVS = 'ORACLE_HOME=ORACLE_HOME,ORACLE_SID=ORACLE_SID'))
Syntax for BEQ protocol connection parameters is described in Table 5-3.
The following is an example of a BEQ ADDRESS:
(ADDRESS =(PROTOCOL = BEQ) (PROGRAM = /u01/app/oracle/product/8.1.6/bin/oracle) (ARGV0 = oracleV815) (ARGS = '(DESCRIPTION=(LOCAL=YES)(ADDRESS=(PROTOCOL=BEQ)))') (ENVS = 'ORACLE_HOME=/u01/app/oracle/product/8.1.6,ORACLE_SID=V815'))
The ADDRESS is commonly part of a larger construct such as a connect descriptor or configuration file.
The IPC protocol is similar to the BEQ protocol in that it can only be used when the client program and the Oracle8i server reside on the same machine. The IPC protocol differs from the BEQ protocol in that it can be used with dedicated server and multi-threaded server configurations. The IPC protocol requires a listener for its operation. The IPC protocol is always installed and always linked to all client tools and to Oracle8i.
For the IPC protocol, the location of the UNIX Domain Socket (IPC) file on UNIX systems changed after Oracle7 r7.1. Thus, if you have Oracle7 r7.1 installed on the same machine as Oracle8i and you attempt to make an IPC connection between the two instances, the connection may fail. The solution to this problem is to make a symbolic link between the directory where the IPC file used to be (/var/tmp/o) and where it now resides (/var/tmp/.oracle).
The IPC protocol connection parameters are part of the ADDRESS keyword-value pair. You can enter the parameters in any order.
(ADDRESS=(PROTOCOL=IPC) (KEY=key))
Syntax for IPC protocol connection parameters is described in Table 5-4.
|
PROTOCOL |
Specifies that the IPC protocol is to be used |
|
KEY |
Service name of database or database identifier (ORACLE_SID). |
The following is an example of an IPC ADDRESS:
(ADDRESS=(PROTOCOL=IPC) (KEY=PROD))
The ADDRESS is commonly part of a larger construct such as a connect descriptor or configuration file.
When data is transferred between a client and a server, Net8 adds its own header information to every packet (a block of information sent over the network). Through the Raw Transport feature, Net8 can now minimize header information on each packet going over the network.
After the connection is established, two types of information flow over the network: data and break handling. The connection packets need the Net8 header information to establish the connection correctly. However, after the connection is established, all data packets are stripped of their Net8 header information and passed directly to the operating system, bypassing Net8's network and protocol layers. The performance of the connection is increased because of fewer protocol stack layers for the data to flow through and fewer bytes that are transmitted over the network.
This feature is transparently turned on when it is appropriate. That is, if no existing features require that header information be transmitted, the headers are stripped off. For example, encryption and authentication require certain information to be sent along with each packet of information, so Raw Transport would not be enabled.
This feature requires no configuration. Net8 determines if the conditions are met and then transparently switches to Raw Transport mode.
Oracle Corporation recommends that you reserve a port for your listener in the /etc/services file of each node on the network that defines the listener port. The port is commonly 1521. The entry list and the listener name and the port number; for example:
listener 1521/tcp
where listener is the name of the listener, as defined in listener.ora.
Reserve more than one port to start more than one listener.
The TCP/IP protocol connection parameters are part of the ADDRESS keyword-value pair. You can enter the three parameters in any order.
(ADDRESS=(PROTOCOL=TCP) (HOST=hostname) (PORT=port_id))
Syntax for TCP/IP protocol connection parameters is described in Table 5-5.
Following is an example of the TCP/IP ADDRESS specifying a client on the MADRID host:
(ADDRESS=(PROTOCOL=TCP) (HOST=MADRID) (PORT=1521))
The last field could be specified by name, for example, (PORT=listener). The ADDRESS is commonly part of a larger construct such as a connect descriptor or configuration file.
Oracle SPX/IPX protocol support provides a transparent, two-task communications interface between Oracle8i and client applications running on DOS, UNIX, OS/2, or Novell Netware OS.
A client uses a name and translates the name into an SPX address to identify a server and communicate with it. The netware bindery is a directory service that provides the translation mechanism. When a server is registered with the bindery, it periodically notifies the bindery of its address. This is done using the Server Advertising Protocol (SAP).
The server broadcasts a SAP packet in an IPX datagram every 60 seconds. This SAP packet contains all relevant addressing information. Any client can then query its nearest server for the address of the required server.
The Oracle SPX/IPX protocol broadcasts using the ntisbsdm broadcast daemon in $ORACLE_HOME/bin. The ntspxctl utility starts and stops ntisbsdm.
The ntspxctl utility contains functions to register and remove names, and to query a bindery. It can also be used to stop and start the broadcast daemon. (The listener automatically uses the daemon to register service names in use.)
Example 5-4 demonstrates several uses of the ntspxctl utility.
The ntspxctl utility reads commands from the command line. If parameters are missing, it prompts for them.
To start ntspxctl, enter:
$ ntspxctl
Output similar to the following is displayed:
ntspxctl: Version 2.0.12.1 - on Fri Jul 3 11:43:50 1998
To start the broadcast daemon, enter:
ntspxctl> startup
Output similar to the following is displayed:
ntisbsdm started at Fri Jul 3 11:43:47 1998
A system message is displayed if the daemon has already been started.
Startup of the broadcast daemon should be automated, so it is always started when the machine is started. Automate daemon startup by adding an entry to the /etc/inittab file. For example, to start the ntisbsdm on system startup add the following line to /etc/inittab:
ntspxctl:2:once:/u/oracle/bin/ntisbsdm &
where /u/oracle is the full path to $ORACLE_HOME.
To register a name for testing, enter register and the server name. For example:
ntspxctl> register YYY
This creates a socket owned by ntisbsdm, and registers it.
A message similar to the following is displayed:
Name YYY successfully registered YYY address 00eee045:000000000001:4454
To check the status of ntisbsdm, enter:
ntspxctl> status
or
ntspxctl> summary
A message similar to the following is displayed:
ntisbsdm started at Fri Jul 3 11:43:47 1998 Tracing is off Pid: 14784 YYY
Table 5-6 shows the help command summary for the SPX/IPX protocol.
getname Command
The getname command asks the Novell system for names. It does not involve the broadcast daemon.
Enter:
getname name servicetype
A message similar to the following is displayed:
getname name servicetype (address number_of_hops)
The syntax for the getname command is explained in Table 5-7.
To see all possible names, enter:
getname * *
Example 5-5 shows names obtained using the getname command.
ntspxctl> getname YYY * YYY servertype x0103 address 00eee045:000000000001: 4465 hops 0000 ntspxctl> getname * 103 LSNR servertype x0103 address 00eee053:000000000001: 502c hops 0000 IBM6 servertype x0103 address 00eee058:000000000001: 507f hops 0000 DESK servertype x0004 address 00eee055:000000000001: 5451 hops 0000 DESK servertype x0107 address 00eee055:000000000001: 5104 hops 0000 CXY4 servertype x009e address 00eee055:000000000001: 5063 hops 0000 IBM2 servertype x0004 address 00eee057:000000000001: 5451 hops 0000
To stop ntisbsdm, enter:
ntspxctl> shutdown
The daemon will not be stopped if names are still registered. A message similar to the following is displayed:
1 names are registered ntisbsdm not stopped
To remove a name, enter remove and the name. Following is an example for the name YYY:
ntspxctl> remove YYY
A message similar to the following is displayed:
Name xxx removed. ntspxctl> shutdown ntisbsdm stopped
To force a stop, enter:
ntspxctl> shutdown force
A message similar to the following is displayed:
ntisbsdm stopped
After the SPX/IPX protocol and Oracle SPX/IPX protocol are installed on your system, you can use the SPX/IPX parameters with the TNS connect descriptors to identify SPX/IPX community nodes.
The SPX/IPX protocol parameters are part of the ADDRESS keyword-value pairs.
(ADDRESS=(PROTOCOL=SPX) (SERVICE=servicename))
Table 5-8 explains the syntax for the SPX/IPX protocol connection.
Example 5-6 shows an SPX/IPX ADDRESS specifying service MAILDB1 on a remote server.
(ADDRESS=(PROTOCOL=SPX) (SERVICE=MAILDB1))
This ADDRESS is commonly part of a larger construct such as a connect descriptor or configuration file.
The Oracle APPC/LU6.2 protocol is available on networks that use LU6.2 services for communication between Oracle programs. For example, APPC/LU6.2 allows TNS applications to use API as a standard interface.

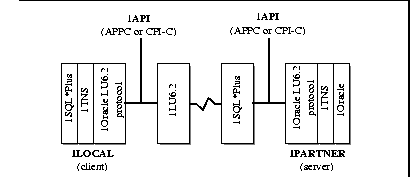

Figure 5-1 shows the communication layers between Oracle programs using the LU6.2 communications services and the Oracle APPC/LU6.2 protocol:
Solaris 2.x does not support the generic listener. To bring up the listener on the server side, run the ntllsnr command.
ntllsnr start|stop -l luname -t tpname -m modename
Syntax for the ntllsnr command is explained in Table 5-9.
The APPC/LU6.2 protocol parameters are defined in a connect descriptor for each node. Each connect descriptor contains several keyword=value pairs. The APPC/LU6.2-specific keywords can be entered in any order within the connect descriptor.
(ADDRESS=(PROTOCOL=LU62) (TP_NAME=tpname) (LU_NAME=luname) (MODE=modename) (PLU=partner_lu_name))
The syntax for the APPC/LU6.2 protocol connection is described in Table 5-10.
For details on configuring the NIS Naming Support, see the Net8 Administrator's Guide.
The Oracle Intelligent Agent requires no configuration, unless you want to integrate it with a Simple Network Management Protocol (SNMP) system (see "Configuring Oracle Intelligent Agent for Oracle SNMP".)
The executable oratclsh is provided for debugging your Tcl scripts. Before executing oratclsh, set the environment variable TCL_LIBRARY to point to $ORACLE_HOME/network/agent/tcl.
Although Oracle Intelligent Agent does not require Simple Network Management Protocol (SNMP) to work, Oracle SNMP support can be configured before starting the Intelligent Agent. Note that all the configuration files for the following steps are located in the $ORACLE_HOME/network/snmp/peer directory.
In the CONFIG.master file, make the following change:
MANAGER.
ipaddr field, coded as 130.35.10.210, to the IP address or hostname of the machine where you want SNMP trap messages sent.
You can also make other changes to the CONFIG.master file as documented within the file.
where hostname_or_IP_address represents the local machine's IP address.
CONFIG.encap file, you can optionally modify the port number, which is set to 1161 in the default file. If you modify the port number, you must also modify the port number for NEW_SNMPD_PORT in the start_peer script.
NEW_SNMPD_PORT is the port on which the snmpd agent (the native Sun SPARC Solaris SNMP agent) listens. Make sure this is the same port as specified in the CONFIG.encap file. NEW_TRAPD_PORT is the PEER encapsulator port to which the snmpd agent sends traps.
NEW_SNMPD_PORT and NEW_TRAPD_PORT in the start_peer script must have different port numbers. You may also modify the
NEW_TRAPD_PORT port number.
The start_peer script contains a line like the following:
SNMPD = snmpd_executable_path
If the snmpd executable on your system is not in the location indicated by the start_peer script, edit snmpd_executable_path to the correct location of the snmpd executable.
Perform the following steps to start the SNMP components:
master_peer, encap_peer, and snmpd, are not running:
$ ps -aef | grep peer$ ps -aef | grep snmp
If any of the components are running, log in as the root user and use the kill command to terminate the processes before proceeding.
root user, run the start_peer script to start the PEER master agent, PEER encapsulator, and native Sun SPARC Solaris SNMP agent:
# ps -aef | grep peer # ps -aef | grep snmp
Configuration and startup of the database subagent (the Oracle Intelligent Agent) is described in the Oracle Enterprise Manager Configuration Guide.
.bak Files
During Oracle Advanced Security installation, three.bak files are created: naeet.o.bak, naect.o.bak, and naedhs.o.bak. They are located in $ORACLE_HOME/lib. These files are required for relinking during Oracle Advanced Security de-install and should not be deleted.
For more information about details on configuring Security and Single Sign-On, see the Oracle Advanced Security Administrator's Guide.
For details on configuring DCE Integration, see the Oracle Advanced Security Administrator's Guide.
|
